PRODUCT LINEUP · INDUSTRIAL TERMINALS
Rugged Industrial Terminals
Configuration Overview
Complete configuration tables for Android / Windows dual-OS industrial tablets, handheld terminals, rugged notebooks and mini industrial PCs — covering model specs, IP ratings and optional accessories, for product selection and pre-sales reference.
11
Product lines
63
Models
132
Configs
IP68
Max IP rating
03
ST8 Series
8" lightweight industrial tablet 4 models · 10 configsAndroid· 3 models
| Model | OS | CPU | RAM/Storage | Weight | Dimensions | Display | Touch | Battery | Charging | Camera | 5G/4G | WiFi | GPS | Bluetooth | NFC | TF Card | Ports | IP Rating | Dock | Vehicle Dock | 2D Scanner | Fingerprint | UHF | High-precision GPS | Others |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

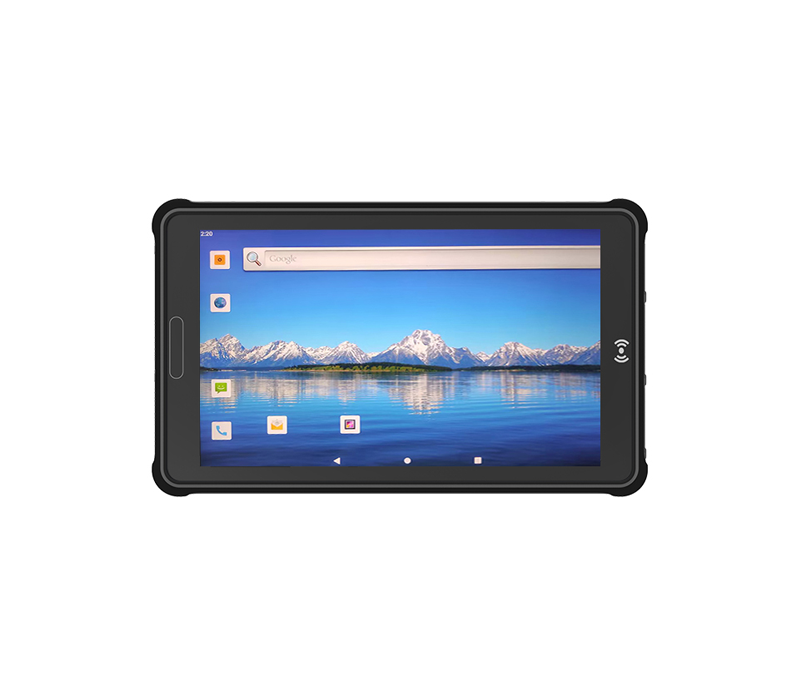

| ST8-A5 | Android 11 | MT8788 | 4GB/64GB6GB/128GB8GB/256GB | 570g | 225.6*134.6*13.3mm， (Package: 270*184*70mm) | LCD, 8in 1200*1920, 400nits(1000nits optional) | 10-point touch | 10000mAh | EU/US, DC 3.5 charging | 5M/13M | 4G LTE | Wi-Fi 5 (2.4/5.0) | GPS/， BEIDOU/， GLONASS | BT4.2 | 14443A14443B15693 | up to 1TB | USB2.0*2， Type-C/DC3.5/， headphone jack, mini-USB(RS232) | IP65 | STA11-03 | STA15-900/， STA03-01 | NLS-N1/， M1 | FAP-10， (ISO/PSB) | M-500， (M301) | UM960 | CHK173IK-IR， LF module |
| ST8-A7 | Android 13 | MT6789 | 8GB/256GB12GB6GB/128GB | 570g | 225.6*134.6*13.3mm， (Package: 270*184*70mm) | LCD, 8in 1200*1920, 400nits | 10-point touch | 10000mAh | EU/US, fast charging, DC 3.5 charging | 5M/13M | 4G LTE | Wi-Fi 5 (2.4/5.0) | GPS/， BEIDOU/， GLONASS | BT5.0 | 14443A14443B15693 | up to 1TB | USB2.0*2， Type-C/DC3.5/， headphone jack, mini-USB(RS232) | IP65 | STA11-03 | STA15-900/， STA03-01 | NLS-N1/， M1 | ZAZ-0A0 | M-500， (M301) | — | — |
| ST8-A8 | Android 15 | MT6877 | 8GB/256GB8GB/128GB16GB/512GB | 570g | 225.6*134.6*13.3mm， (Package: 270*184*70mm) | LCD, 8in 1200*1920, 400nits | 10-point touch | 10000mAh | EU/US, fast charging, DC 3.5 charging | 5M/13M | 5G | Wi-Fi 5 (2.4/5.0) | GPS/， BEIDOU/， GLONASS | BT5.2 | 14443A14443B15693 | up to 1TB | USB2.0*2， Type-C/DC3.5/， headphone jack, mini-USB(RS232) | IP65 | STA11-03 | STA15-900/， STA03-01 | NLS-N1/， M1 | ZAZ-0A0 | M-500， (M301) | — | — |
Windows· 1 models
| Model | OS | CPU | RAM/Storage | Weight | Dimensions | Display | Touch | Battery | Charging | Camera | 5G/4G | WiFi | GPS | Bluetooth | NFC | TF Card | Ports | IP Rating | Dock | Vehicle Dock | 2D Scanner | Fingerprint | UHF | High-precision GPS | Others |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

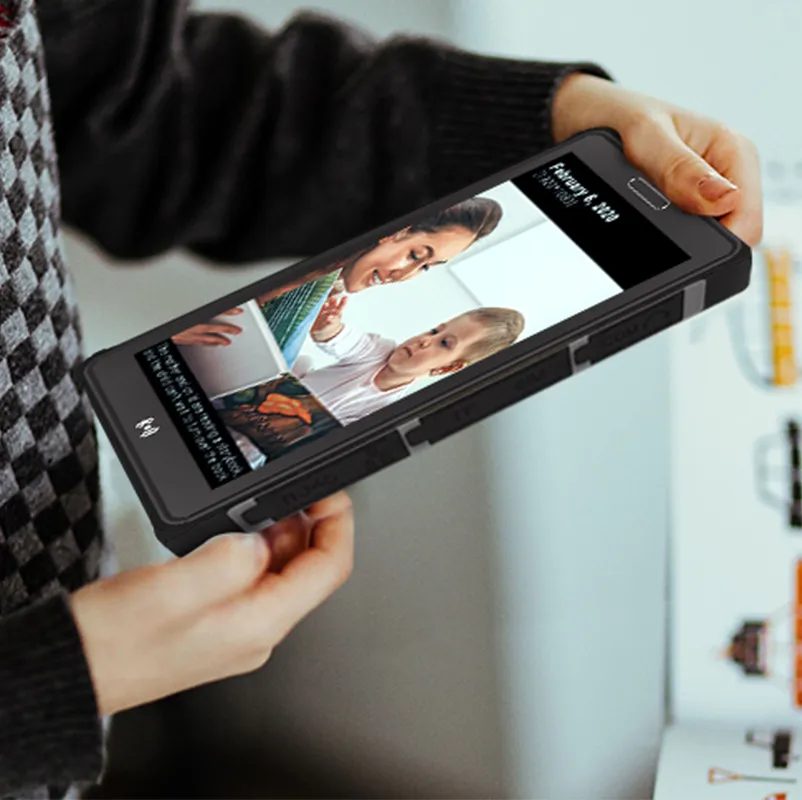

| ST8-W | Windows 10 | Z8350 | 4GB/64GB | 620g | 225.6*134.6*13.3mm， (Package: 270*184*70mm) | LCD, 8in 1200*1920, 400nits | 10-point touch | 10000mAh | EU/US, DC 3.5 charging | 2M/5M | 4G LTE | Wi-Fi 5 (2.4/5.0) | GPS/， BEIDOU/， GLONASS | BT4.0 | 14443A/B | not supported | USB3.0*2/USB2.0/DC3.5/headphone jack, HDMI, mini-USB(RS232) | IP65 | STA11-03 | STA15-900/， STA03-01 | NLS-N1/， M1 | FAP-10， (ISO/PSB) | M-500， (M301) | — | — |
02

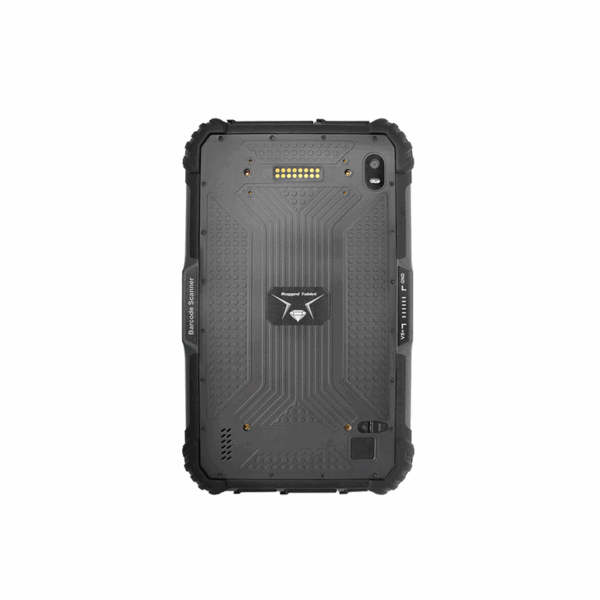

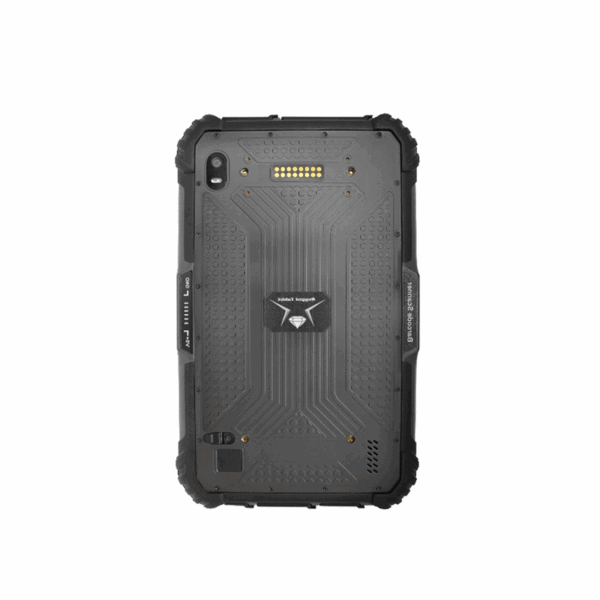

ST9 Series
8" portable industrial tablet 12 models · 25 configsAndroid· 9 models
| Model | OS | CPU | RAM/Storage | Weight | Dimensions | Display | Touch | Battery | Charging | Camera | 5G/4G | WiFi | GPS | Bluetooth | NFC | TF Card | Ports | IP Rating | Dock | Vehicle Dock | 2D Scanner | Fingerprint | UHF | High-precision GPS | Others |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

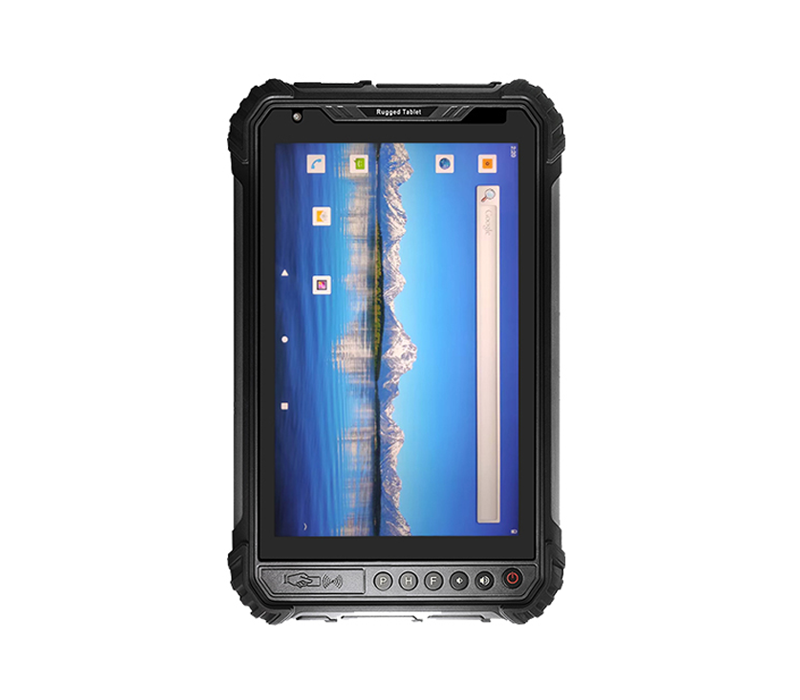

| ST9-A5 | Android 11 | MT8788 | 4GB/64GB6GB/128GB8GB/256GB | 630g | 236*144*17.4mm， (Package: 271*184*70mm) | LCD, 8in 1200*1920, 400nits(1000nits optional) | 10-point touch | 10000mAh | EU/US, DC 3.5 charging | 5M/13M | 4G LTE | Wi-Fi 5 (2.4/5.0) | GPS/BEIDOU/GLONASS | BT4.2 | 14443A14443B15693 | up to 1TB | USB2.0*2， Type-C/DC3.5/， headphone jack, mini-USB(RS232) | IP65 | STA09-01 | STA15-900 | NLS-N1/， M1 | ZAZ-0A0 | M-500， (M301) | UM960 | — |

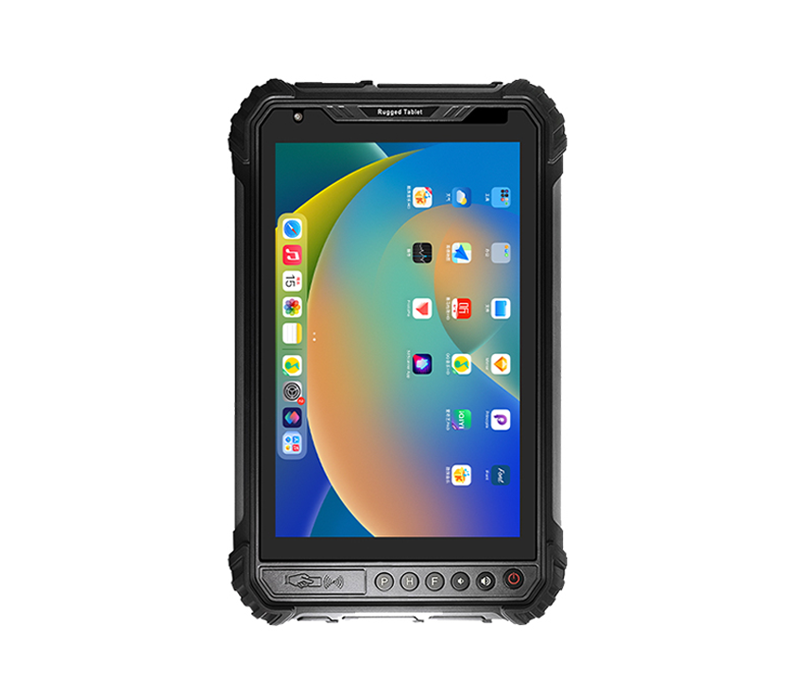

| ST9-A6 | Android 11 | MT8788 | 4GB/64GB6GB/128GB8GB/256GB | 630g | 236*144*17.4mm， (Package: 271*184*70mm) | LCD, 8in 800*1280, 1000nits | 10-point touch | 10000mAh | EU/US, DC 3.5 charging | 5M/21M | 4G LTE | Wi-Fi 5 (2.4/5.0) | GPS/BEIDOU/GLONASS | BT4.2 | 14443A14443B15693 | up to 1TB | USB2.0*2， Type-C/DC3.5/， headphone jack, mini-USB(RS232) | IP65 | STA09-01 | STA15-900 | NLS-N1/， M1 | ZAZ-0A0 | M-500， (M301) | UM960 | — |
| ST9-A7 | Android 13 | MT6789 | 8GB/256GB12GB6GB/128GB | 630g | 236*144*17.4mm， (Package: 271*184*70mm) | LCD, 8in 1200*1920, 400nits | 10-point touch | 10000mAh | EU/US, fast charging, DC 3.5 charging | 5M/13M | 4G LTE | Wi-Fi 5 (2.4/5.0) | GPS/BEIDOU/GLONASS | BT5.0 | 14443A14443B15693 | up to 1TB | USB2.0*2， Type-C/DC3.5/， headphone jack, mini-USB(RS232) | IP65 | STA09-01 | STA15-900 | NLS-N1/， M1 | ZAZ-0A0 | M-500， (M301) | — | ID card module |
| ST9-A71 | Android 16 | MT6789 | 4GB/64GB6GB/128GB | 630g | 236*144*17.4mm， (Package: 271*184*70mm) | LCD, 8in 1200*1920, 400nits | 10-point touch | 10000mAh | EU/US, fast charging, DC 3.5 charging | 8M/16M | 4G LTE | Wi-Fi 5 (2.4/5.0) | GPS/BEIDOU/GLONASS | BT5.2 | 14443A/B15693 | up to 1TB | USB2.0*2， Type-C/DC3.5/， headphone jack, HDMI, mini-USB(RS232) | IP65 | STA09-01 | STA15-900 | NLS-N1/， M1 | ZAZ-0A0 | M-500， (M301) | — | — |
| ST9-A8 | Android 15 | MT6877 | 8GB/256GB16GB/512GB | 630g | 236*144*17.4mm， (Package: 271*184*70mm) | LCD, 8in 1200*1920, 400nits | 10-point touch | 10000mAh | EU/US, DC 3.5 charging | 8M/16M | 5G | Wi-Fi 6 | GPS/BEIDOU/GLONASS | BT5.2 | 14443A/B15693 | supported | USB2.0*2， Type-C/DC3.5/， headphone jack, mini-USB(RS232) | IP65 | STA09-01 | STA15-900 | NLS-N1/， M1 | ZAZ-0A0 | M-500， (M301) | — | — |
| ST9-T | Android 10 | T7510 | 8GB/256GB | 630g | 236*144*17.4mm， (Package: 271*184*70mm) | LCD, 8in 1200*1920, 400nits | 10-point touch | 10000mAh | EU/US, DC 3.5 charging | 5M/13M | 5G | Wi-Fi 5 (2.4/5.0) | GPS/BEIDOU/GLONASS | BT5.0 | 14443A | supported | USB2.0*2， Type-C/DC3.5/， headphone jack, mini-USB(RS232) | IP65 | STA09-01 | STA15-900 | NLS-N1/， M1 | ZAZ-0A0 | M-500， (M301) | — | ID card module |
| ST9-T2 | Android 13 | T760 | 8GB/256GB16GB/512GB | 630g | 236*144*17.4mm， (Package: 271*184*70mm) | LCD, 8in 1200*1920, 400nits | 10-point touch | 10000mAh | EU/US, DC 3.5 charging | 5M/13M | 5G | Wi-Fi 5 (2.4/5.0) | GPS/BEIDOU/GLONASS | BT5.0 | 14443A | supported | USB2.0*2， Type-C/DC3.5/， headphone jack, mini-USB(RS232) | IP65 | STA09-01 | STA15-900 | NLS-N1/， M1 | ZAZ-0A0 | M-500， (M301) | — | — |

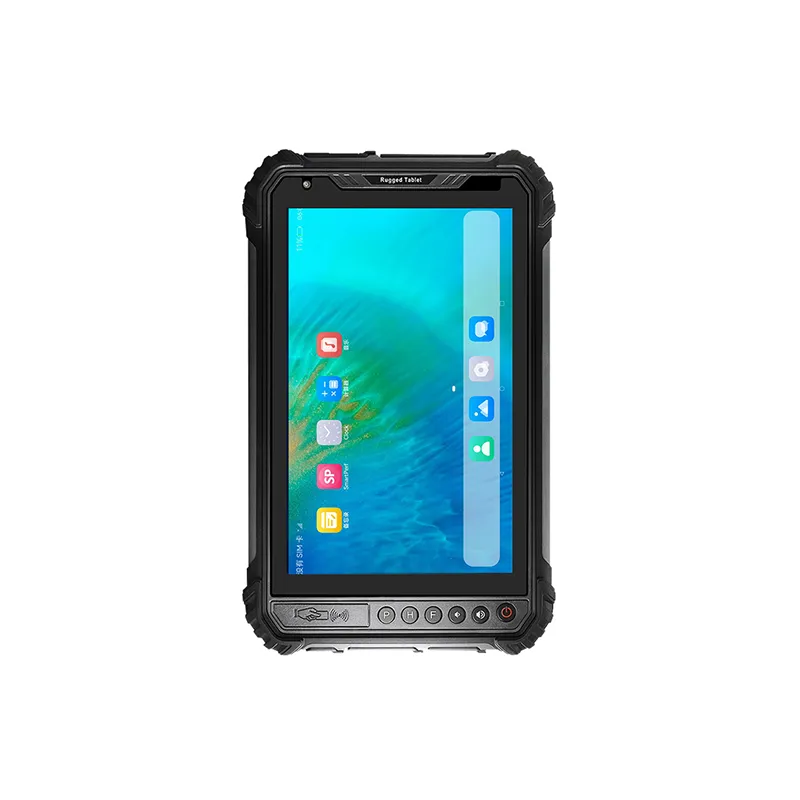

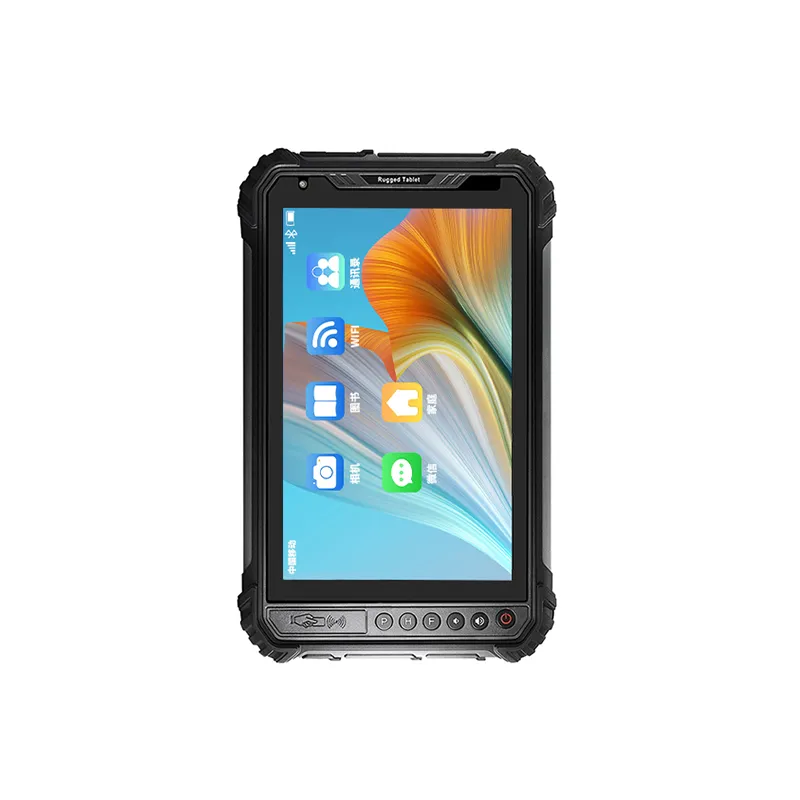

| ST9-R2 | Harmony 4.1， (Android 12 optional) | RK3588 | 8GB/256GB (SSD upgradeable)16GB | 700g | 236*144*17.4mm， (Package: 271*184*70mm) | LCD, 8in 1200*1920, 400nits | 10-point touch | 5000mAh | EU/US,Type-C fast charging, DC 4.0 charging | 5M/13M | 4G LTE | Wi-Fi 6 | GPS/BEIDOU/GLONASS | BT5.0 | 14443A/B15693 | supported | USB2.0/USB3.0*2/DC4.0/Type-C， headphone jack, HDMI, mini-USB(RS232) | IP65 | STA09-04 | STA15-901 | NLS-N1/， M1 | ZAZ-0A0 | M-500， (M301) | — | — |

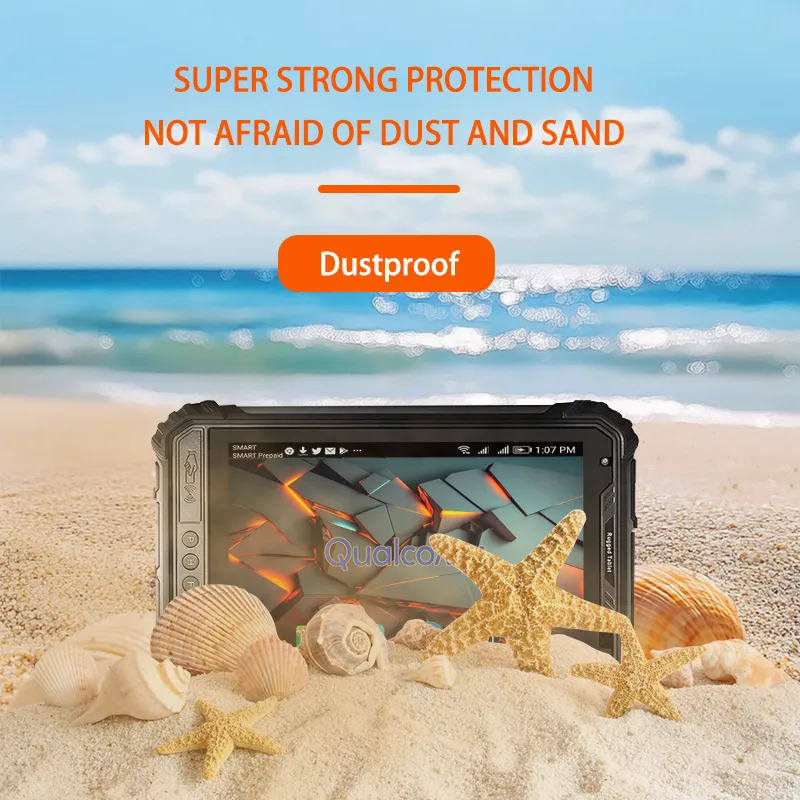

| ST9-Q3 | Android 13 | QCM4490 | 4GB/64GB8GB/128GB | 630g | 236*144*17.4mm， (Package: 271*184*70mm) | LCD, 8in 1200*1920, 400nits | 10-point touch | 10000mAh | EU/US, DC 3.5 charging | 8M/16M | 5G | Wi-Fi 6 | GPS/BEIDOU/Galileo/， GLONASS | BT5.2 | 14443A/B15693 | supported | USB2.0*2， Type-C/DC3.5/， headphone jack, mini-USB(RS232) | IP65 | STA09-01 | STA15-900 | NLS-N1/， M1 | ZAZ-0A0 | M-500， (M301) | — | — |
Windows· 3 models
| Model | OS | CPU | RAM/Storage | Weight | Dimensions | Display | Touch | Battery | Charging | Camera | 5G/4G | WiFi | GPS | Bluetooth | NFC | TF Card | Ports | IP Rating | Dock | Vehicle Dock | 2D Scanner | Fingerprint | UHF | High-precision GPS | Others |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

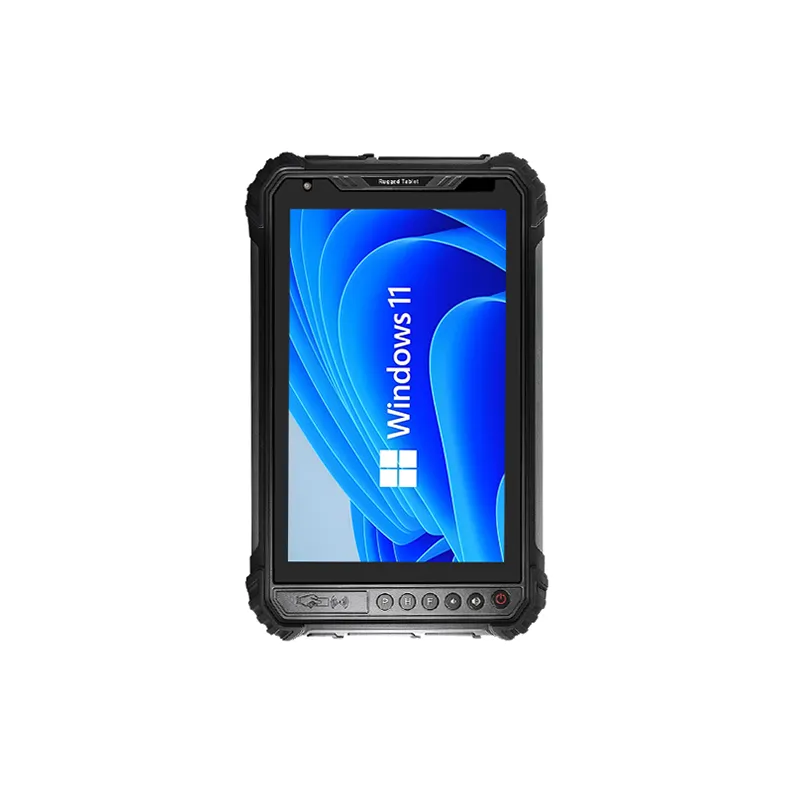

| ST9-M | Windows 10， (Windows 11 optional) | I5-8200Y， (I7-8500Y optional) | 8GB/256GB16GB/512GB | 700g | 236*144*17.4mm， (Package: 271*184*70mm) | LCD, 8in 1200*1920, 400nits(1000nits optional) | 10-point touch | 5000mAh | EU/US, DC 4.0 charging | 5M/13M | 4G LTE | Wi-Fi 5 (2.4/5.0) | GPS/BEIDOU/GLONASS | BT4.2 | 14443A | not supported | USB3.0*3/DC4.0/headphone jack, HDMI, mini-USB(RS232) | IP65 | STA09-04 | STA15-901 | NLS-N1/， M1 | Hello fingerprint | M-500， (M301) | TAU1201， (UM960 optional) | E22-400T33S， LoRa module |
| ST9-J | Windows 10， (Windows 11 optional) | N5100， (N4500 optional) | 4GB/64GB8GB/256GB | 700g | 236*144*17.4mm， (Package: 271*184*70mm) | LCD, 8in 1200*1920, 400nits(1000nits optional) | 10-point touch | 5000mAh | EU/US, DC 4.0 charging | 5M/13M | 4G LTE | Wi-Fi 5 (2.4/5.0) | GPS/BEIDOU/GLONASS | BT4.2 | 14443A | not supported | USB3.0*3/DC4.0/headphone jack, HDMI, mini-USB(RS232) | IP65 | STA09-04 | STA15-901 | NLS-N1/， M1 | Hello fingerprint | M-500， (M301) | TAU1201， (UM960 optional) | MS88SFBlong-range Bluetooth module |
| ST9-W | Windows 10 | Z8350 | 4GB/64GB | 670g | 236*144*17.4mm， (Package: 271*184*70mm) | LCD, 8in 1200*1920, 400nits | 10-point touch | 10000mAh | EU/US, DC 3.5 charging | 2M/5M | 4G LTE | Wi-Fi 5 (2.4/5.0) | GPS/BEIDOU/GLONASS | BT4.2 | 14443A | not supported | USB3.0*2/USB2.0/DC3.5/headphone jack, HDMI, mini-USB(RS232) | IP65 | STA09-01 | STA15-900 | NLS-N1/， M1 | Hello fingerprint | M-500， (M301) | — | — |
05
ST10 Series
10.1" industrial tablet (IP68) 4 models · 8 configs| Model | OS | CPU | RAM/Storage | Weight | Dimensions | Display | Touch | Battery | Charging | Camera | 5G/4G | WiFi | GPS | Bluetooth | NFC | TF Card | Ports | IP Rating | 2D Scanner |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ST10-A | Android 11 | MT6765 | 4GB/64GB6GB/128GB | 800g | 252*168*13.8mm， (Package: 284*210*67mm) | LCD, 10.1in 1200*1920, 400nits | 10-point touch | 10000mAh | Type-C 15W fast charging | 5M/13M | 4G LTE | Wi-Fi 5 (2.4/5.0) | GPS/， BEIDOU/， GLONASS | BT5.0 | 14443A/B15693 | up to 1TB | Type-C | IP68 | NLS-N1/， M1 |
| ST10-A2 | Android 14 | MT6877 | 8GB/256GB16GB/512GB | 800g | 252*168*13.8mm， (Package: 284*210*67mm) | LCD, 10.1in 1200*1920, 400nits | 10-point touch | 10000mAh | Type-C fast charging | 5M/13M | 5G | Wi-Fi 6 | GPS/， BEIDOU/， GLONASS | BT5.0 | 14443A/B15693 | up to 1TB | Type-C | IP68 | NLS-N1/， M1 |
| ST10-T | Android 13 | T616 | 4GB/64GB8GB/128GB | 800g | 252*168*13.8mm， (Package: 284*210*67mm) | LCD, 10.1in 1200*1920, 400nits | 10-point touch | 10000mAh | Type-C fast charging | 5M/13M | 4G LTE | Wi-Fi 5 (2.4/5.0) | GPS/， BEIDOU/， GLONASS | BT5.0 | 14443A/B15693 | up to 1TB | Type-C | IP68 | NLS-N1/， M1 |
| ST10-A1 | Android 16 | MT6769 | 6GB/64GB6GB/128GB | 800g | 252*168*13.8mm， (Package: 284*210*67mm) | LCD, 10.1in 1200*1920, 400nits | 10-point touch | 10000mAh | Type-C fast charging | 5M/13M | 4G LTE | Wi-Fi 5 (2.4/5.0) | GPS/， BEIDOU/， GLONASS | BT5.2 | 14443A/B15693 | up to 1TB | Type-C | IP68 | NLS-N1/， M1 |
01
ST11 Series
10.1" high-performance industrial tablet 13 models · 26 configsAndroid· 9 models
Android Spec Diagrams
ST11 Android architecture
Battery capacity conversion
Cellular 4G/5G
Camera config
WiFi config
Bluetooth config
Port layoutAndroid Model Diagrams
ST11-A7
ST11-A71
ST11-R2| Model | OS | CPU | RAM/Storage | Weight | Dimensions | Display | Touch | Battery | Charging | Camera | 5G/4G | WiFi | GPS | Bluetooth | NFC | TF Card | Ports | IP Rating | Dock | Vehicle Dock | Scanner | Fingerprint | UHF | High-precision GPS | Others |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ST11-A5 | Android 11 | MT8788 | 4GB/64GB6GB/128GB8GB/256GB | 1140g | 268.9*176.8*18mm， (Package: 297*212*76mm) | LCD, 10.1in 1200*1920,， 450nits(1000nits optional) | 10-point touch | Main battery 12000mAh + secondary battery 2400mAh | EU/US, DC 3.5 charging | 5M/13M | 4G LTE | Wi-Fi 5 (2.4/5.0) | GPS/， BEIDOU/GLONASS | BT4.2 | 14443A14443B15693 | up to 1TB | USB2.0/Type-C/DC3.5/headphone jack, RS232, RJ45, HDMI， (HDMI on 8GB+256GB only) | IP65 | STA11-03 | STA15-100/， STA03-01 | N4680/N1 | AFM60/， FAP10/， ZAZ-0A0， (fingerprint unlock) | M500， /M301 | UM960 | USB NFC module CHK372， ID card module EST-100M |
| ST11-A7 | Android 13 | MT6789 | 8GB/256GB12GB6GB/128GB | 1080g | 268.9*176.8*18mm， (Package: 297*212*76mm) | LCD, 10.1in 1200*1920, 450nits(1000nits optional) | 10-point touch | Main battery 12000mAh + secondary battery 2400mAh | EU/US,Type-C fast charging, DC 3.5 charging | 5M/13M， (8M/16M optional) | 4G LTE | Wi-Fi 5 (2.4/5.0) | GPS/， BEIDOU/GLONASS | BT5.0 | 14443A14443B15693 | up to 1TB | USB2.0/Type-C/DC3.5/headphone jack, RS232, RJ45 | IP65 | STA11-03 | STA15-100/， STA03-01 | N4680/N1 | AFM60/， ZAZ-0A0， (fingerprint unlock) | M500， /M301 | — | — |
| ST11-A71 | Android 16 | MT6789 | 4GB/64GB6GB/128GB | 1080g | 268.9*176.8*18mm， (Package: 297*212*76mm) | LCD, 10.1in 1200*1920, 450nits(1000nits optional) | 10-point touch | Main battery 12000mAh + secondary battery 2400mAh | EU/US,Type-C fast charging, DC 3.5 charging | 8M/16M | 4G LTE | Wi-Fi 5 (2.4/5.0) | GPS/， BEIDOU/GLONASS | BT5.2 | 14443A/B15693 | up to 1TB | USB2.0/Type-C/DC3.5/headphone jack, RS232, RJ45, HDMI | IP65 | STA11-03 | STA15-100/， STA03-01 | N4680/N1 | AFM60/， ZAZ-0A0， (fingerprint unlock) | M500， /M301 | — | — |

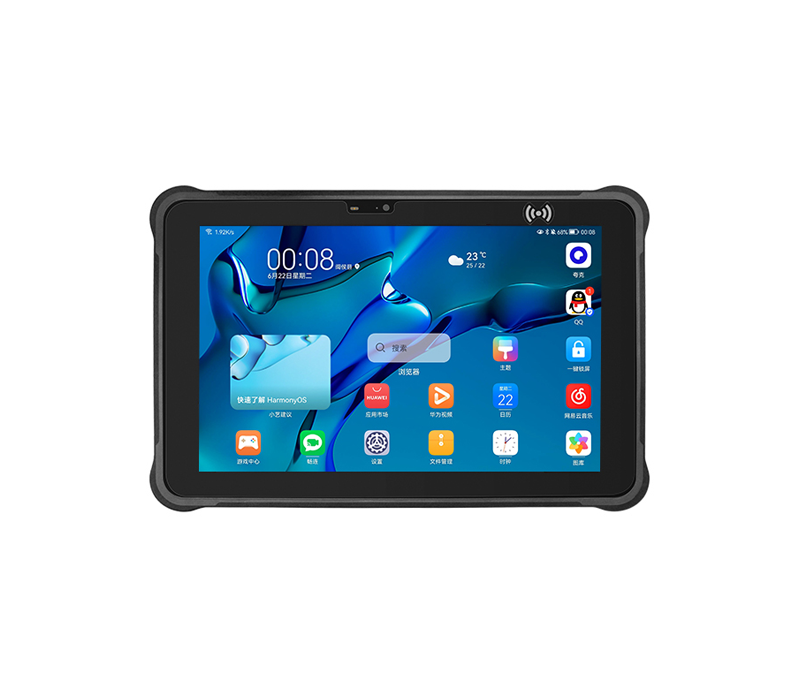

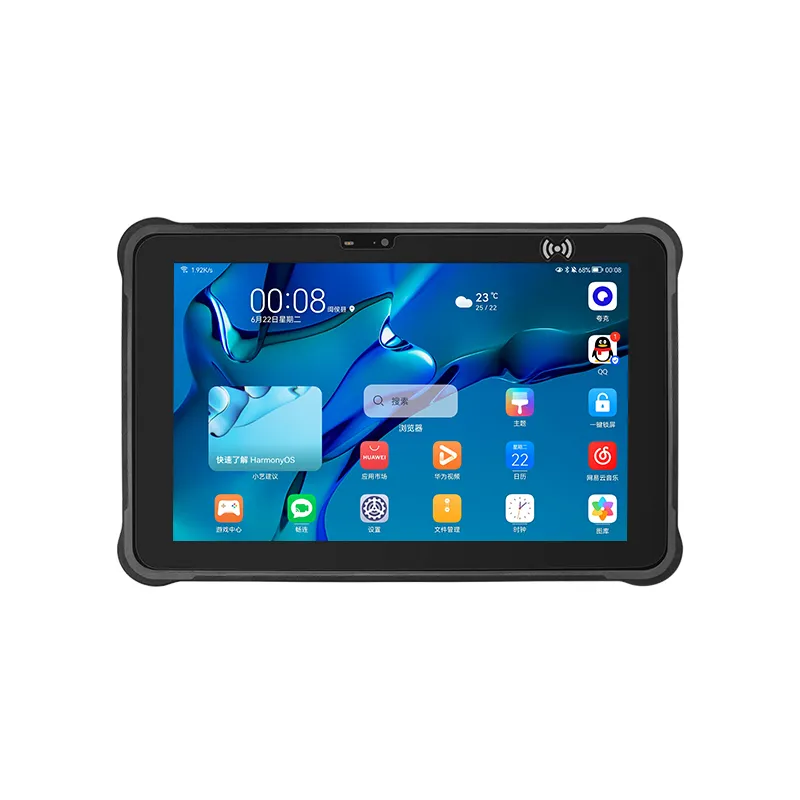

| ST11-A8 | Android 15 | MT6877 | 8GB/256GB16GB/512GB | 1116g | 268.9*176.8*18mm， (Package: 297*212*76mm) | LCD, 10.1in 1200*1920, 450nits | 10-point touch | Main battery 12000mAh + secondary battery 2400mAh | EU/US,Type-C fast charging, DC 3.5 charging | 8M/16M | 5G | Wi-Fi 6 | GPS/， BEIDOU/GLONASS | BT5.2 | 14443A/B15693 | up to 1TB | USB2.0/Type-C/DC3.5/headphone jack, RS232, RJ45 | IP65 | STA11-03 | STA15-100/， STA03-01 | N4680/N1 | AFM60/， ZAZ-0A0， (fingerprint unlock) | M500， /M301 | — | — |

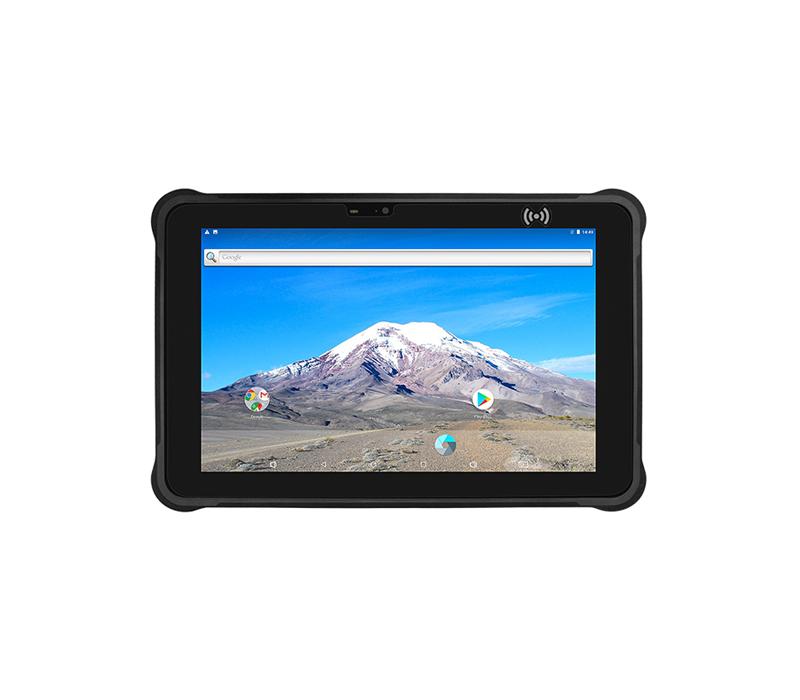

| ST11-R | Android 10 | RK3399 | 4GB/64GB | 1120g | 268.9*176.8*18mm， (Package: 297*212*76mm) | LCD, 10.1in 1200*1920, 450nits | 10-point touch | Main battery 12000mAh + secondary battery 2400mAh | EU/US, DC 3.5 charging | 5M/13M | 4G LTE | Wi-Fi 5 (2.4/5.0) | GPS/， BEIDOU/GLONASS | BT5.0 | 14443A/B | up to 1TB | USB2.0/USB3.0/micro-USB/DC3.5/headphone jack, HDMI, RS232, RJ45 | IP65 | STA11-03 | STA15-100/， STA03-01 | N4680/N1 | AFM60/， ZAZ-0A0， (fingerprint unlock) | M500， /M301 | — | — |

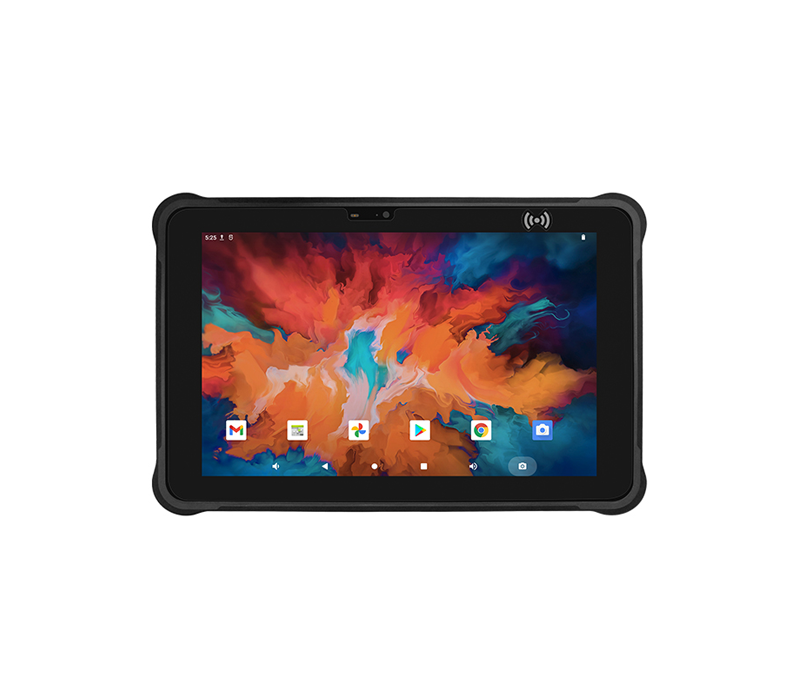

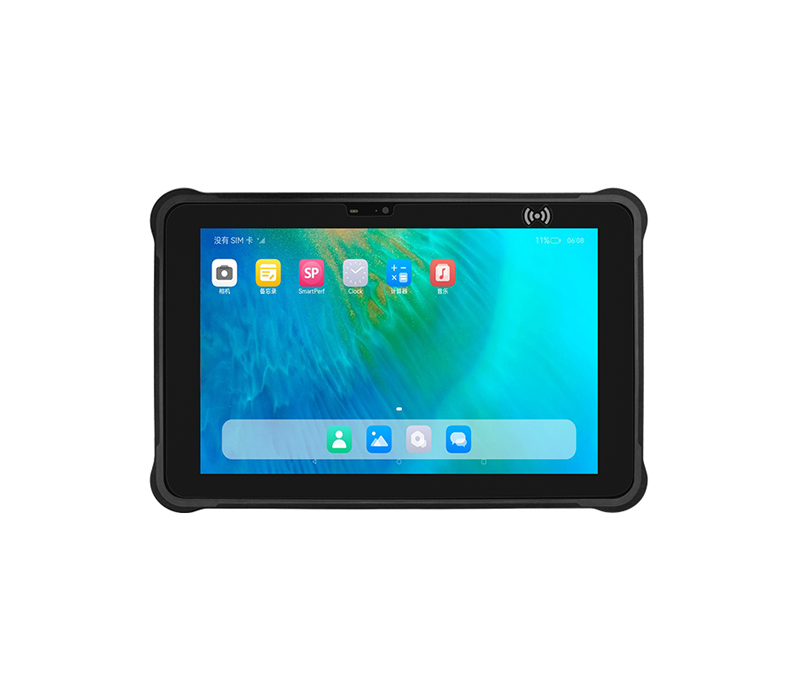

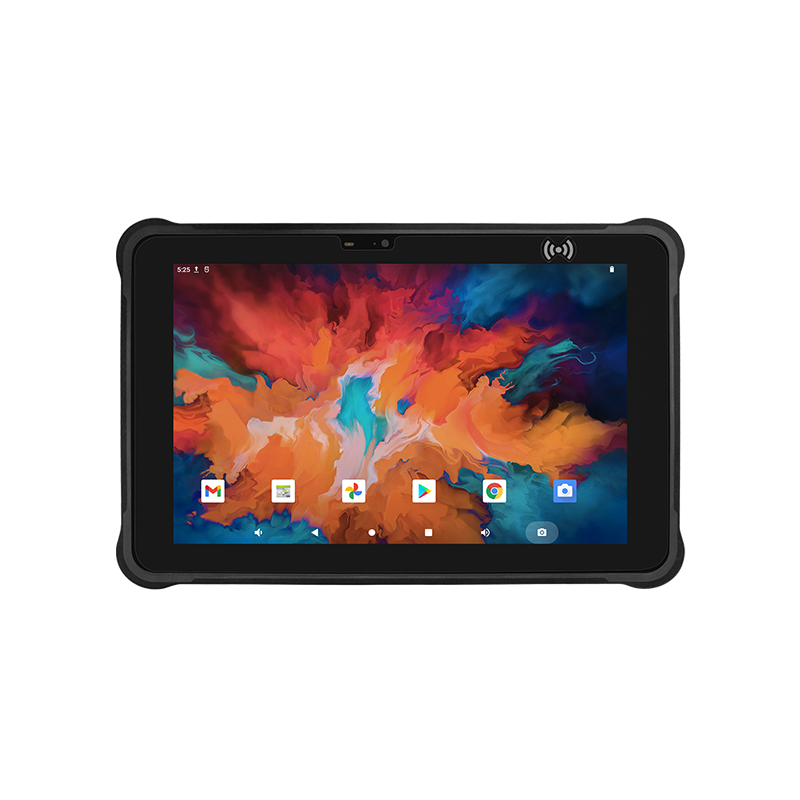

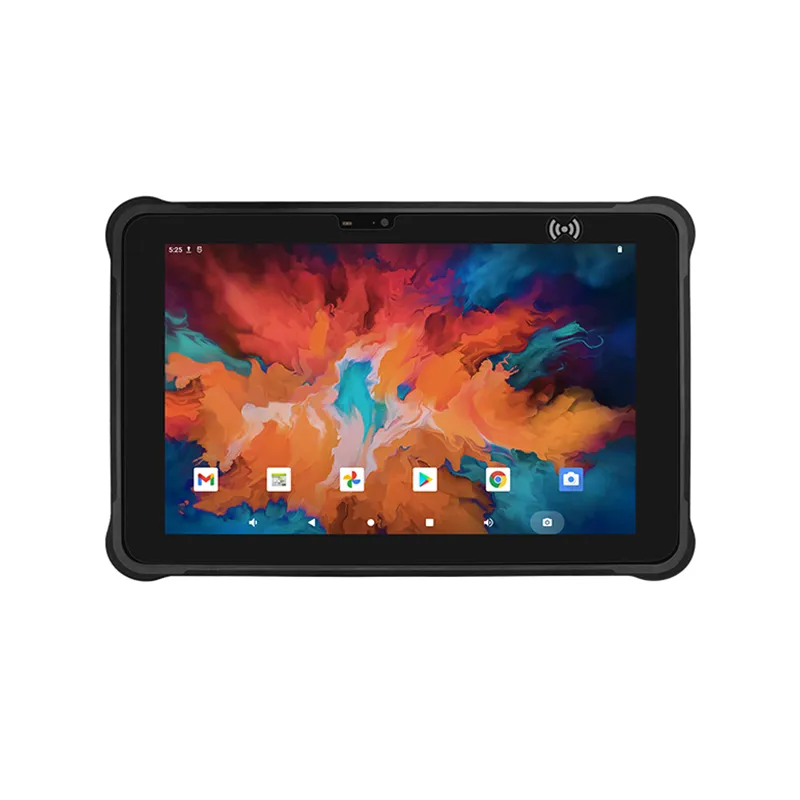

| ST11-R2 | Harmony 4.1， (Android 12 optional) | RK3588 | 8GB/256GB(SSD upgradeable)16GB | 1150g | 268.9*176.8*18mm， (Package: 297*212*76mm) | LCD, 10.1in 1200*1920, 450nits(1000nits optional) | 10-point touch | 6000mAh | EU/US,Type-C fast charging, DC 4.0 charging | 5M/13M | 4G LTE | Wi-Fi 6 | GPS/， BEIDOU/GLONASS | BT5.0 | 14443A/B15693 | up to 1TB | USB2.0/USB3.0/， Type-C/DC4.0/headphone jack, HDMI, RS232, RJ45 | IP65 | STA11-02 | STA15-101/， STA03-02 | N4680/N1 | AFM60/， ZAZ-0A0， (fingerprint unlock) | M500， /M301 | — | — |

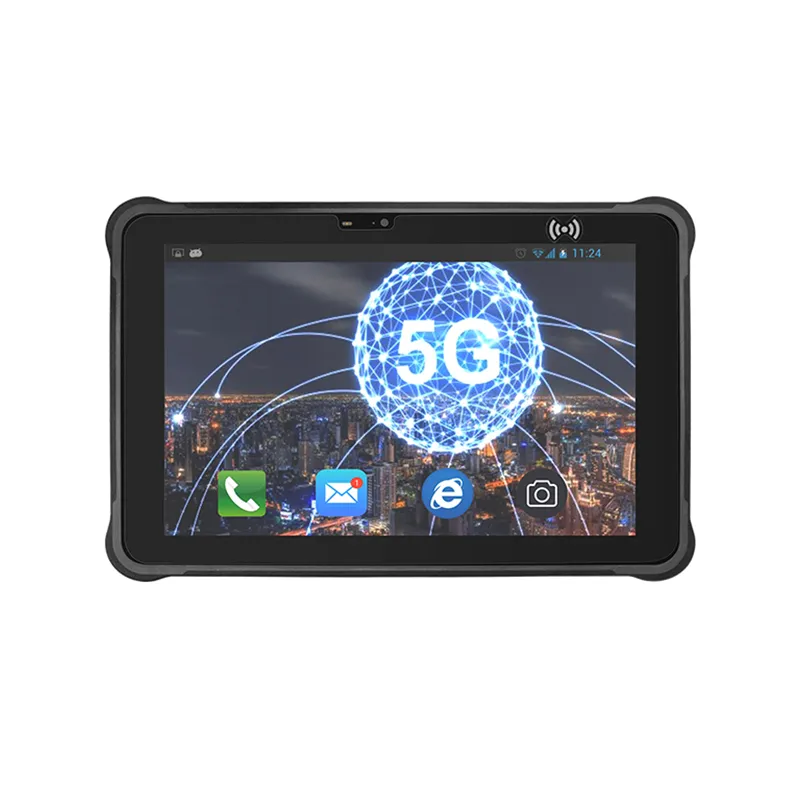

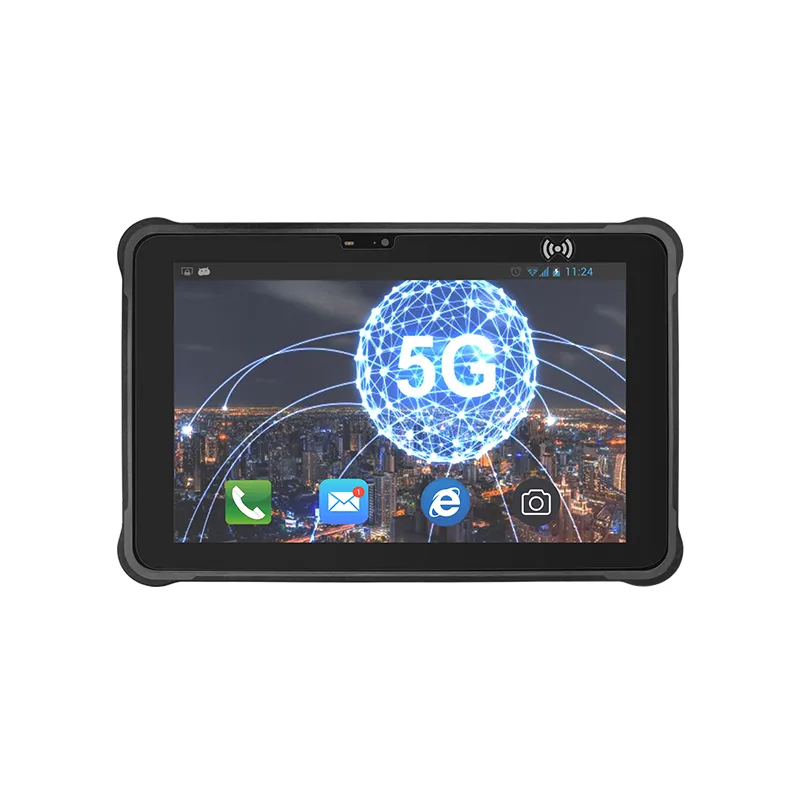

| ST11-T | Android 10 | T7510 | 8GB/256GB | 1090g | 268.9*176.8*18mm， (Package: 297*212*76mm) | LCD, 10.1in 1200*1920, 450nits | 10-point touch | 12000mAh | EU/US, DC 3.5 charging | 5M/13M | 5G | Wi-Fi 5 (2.4/5.0) | GPS/， BEIDOU/GLONASS | BT5.0 | 14443A | up to 1TB | USB2.0/Type-C/DC3.5/headphone jack, RS232, RJ45 | IP65 | STA11-03 | STA15-100/， STA03-01 | N4680/N1 | AFM60/， ZAZ-0A0， (fingerprint unlock) | M500/E710/， M301 | — | — |

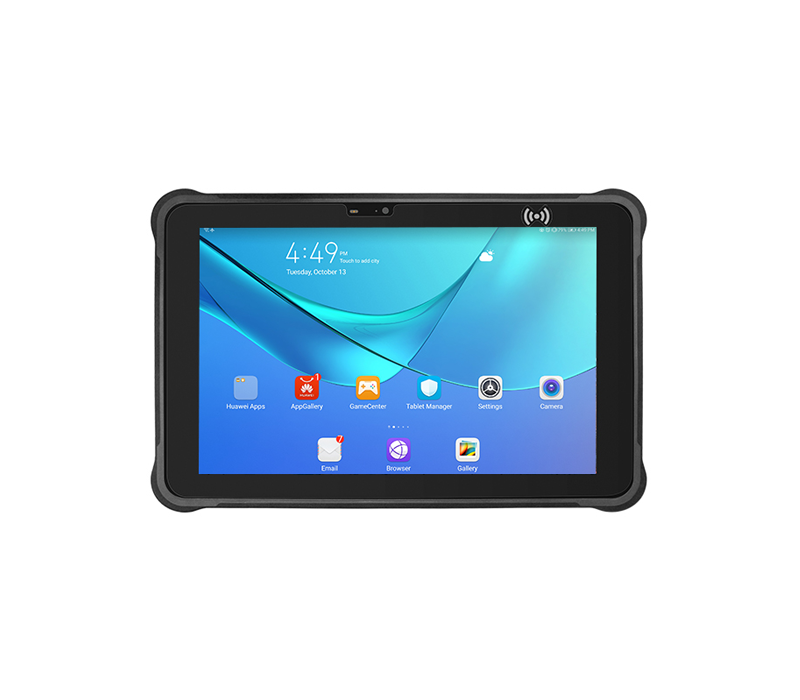

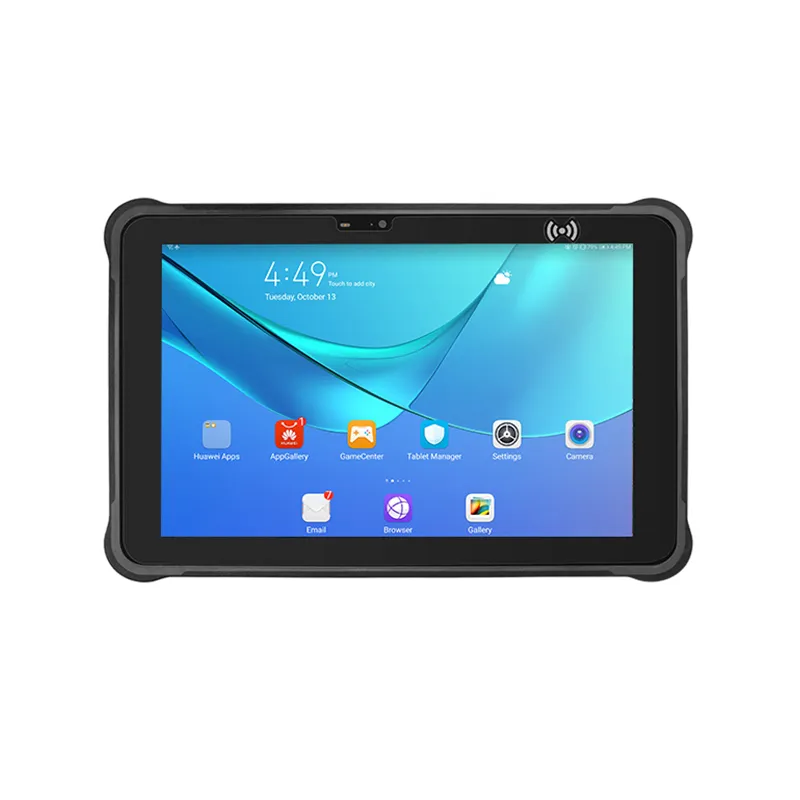

| ST11-T2 | Android 13 | T760 | 8GB/256GB16GB/512GB | 1090g | 268.9*176.8*18mm， (Package: 297*212*76mm) | LCD, 10.1in 1200*1920, 450nits | 10-point touch | 12000mAh | EU/US, DC 3.5 charging | 5M/13M | 5G | Wi-Fi 5 (2.4/5.0) | GPS/， BEIDOU/GLONASS | BT5.0 | 14443A | supported | USB2.0/Type-C/DC3.5/headphone jack, RS232, RJ45 | IP65 | STA11-03 | STA15-100/， STA03-01 | N4680/N1 | AFM60/， ZAZ-0A0， (fingerprint unlock) | M500， /M301 | — | — |
| ST11-Q3 | Android 13 | QCM4490 | 4GB/64GB8GB/128GB | 1140g | 268.9*176.8*18mm， (Package: 297*212*76mm) | LCD, 10.1in 1200*1920, 450nits | 10-point touch | Main battery 12000mAh + secondary battery 2400mAh | EU/US, DC 3.5 charging | 8M/16M | 5G | Wi-Fi 6 | GPS/， BEIDOU/Galileo/， GLONASS | BT5.2 | 14443A/B15693 | up to 1TB | USB2.0/Type-C/DC3.5/headphone jack, RS232, RJ45 | IP65 | STA11-03 | STA15-100/， STA03-01 | N4680/N1 | AFM60/， ZAZ-0A0， (fingerprint unlock) | M500， /M301 | — | — |
Windows· 4 models
Windows Spec Diagrams
ST11 Windows architecture
Processor specs
Battery power
Camera config
WiFi config
Bluetooth config
Port layoutWindows Model Diagrams
ST11-W
ST11-M
ST11-U| Model | OS | CPU | RAM/Storage | Weight | Dimensions | Display | Touch | Battery | Charging | Camera | 5G/4G | WiFi | GPS | Bluetooth | NFC | TF Card | Ports | IP Rating | Dock | Vehicle Dock | Scanner | Fingerprint | UHF | High-precision GPS | Others |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

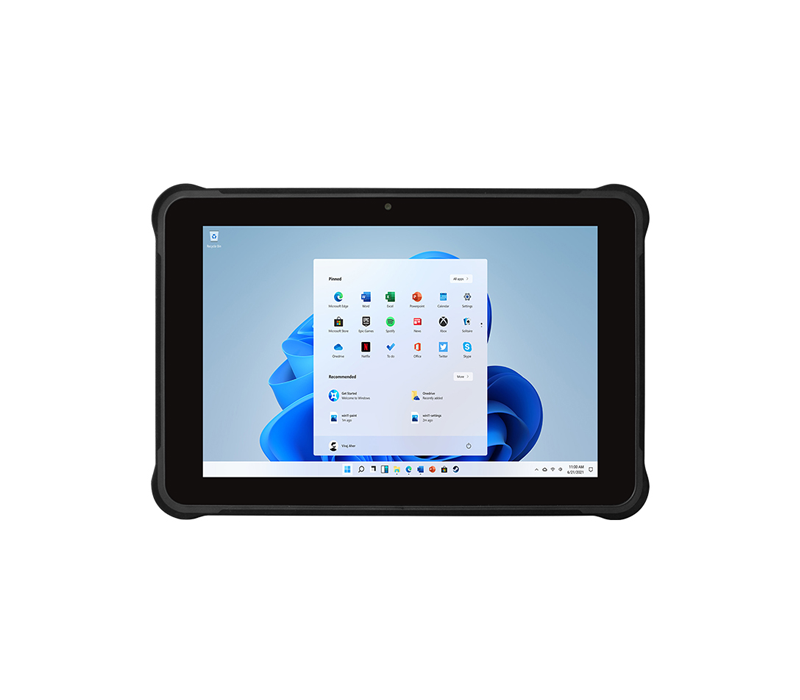

| ST11-U | Windows 11， (Windows 10 optional) | I5-1235U， (I7-1255U optional) | 8GB/256GB16GB/512GB32GB/1TB | 1190g | 268.9*176.8*18mm， (Package: 297*212*76mm) | LCD, 10.1in 1200*1920, 450nits(1000nits optional) | 10-point touch | 6000mAh | EU/US,Type-C fast charging, DC 4.0 charging | 5M/8M | 4G LTE | Wi-Fi 6 | GPS/， BEIDOU/GLONASS | BT5.2 | 14443A | customizable | USB3.2*2/Type-C/， DC4.0/headphone jack,HDMI, RS232, RJ45 | IP54 | STA11-U | STA15-107/， STA03-08 | N4680/N1 | AFM60/， Hello fingerprint module， (fingerprint unlock) | M500， /M301 | UM960 | — |
| ST11-M | Windows 10， (Windows 11 optional) | I5-8200Y， (I7-8500Y optional) | 8GB/256GB16GB/512GB | 1150g | 268.9*176.8*18mm， (Package: 297*212*76mm) | LCD, 10.1in 1200*1920, 450nits(1000nits optional) | 10-point touch | 6000mAh | EU/US, DC 4.0 charging | 5M/13M | 4G LTE | Wi-Fi 5 (2.4/5.0) | GPS/， BEIDOU/GLONASS | BT4.2 | 14443A | customizable | USB3.0*2/DC4.0/headphone jack,HDMI, RS232, RJ45 | IP65 | STA11-02 | STA15-101/， STA03-02 | N4680/N1 | AFM60/， Hello fingerprint module， (fingerprint unlock) | M500， /M301 | TAU1201， (UM960 optional) | FAP20 fingerprint module |
| ST11-J | Windows 10， (Windows 11 optional) | N5100， (N4500 optional) | 4GB/64GB8GB/256GB | 1150g | 268.9*176.8*18mm， (Package: 297*212*76mm) | LCD, 10.1in 1200*1920, 450nits(1000nits optional) | 10-point touch | 6000mAh | EU/US, DC 4.0 charging | 5M/13M | 4G LTE | Wi-Fi 5 (2.4/5.0) | GPS/， BEIDOU/GLONASS | BT4.2 | 14443A | customizable | USB3.0*2/DC4.0/headphone jack,HDMI, RS232, RJ45 | IP65 | STA11-02 | STA15-101/， STA03-02 | N4680/N1 | AFM60/， Hello fingerprint module， (fingerprint unlock) | M500， /M301 | TAU1201， (UM960 optional) | Iris capture module ZG iM20M/， CHK171MK LF module/HF10 fingerprint module/ID card module |

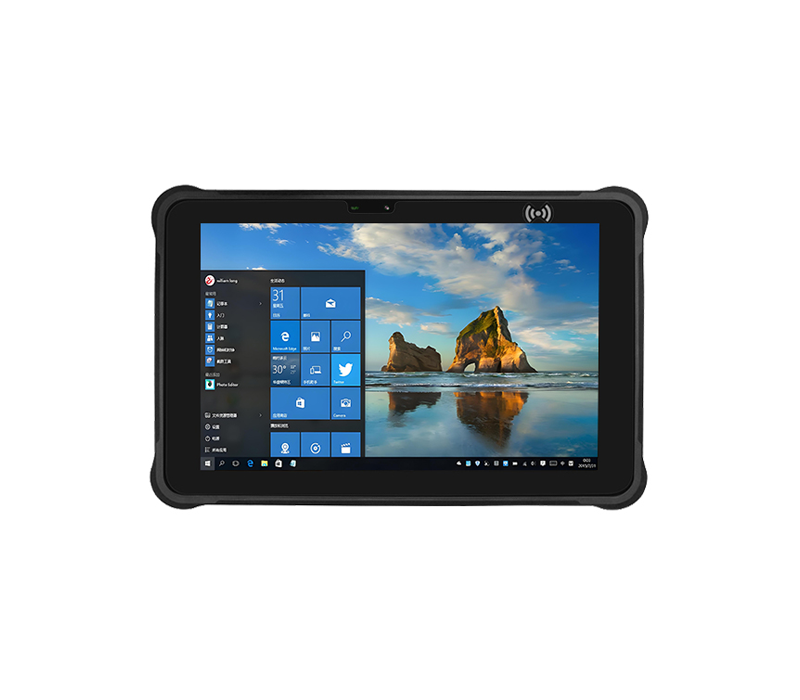

| ST11-W | Windows 10 | Z8350 | 4GB/64GB | 1140g | 268.9*176.8*18mm， (Package: 297*212*76mm) | LCD, 10.1in 1200*1920, 450nits | 10-point touch | Main battery 12000mAh + secondary battery 2550mAh | EU/US, DC 3.5 charging | 2M/5M | 4G LTE | Wi-Fi 5 (2.4/5.0) | GPS/， BEIDOU/GLONASS | BT4.2 | 14443A | up to 1TB | USB2.0/USB3.0/DC3.5/headphone jack, HDMI, RS232, RJ45 | IP65 | STA11-03 | STA15-100/， STA03-01 | N4680/N1 | AFM60/， Hello fingerprint module， (fingerprint unlock) | M500， /M301 | TAU1201 | ID card module |
06
ST101 Series
10.1" rugged tablet 2 models · 5 configsModel Diagrams
ST101-R3
ST101-UAndroid· 1 models
| Model | OS | CPU | RAM/Storage | Weight | Dimensions | Display | Touch | Battery | Charging | Camera | 5G/4G | WiFi | GPS | Bluetooth | NFC | TF Card | Ports | IP Rating | 2D Scanner |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ST101-R3 | Android 14 | RK3588 | 8GB/128GB16GB | 1250g | 267.8*176.5*25.7mm | LCD, 10.1in 1200*1920, 1000nits | 10-point touch | 8000mAh | Type-C 30W fast charging | 8M/16M | 4G LTE | Wi-Fi 6 | GPS/， BEIDOU/， GLONASS | BT5.2 | 14443A/B15693 | up to 1TB | USB3.0*2, Type-C, HDMI, DC4.0, headphone jack, RJ45*2 (100M+1G), RS232*2 (mini-USB+8pin aviation connector) | IP66 | N4680 |
Windows· 1 models
| Model | OS | CPU | RAM/Storage | Weight | Dimensions | Display | Touch | Battery | Charging | Camera | 5G/4G | WiFi | GPS | Bluetooth | NFC | TF Card | Ports | IP Rating | 2D Scanner |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ST101-U | Windows 11 Pro | I5-1235U， (I7-1255U optional) | 8GB/256GB16GB/512GB32GB/1TB | 1250g | 267.8*176.5*25.7mm | LCD, 10.1in 1200*1920, 450nits | 10-point touch | 8000mAh | Type-C fast charging | 5M/8M | 4G LTE | Wi-Fi 6 | GPS/， BEIDOU/， GLONASS | BT5.2 | 14443A | up to 1TB | USB3.2*2, Type-C, HDMI, DC4.0, headphone jack, RJ45 (1G),， RS232 (8pin aviation connector) | IP67 | N4680 |
04
ST13 Series
13.3" large-screen industrial tablet 8 models · 18 configsAndroid· 5 models
| Model | OS | CPU | RAM/Storage | Weight | Dimensions | Display | Touch | Battery | Charging | Camera | 5G/4G | WiFi | GPS | Bluetooth | NFC | TF Card | Ports | IP Rating | Dock | Vehicle Dock | 2D Scanner |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ST13-A7 | Android 13 | MT6789 | 8GB/256GB12GB6GB/128GB | 1450g | 330*205*19.5mm， (Package: 370*246*67mm) | LCD, 13.3in 1080*1920, 400nits | 10-point touch | 16000mAh | EU/US, Type-C fast charging, DC 4.0 charging | 5M/13M | 4G LTE | Wi-Fi 5 (2.4/5.0) | GPS/， BEIDOU/， GLONASS | BT5.0 | 14443A14443B15693 | up to 1TB | USB2.0/DC3.5/， headphone jack, Type-C, RJ45,， aviation connector*2， (RS232+blank) | IP65 | STA13-02 | — | N4680/， N1 |
| ST13-A71 | Android 16 | MT6789 | 6GB/128GB4GB/64GB | 1450g | 330*205*19.5mm， (Package: 370*246*67mm) | LCD, 13.3in 1080*1920, 400nits | 10-point touch | 16000mAh | EU/US, Type-C fast charging, DC 4.0 charging | 8M/16M | 4G LTE | Wi-Fi 5 (2.4/5.0) | GPS/， BEIDOU/， GLONASS | BT5.0 | 14443A/B15693 | up to 1TB | USB2.0/DC3.5/， headphone jack,Type-C,HDMI, RJ45, aviation connector*2， (RS232+blank) | IP65 | STA13-02 | — | N4680/， N1 |
| ST13-A8 | Android 15 | MT6877 | 8GB/256GB16GB/512GB | 1430g | 330*205*19.5mm， (Package: 370*246*67mm) | LCD, 13.3in 1080*1920, 400nits | 10-point touch | 16000mAh | EU/US, Type-C fast charging, DC 3.5 charging | 8M/16M | 5G | Wi-Fi 6 | GPS/， BEIDOU/， GLONASS | BT5.2 | 14443A/B15693 | supported | USB2.0/DC3.5/， headphone jack, Type-C, RJ45,， aviation connector*2， (RS232+blank) | IP65 | STA13-02 | — | N4680/， N1 |

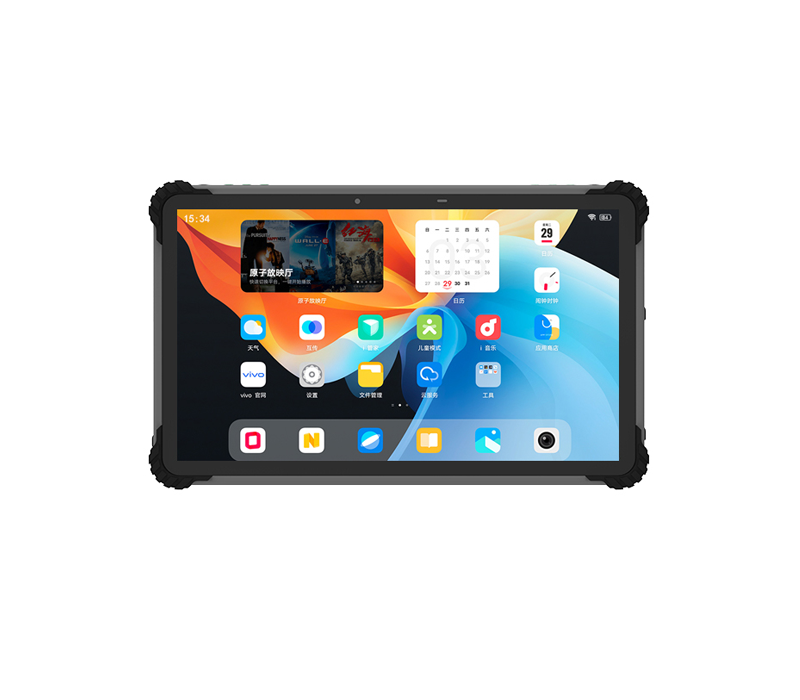

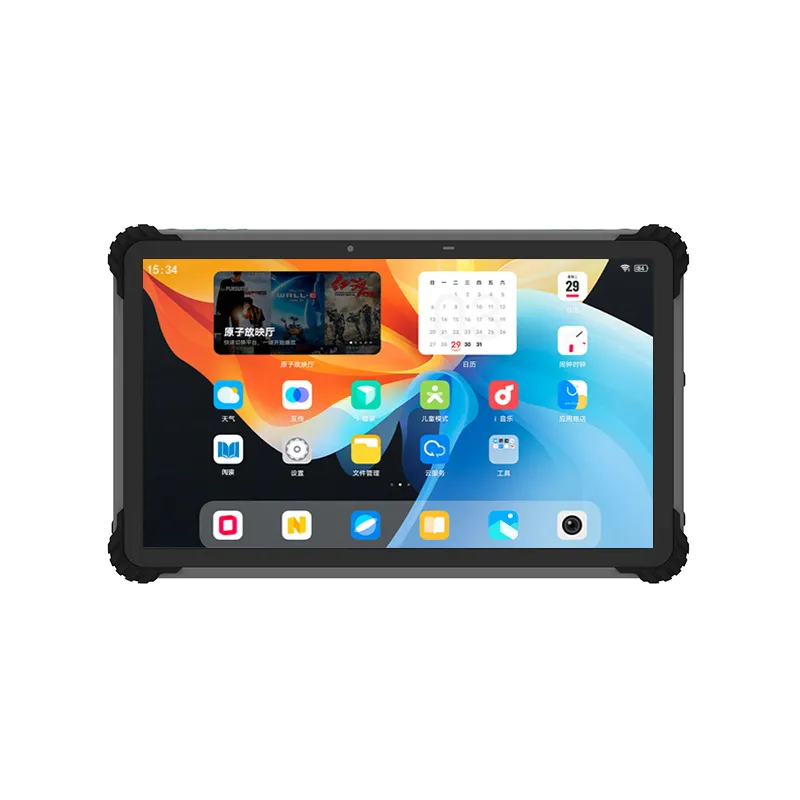

| ST13-R2 | Harmony 4.1， (Android 12 optional) | RK3588 | 8GB/256GB/512GB16GB/256GB/512GB | 1430g | 330*205*19.5mm， (Package: 370*246*67mm) | LCD, 13.3in 1080*1920, 400nits | 10-point touch | 8000mAh， (6000mAh optional) | EU/US, Type-C fast charging, DC 4.0 charging | 5M/13M | 4G LTE | Wi-Fi 6 | GPS/， BEIDOU/， GLONASS | BT5.0 | 14443A/B15693 | supported | USB2.0/USB3.0/DC4.0/， headphone jack, Type-C, HDMI,RJ45,， aviation connector*2， (RS232+blank) | IP65 | STA13-01 | STA03-07 | N4680/， N1 |

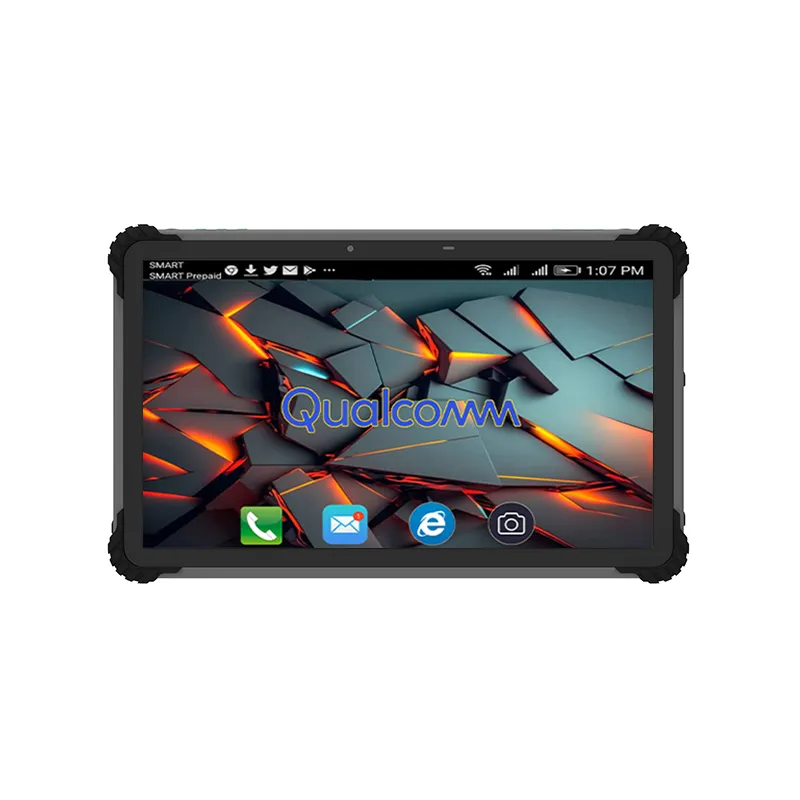

| ST13-Q3 | Android 13 | QCM4490 | 4GB/64GB8GB/128GB | 1430g | 330*205*19.5mm， (Package: 370*246*67mm) | LCD, 13.3in 1080*1920, 400nits | 10-point touch | 16000mAh | EU/US, Type-C fast charging, DC 3.5 charging | 8M/16M | 5G | Wi-Fi 6 | GPS/， BEIDOU/， GLONASS | BT5.2 | 14443A/B15693 | supported | USB2.0/DC3.5/， headphone jack, Type-C, RJ45,， aviation connector*2， (RS232+blank) | IP65 | STA13-02 | — | N4680/， N1 |
Windows· 3 models
| Model | OS | CPU | RAM/Storage | Weight | Dimensions | Display | Touch | Battery | Charging | Camera | 5G/4G | WiFi | GPS | Bluetooth | NFC | TF Card | Ports | IP Rating | Dock | Vehicle Dock | 2D Scanner |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

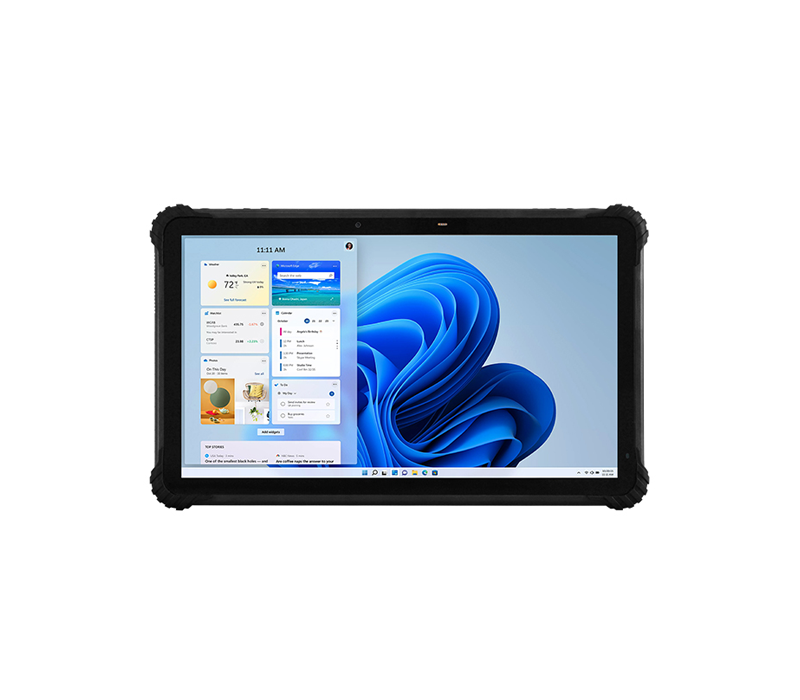

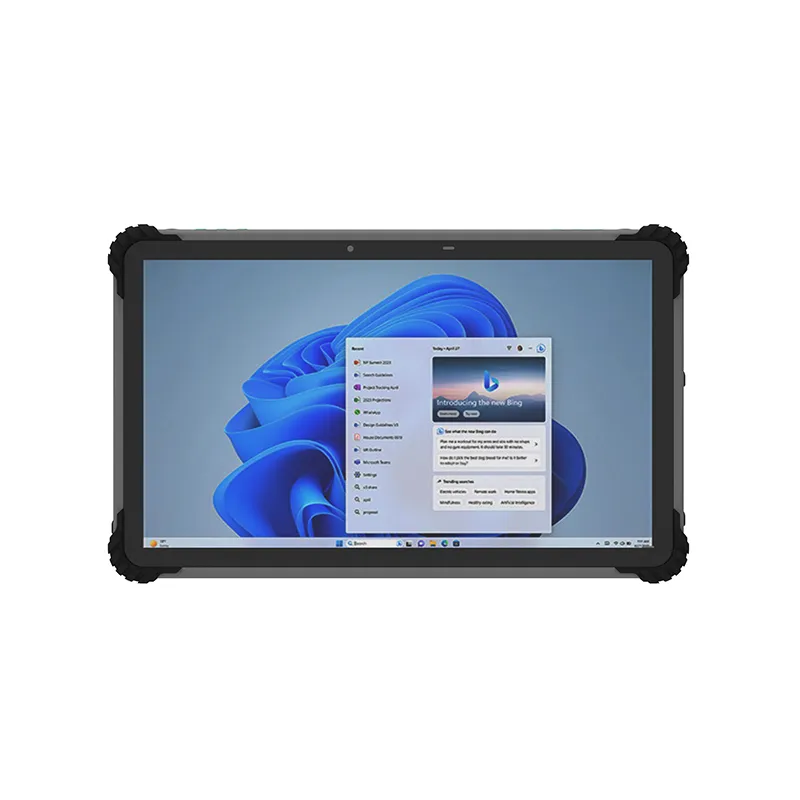

| ST13-U | Windows 11 Pro | I5-1235U， (I7-1255U optional) | 8GB/256GB16GB/512GB32GB/1TB | 1450g | 330*205*19.5mm， (Package: 370*246*67mm) | LCD, 13.3in 1080*1920, 400nits | 10-point touch | 8000mAh， (6000mAh optional) | EU/US, Type-C fast charging, DC 4.0 charging | 5M/8M | 4G LTE | Wi-Fi 6 | GPS/， BEIDOU/， GLONASS | BT5.2 | 14443A | up to 1TB | USB3.2*2/DC4.0/， headphone jack, Type-C, HDMI,RJ45,， aviation connector*2， (RS232+blank) | IP65 | STA13-01 | STA03-07 | N4680/， N1 |

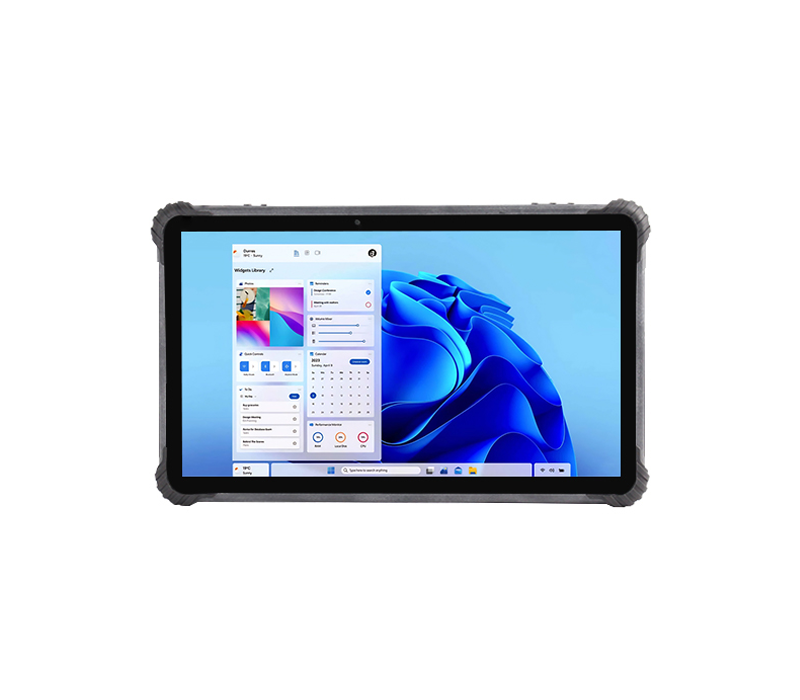

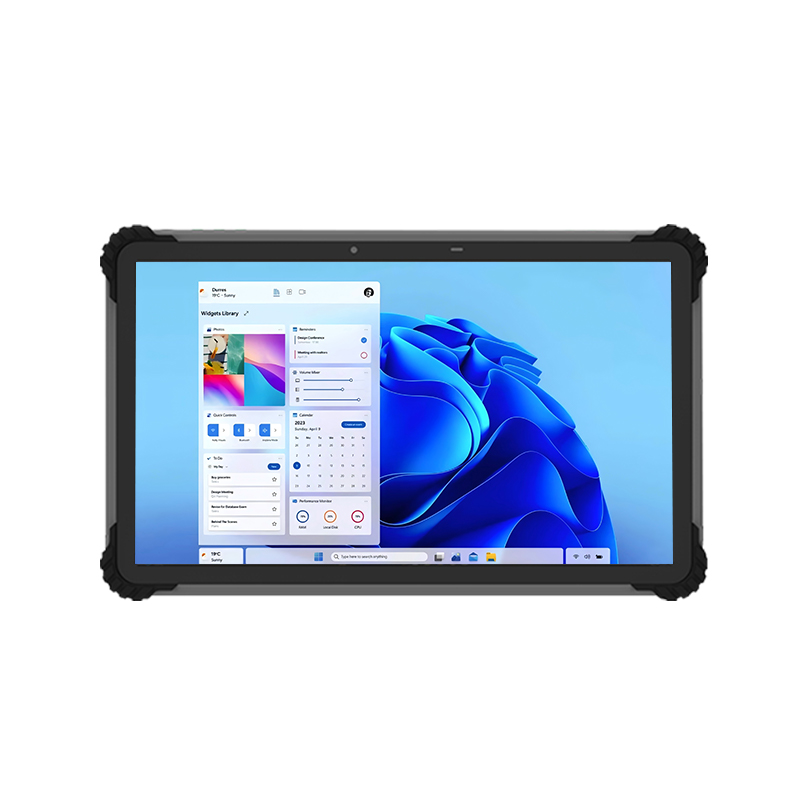

| ST13-J | Windows 10 Pro | N5100， (N4500 optional) | 8GB/256GB4GB/64GB | 1450g | 330*205*19.5mm， (Package: 370*246*67mm) | LCD, 13.3in 1080*1920, 400nits | 10-point touch | 8000mAh， (6000mAh optional) | EU/US, DC 4.0 charging | 5M/13M | 4G LTE | Wi-Fi 5 (2.4/5.0) | GPS/， BEIDOU/， GLONASS | BT4.2 | 14443A | up to 1TB | USB3.0*2/DC4.0/， headphone jack,HDMI,RJ45,， aviation connector*2， (RS232+blank) | IP65 | STA13-01 | STA03-07 | N4680/， N1 |
| ST13-M | Windows 10 Pro | I5-8200Y， (I7-8500Y optional) | 8GB/256GB16GB/512GB | 1450g | 330*205*19.5mm， (Package: 370*246*67mm) | LCD, 13.3in 1080*1920, 400nits | 10-point touch | 8000mAh， (6000mAh optional) | EU/US, DC 4.0 charging | 5M/13M | 4G LTE | Wi-Fi 5 (2.4/5.0) | GPS/， BEIDOU/， GLONASS | BT4.2 | 14443A | up to 1TB | USB3.0*2/DC4.0/， headphone jack,HDMI,RJ45,， aviation connector*2， (RS232+blank) | IP65 | STA13-01 | STA03-07 | N4680/， N1 |
07
VST101 Series
10.1" aviation-connector tablet 3 models · 7 configsProduct Appearance
Front view
Back portsAndroid· 1 models
| Model | OS | CPU | RAM/Storage | Weight | Dimensions | Display | Touch | Battery | Charging | Camera | 5G/4G | WiFi | GPS | Bluetooth | NFC | TF Card | Ports | IP Rating | 2D Scanner |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VST101-A8 | Android 15 | MT6877 | 8GB/256GB16GB/512GB | 900g | 262*174*29.1mm | LCD, 10.1in 1200*1920, 800nits | 10-point touch | 2000mAh | DC charging | 8M/16M | 5G | Wi-Fi 6 | GPS/， BEIDOU/， GLONASS | BT5.2 | 14443A/B15693 | supported | All ports via aviation connectors M16:， USB ports(USB2.0*3+Type-C*1),， Serial(RS232*1+RS485*1),， DC*1, RJ45*1 (100M) | IP65 | — |
Windows· 2 models
| Model | OS | CPU | RAM/Storage | Weight | Dimensions | Display | Touch | Battery | Charging | Camera | 5G/4G | WiFi | GPS | Bluetooth | NFC | TF Card | Ports | IP Rating | 2D Scanner |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VST101-J | Windows 10 Pro | N5100 | 4GB/64GB8GB/256GB | 850g | 262*174*29.1mm | LCD, 10.1in 1200*1920, 800nits | 10-point touch | 10000mAh | DC charging | 5M/13M | 4G LTE | Wi-Fi 5 (2.4/5.0) | GPS/， BEIDOU/， GLONASS | BT4.2 | — | supported | All ports via aviation connectors M16:， USB ports(USB2.0*2+USB3.0*2),， Serial(RS232*1+RS485*1),， DC*1, RJ45*1 | IP65 | — |
| VST101-U | Windows 11 Pro | I5-1235U， (I7-1255U optional) | 8GB/256GB16GB/512GB32GB/1TB | 850g | 262*174*29.1mm | LCD, 10.1in 1200*1920, 800nits | 10-point touch | 10000mAh | DC charging | 5M/8M | 4G LTE | Wi-Fi 6 | GPS/， BEIDOU/， GLONASS | BT5.2 | — | supported | All ports via aviation connectors M16:， USB ports(USB2.0*2+USB3.0*2),， Serial(RS232*1+RS485*1),， DC*1, RJ45*1 | IP65 | — |
08

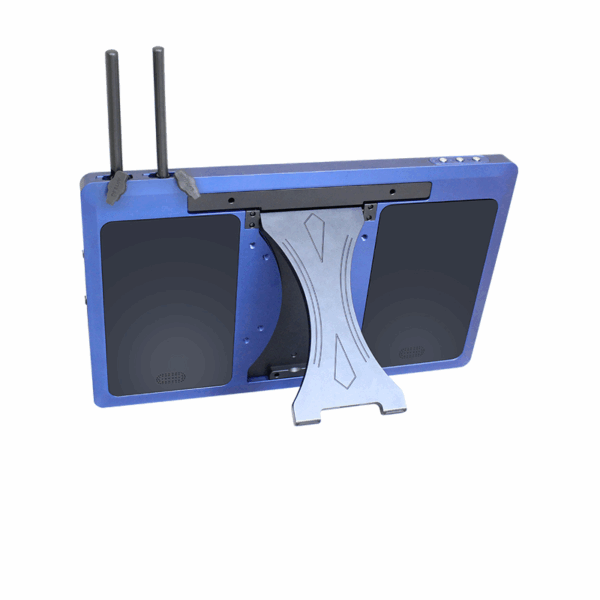

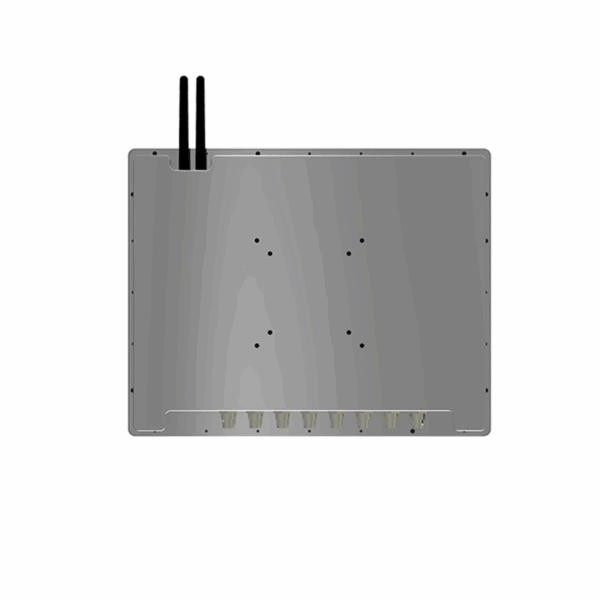

SP15 Series
15.6/17/21.5" vehicle large displays 7 models · 12 configs| Model | OS | CPU | RAM/Storage | Weight | Dimensions | Display | Touch | Battery | Charging | Camera | 5G/4G | WiFi | GPS | Bluetooth | NFC | Ports | IP Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SP15-M | Windows 10 Pro | I5-8200Y | 8GB/256GB16GB/512GB | 2600g | 384*234*22.5mm， (Package: 432*335*50mm) | LCD, 15.6in 1080*1920, 300nits | 10-point touch | — | EU/US, DC 4.0 power | — | — | Wi-Fi 5 (2.4/5.0) | — | BT4.2 | — | USB3.0*2/DC4.0/， headphone jack, HDMI, RJ45, RS232 | IP65 |
| SP15-J | Windows 10 Pro | N5100 | 4GB/64GB8GB/256GB | 2600g | 384*234*22.5mm， (Package: 432*335*50mm) | LCD, 15.6in 1080*1920, 300nits | 10-point touch | — | EU/US, DC 4.0 power | — | — | Wi-Fi 5 (2.4/5.0) | — | BT4.2 | — | USB3.0*2/DC4.0/， headphone jack, HDMI, RJ45, RS232 | IP65 |

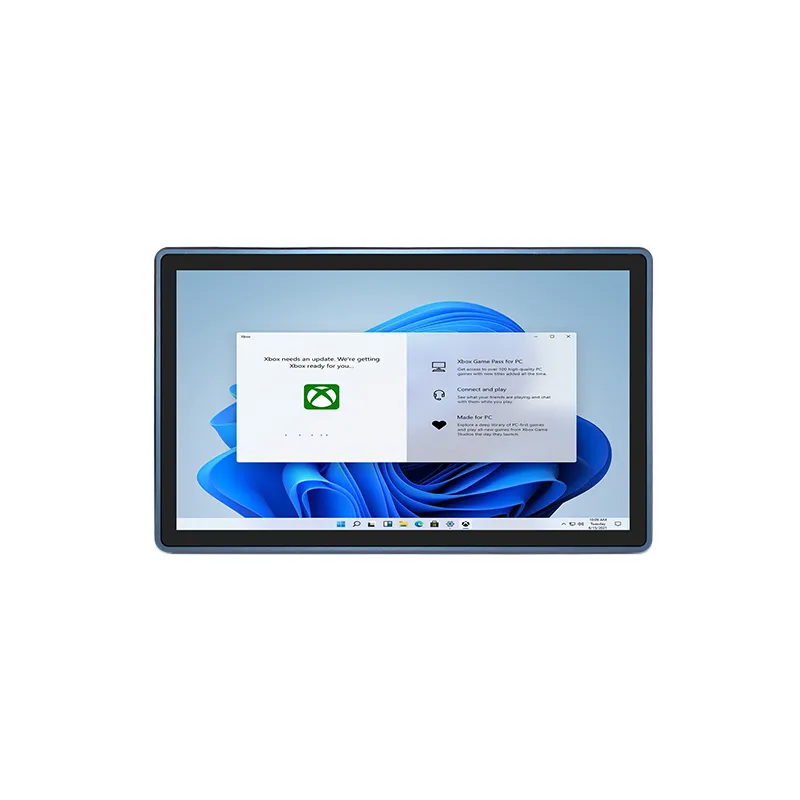

| SP15-U | Windows 11 Pro | I5-1235U， (I7-1255U optional) | 8GB/256GB16GB/512GB32GB/1TB | 2600g | 384*234*22.5mm， (Package: 432*335*50mm) | LCD, 15.6in 1080*1920, 300nits | 10-point touch | — | EU/US, DC 4.0 power | — | — | Wi-Fi 6 | — | BT5.2 | — | USB-3.2*2/Type-C， /DC4.0/headphone jack, HDMI, RJ45, RS232 | IP65 |

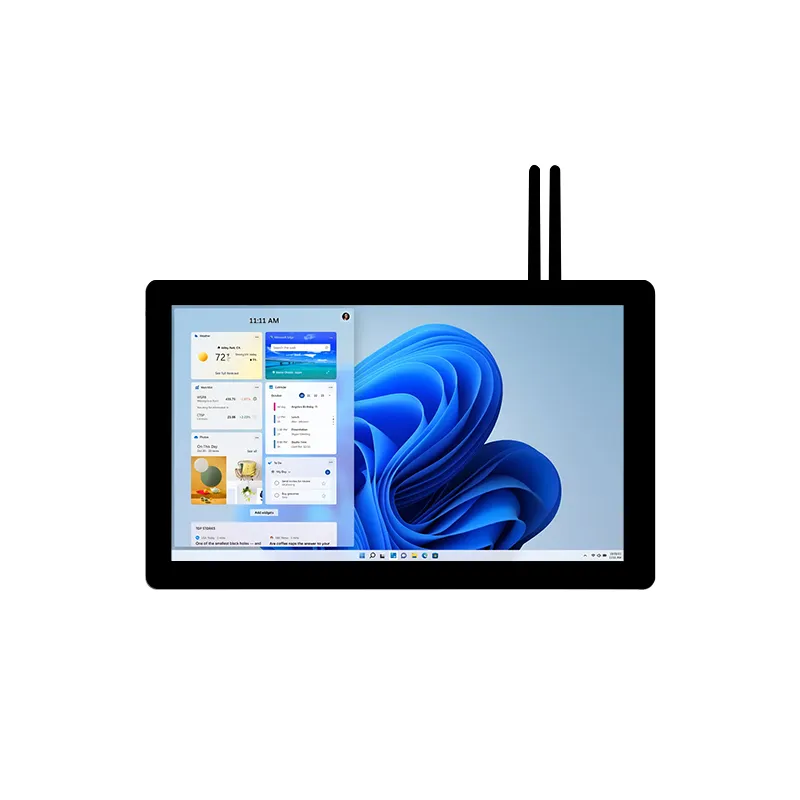

| SP152 | Windows 11 IoT | J6412 | 16GB/256GB | 3000g | 384*229*40mm | LCD, 15.6in 1080*1920, 250nits | 10-point touch | — | EU/US, DC 4.0 power | — | — | Wi-Fi 5 (2.4/5.0) | — | BT4.0 | — | USB3.0*2/DC4.0/， USB2.0*1, HDMI， RJ45, RS232*2 | IP65 |
| SP153 | Windows 11 IoT， (Kylin Desktop OS V10 optional) | J6412 | 8GB/128GB16GB/512GB | 3750g | 352.4*279.4*41mm | LCD, 15.0in 1024*768, 300nits | 10-point touch | — | EU/US, DC 4.0 power | — | — | Wi-Fi 4 (2.4/5.0) | — | — | — | USB3.0*2/DC4.0/， USB2.0*1, HDMI， RJ45, RS232*2 | IP65 |

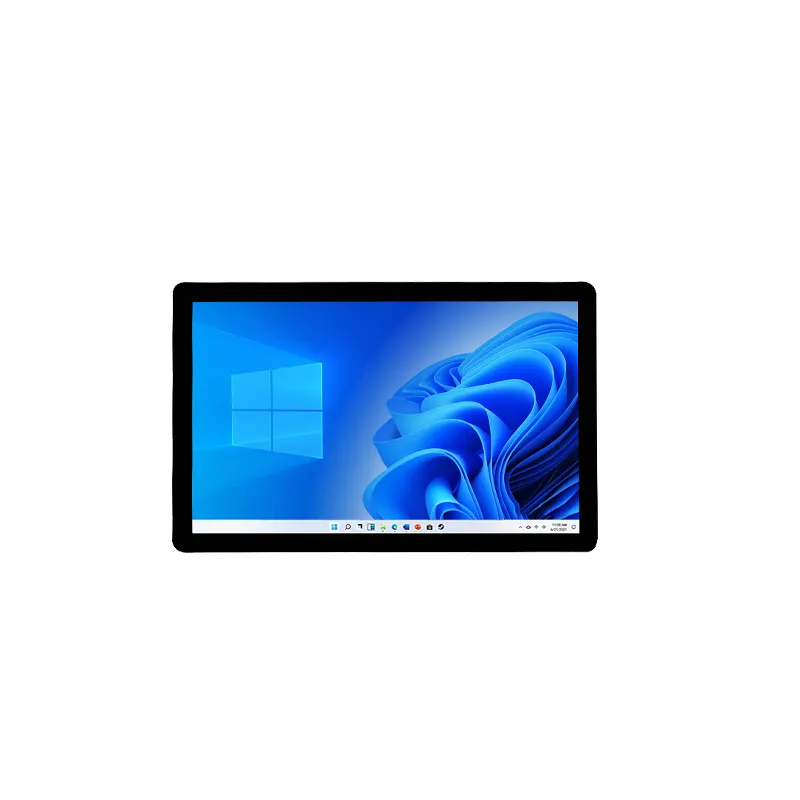

| SP211 | Windows 11 IoT | J6412 | 16GB/256GB | 5300g | 524*315.5*45mm | LCD, 21.5in 1080*1920, 250nits | 10-point touch | — | EU/US, DC 4.0 power | — | — | Wi-Fi 5 (2.4/5.0) | — | BT4.0 | — | USB3.0*2/DC4.0/， USB2.0*1, HDMI， RJ45, RS232*2 | IP65 |
| SP17 | Windows 11 IoT | J6412 | 16GB/256GB | 4200g | 382.4*231.4*27mm | LCD, 17in 1280*1024, 250nits | 10-point touch | — | EU/US, DC 4.0 power | — | — | Wi-Fi 4 (2.4/5.0) | — | BT4.2 | — | USB3.0*2/DC4.0/， USB2.0*1, HDMI， RJ45, RS232*2 | IP65 |
09

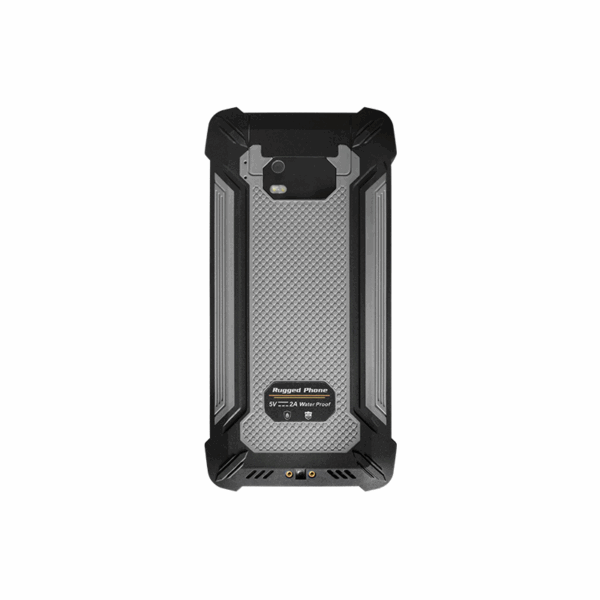

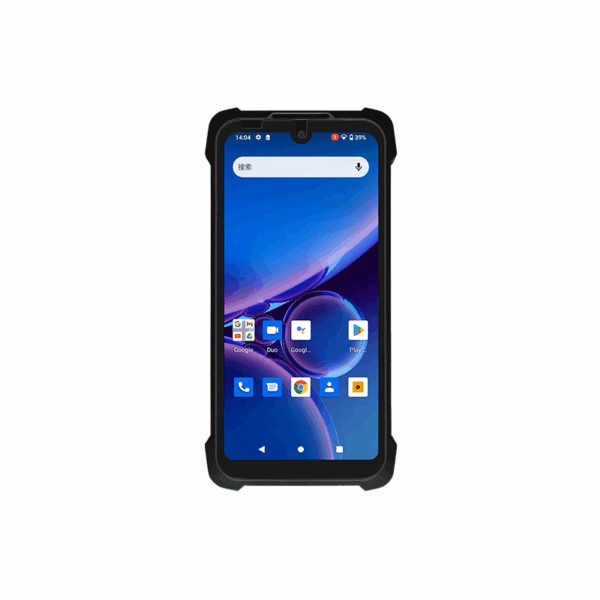

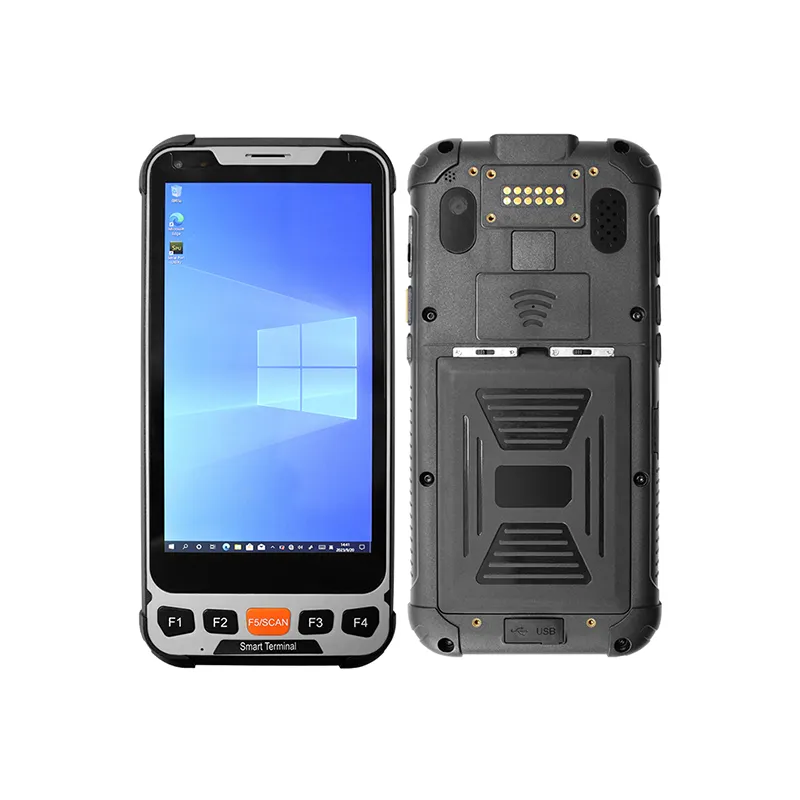

Handheld Series
Handheld terminal / barcode PDA 6 models · 11 configsAndroid· 3 models
| Model | OS | CPU | RAM/Storage | Weight | Dimensions | Display | Touch | Battery | Charging | Camera | 5G/4G | WiFi | GPS | Bluetooth | NFC | TF Card | Ports | IP Rating | Dock | 2D Scanner | Fingerprint | UHF |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

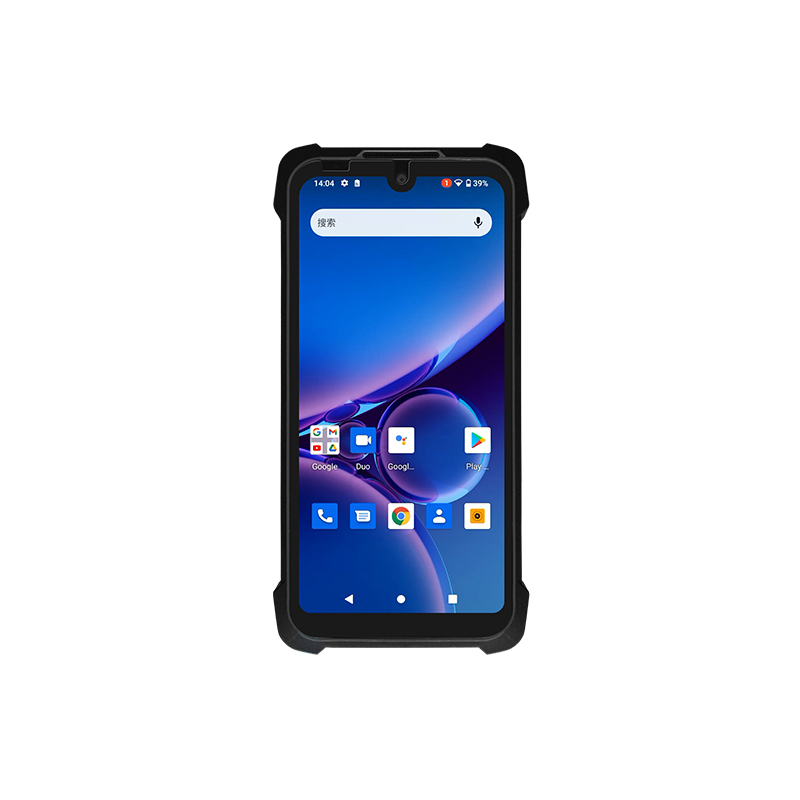

| SM5 | Android 11 | MT6765 | 4GB/64GB6GB/128GB | 240g | 155*77.7*13.3mm， (Package: 180*100*47mm) | LCD, 5.7in 720*1520, 450nits | 5-point touch | 4000mAh | Type-C fast charging | 5M/13M | 4G LTE | Wi-Fi 5 (2.4/5.0) | GPS/， BEIDOU/， GLONASS | BT5.0 | 14443A/B15693 | up to 1TB | Type-C | IP68 | STA05-02 | NLS-N1/， M1 | — | — |

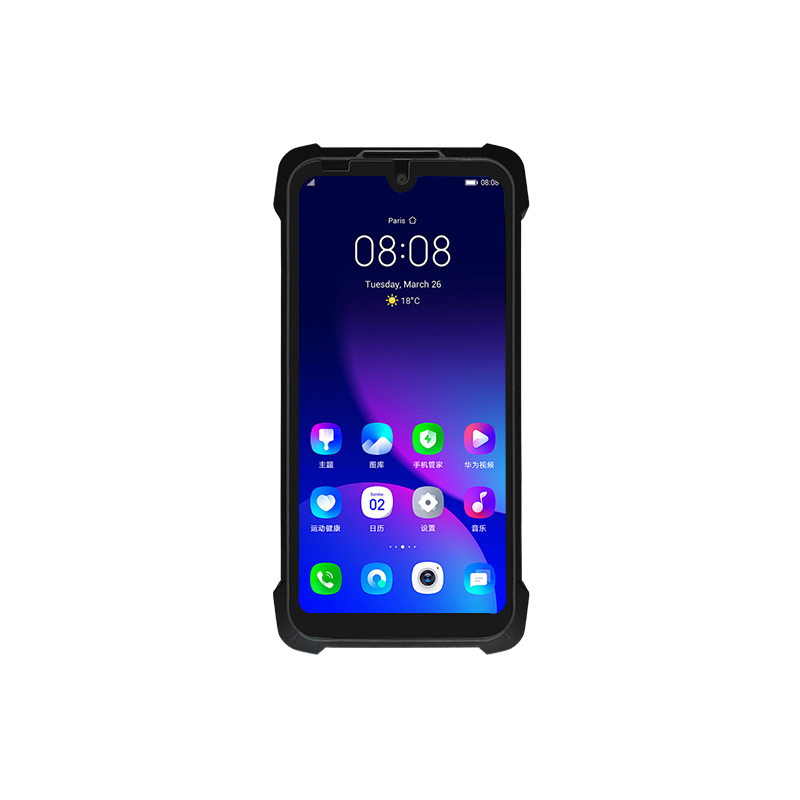

| SM5-T | Android 13 | T616 | 4GB/64GB8GB/128GB | 230g | 155*77.7*13.3mm， (Package: 180*100*47mm) | LCD, 5.7in 540*1140, 400nits | 5-point touch | 4000mAh | Type-C fast charging | 5M/13M | 4G LTE | Wi-Fi 5 (2.4/5.0) | GPS/， BEIDOU/， GLONASS | BT5.0 | 14443A/B15693 | up to 1TB | Type-C | IP68 | STA05-02 | NLS-N1/， M1 | — | — |
| SM5-A1 | Android 16 | MT6769 | 6GB/64GB6GB/128GB | 230g | 155*77.7*13.3mm， (Package: 180*100*47mm) | LCD, 5.7in 540*1140, 400nits | 5-point touch | 4000mAh | Type-C fast charging | 5M/13M | 4G LTE | Wi-Fi 5 (2.4/5.0) | GPS/， BEIDOU/， GLONASS | BT5.2 | 14443A/B15693 | up to 1TB | Type-C | IP68 | STA05-02 | NLS-N1/， M1 | — | — |
Windows· 3 models
| Model | OS | CPU | RAM/Storage | Weight | Dimensions | Display | Touch | Battery | Charging | Camera | 5G/4G | WiFi | GPS | Bluetooth | NFC | TF Card | Ports | IP Rating | Dock | 2D Scanner | Fingerprint | UHF |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SH5-W | Windows 10 Pro | Z8350 | 4GB/64GB | 350g | 180*87*20mm， (Package: 210*120*74mm) | LCD, 5.5in 1080*1920, 400nits | 5-point touch | 5000mAh | EU/US, DC 3.5 charging | 2M/5M | 4G LTE | Wi-Fi 5 (2.4/5.0) | GPS/， BEIDOU/， GLONASS | BT4.2 | 14443A | up to 1TB | USB3.0/DC3.5/， Micro USB | IP65 | STA05-01 | N4680， LV3296， N4315 | 1020A | M-500， (M301) |

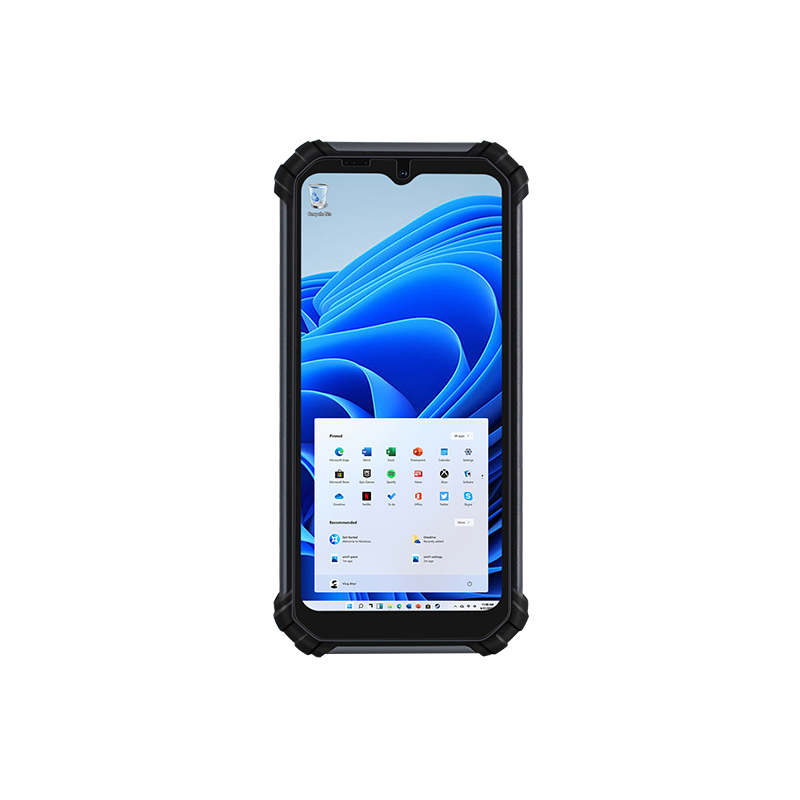

| SH6 | Windows 11 Pro | N100 | 8GB/256GB16GB/512GB | 460g | 178.3*83*23mm， (Package: 210*115*65mm) | LCD, 6.5in 720*1600, 380nits | 10-point touch | 5000mAh | Type-C fast charging | 5M/8M | 4G LTE | Wi-Fi 6 | GPS/， BEIDOU/， GLONASS | BT5.2 | 14443A | up to 1TB | USB3.0*2,Type-C | IP65 | STA06-01 | SE5500， SE4710， NLS-N1 | — | — |

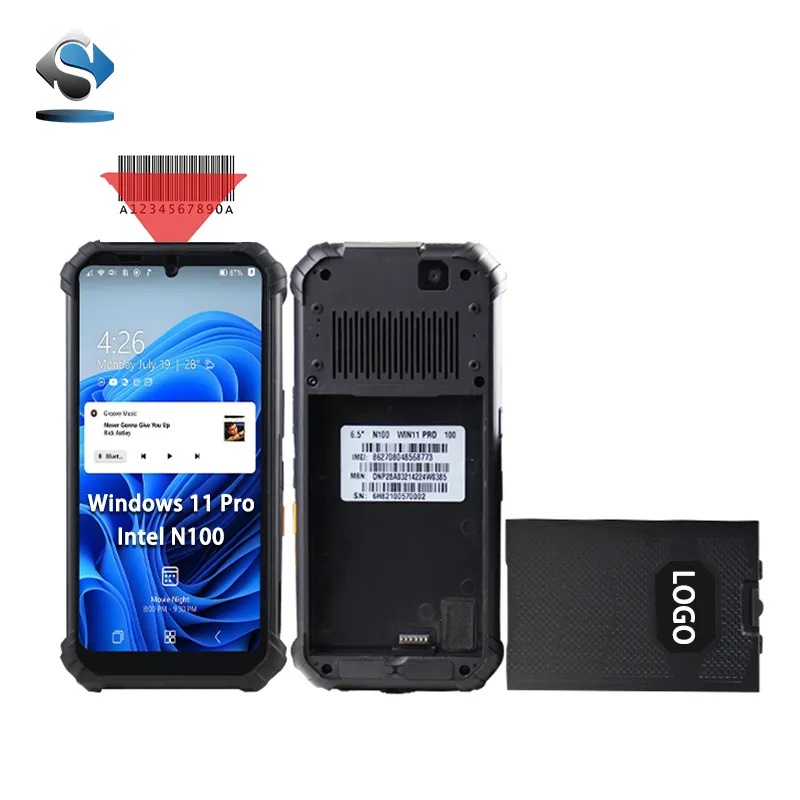

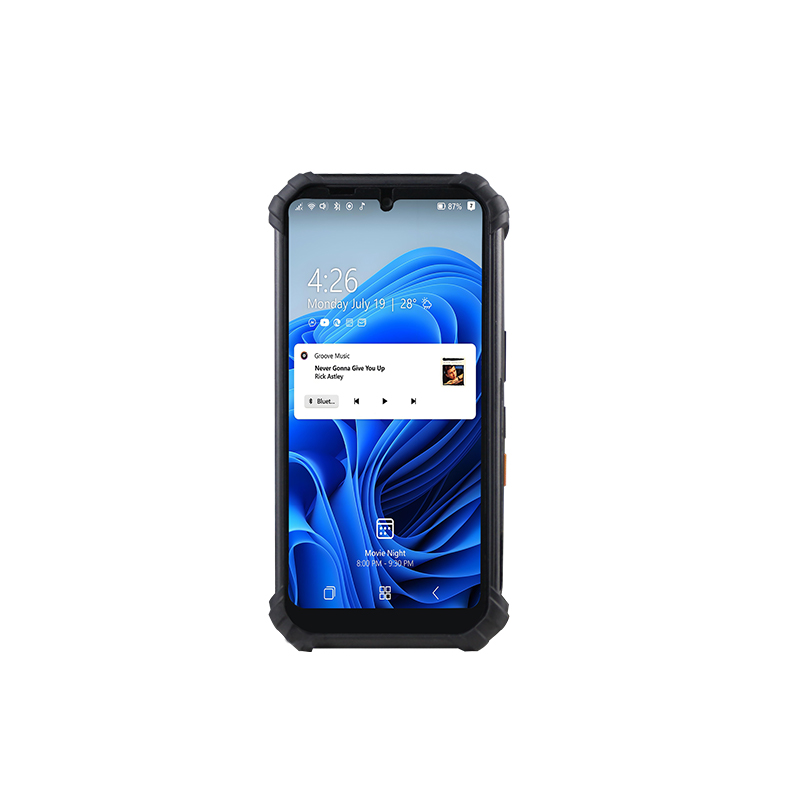

| SH66 | Windows 11 Pro | N150 (or N100) | 8GB/256GB16GB/512GB | 440g | 178.3*83*26.16mm， (Package: 210*115*65mm) | LCD, 6.5in 720*1600, 380nits | 10-point touch | 5000mAh | Type-C fast charging | 5M/8M | 4G LTE | Wi-Fi 6 | GPS/， BEIDOU/， GLONASS | BT5.2 | 14443A | up to 1TB | USB3.0*2,Type-C | IP65 | STA06-02 | SE5500， SE4710， NLS-N1 | — | — |
010
Rugged Series
14" rugged notebook 1 models · 3 configsProduct Appearance
N40-U open
N40-U closed| Model | OS | CPU | RAM/Storage | Weight | Dimensions | Display | Touch | Battery | Charging | Camera | 5G/4G | WiFi | GPS | Bluetooth | NFC | Ports | IP Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| N40-U | Windows 11 Pro | I5-1235U， (I7-1255U optional) | 8GB/256GB16GB/512GB32GB/1TB | 1850±50g | 364.8*270*35mm | LCD, 14in 1080*1920, 800nits | 10-point touch | 16000mAh | EU/US, DC 4.0 power | 5M/13M | 4G LTE | Wi-Fi 6 | GPS/， BEIDOU/GLONASS | BT5.2 | 14443A | USB2.0*2, USB3.2*2, Type-C, DC4.0,， headphone jack, HDMI, RS232, RJ45， Slots: SIM/TF/secure SSD | IP65 |
011
MINI-PC Series
Mini industrial PC 3 models · 7 configsModel Diagrams
SMP01-J
SMP02

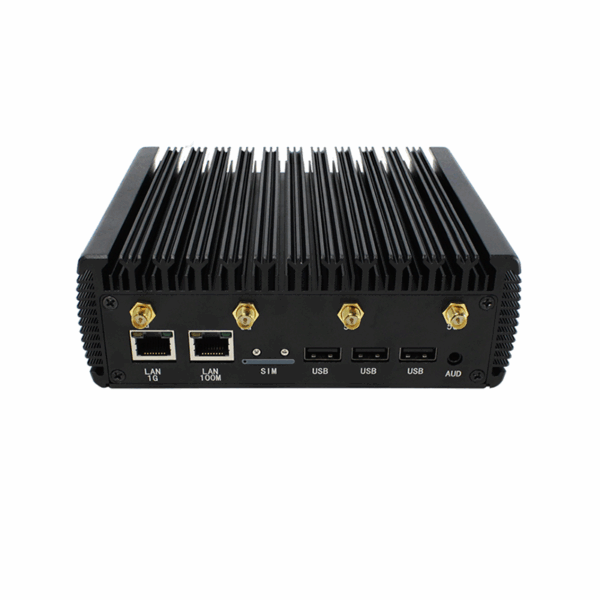

SMP03 front

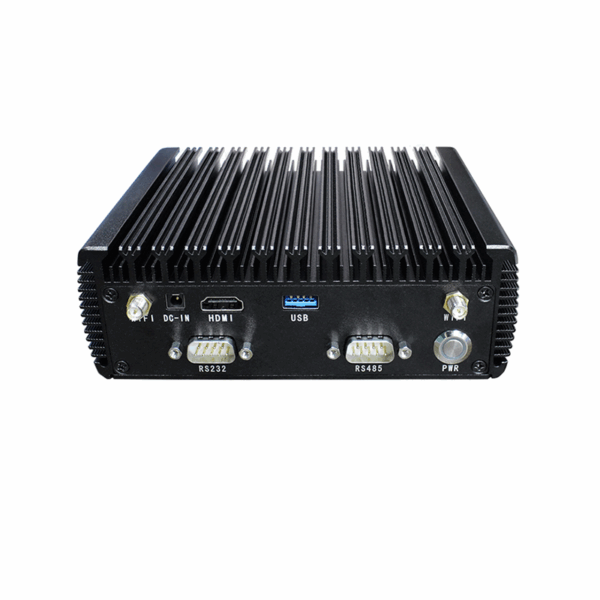

SMP03 back| Model | OS | CPU | RAM/Storage | Weight | Dimensions | Power | 5G/4G | WiFi | GPS | Bluetooth | NFC | Ports | IP Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SMP01-J | Windows 10 Pro | N5100 | 4GB/64GB | 1236g | 155*140*52.6mm | EU/US, DC 4.0 power | 5G LTE | Wi-Fi 5 (2.4/5.0) | — | BT4.2 | — | RJ45*2/USB2.0*3， DC/USB3.0/HDMI/， headphone jack | IP65 |
| SMP02 | Windows 10 Pro | N100 | 8GB/128GB16GB/256GB/512GB | 530g | 136*127*36mm | EU/US, DC 4.0 power | — | Wi-Fi 4 (2.4/5.0) | — | — | — | RJ45*2/USB2.0*2， DC/USB3.0*4/HDMI/， VGA/headphone jack | IP65 |
| SMP03 | Windows 11 Pro | N100 | 12GB/128GB8GB/256GB/512GB/ 1T16GB | 200g | 71*71*46.7mm | EU/US, DC 4.0 power | — | Wi-Fi 4 (2.4/5.0) | — | — | — | RJ45/USB3.2*3， HDMI*2/Type-C/， headphone jack | IP65 |
Configuration · Changelog
Newest first2026-10-10
Updated ST10-A1 / SM5-A1 specs
2026-07-23
Updated ST11 spec diagrams
2026-07-20
Corrected ST8/ST9 battery info7800→10000mAh; 7800mAh battery discontinued
2026-07-20
Updated SH66 configs
2026-07-20
Updated A7/A71 model configs
2026-07-20
Added new models: ST101 / VST101, etc.
2025-11-07
Corrected Q3 series RAM configs
2025-11-06
Removed ST9 vehicle mount STA03
2025-07-16
Updated product & package dimensions
2025-06-20
Removed MT6771 notes and ST8-A6 / ST11-A6 data
2025-06-19
Updated model weights; removed redundant custom options
2025-06-11
Corrected ST10-A2 WiFi info
2025-04-28
Updated TF card support status
2025-04-27
Updated A8 / Q3 model configs
2025-03-31
Updated IP ratings for all models (ST11/ST9/ST8...)
2025-03-24
Added new models: ST10 / ST13 / SP15, etc.
