Description
Specification
| Update | 1 July 2023 | |
| SH6 SPEC | ||
| ITEM | DESCRIPTION | DETAIL |
| OS | Windows 11 Pro | Home / Iot Optional |
| CPU | Intel N100 (Quad Core, Quad Threads; 1.8GHz) | Turbo can reach 3.4GHz |
| GPU | UHD Graphics (24 EUs) | |
| RAM/ROM | 8GB/256GB | 8GB/512GB Optional 16GB/256GB Optional 16GB/512GB Optional |
| LCD | 6.5 inch; 720*1600; 380nits | |
| Touch Screen | 10 Point Touch | |
| Camera | Front: 5MP; Rear: 8MP | |
| Power and Battery | 5000mAh; 7.6V | Charging time: about 3H Usage time: 4H30min(50% volume, 60% brightness, playing local 1080P video) |
| WWAN | FDD_LTE: B1/B2/B3/B4/B5/B7/B8/B28 TDD_LTE: B40 WCDMA: B1/B2/B4/B5/B8 GSM: B2/B3/B5/B8 |
Module: SLM770A (EC25-AUX in North America) |
| GPS | BDS, GPS, GLONASS | |
| WIFI | 802.11a/b/g/n/ac/ax Wireless Internet Wireless AP ( Mobile AP )2.4G, 5G |
Intel® Wi-Fi 6 AX201 (WiFi/Bluetooth 2-in-1) |
| BLUETOOTH | 5.2 Version | |
| NFC | 13.56 MHz, Distance: 1-3cm | ISO14443 TYPE A |
| MIC | Sensitivity: -32±2d Output Impedance: 2.2kΩx1 |
|
| SPEAKER | 8Ω 1.0 Watt | |
| Sensor | 1. Light Sensor 2. G-Sensor 3. Acceleration sensor |
|

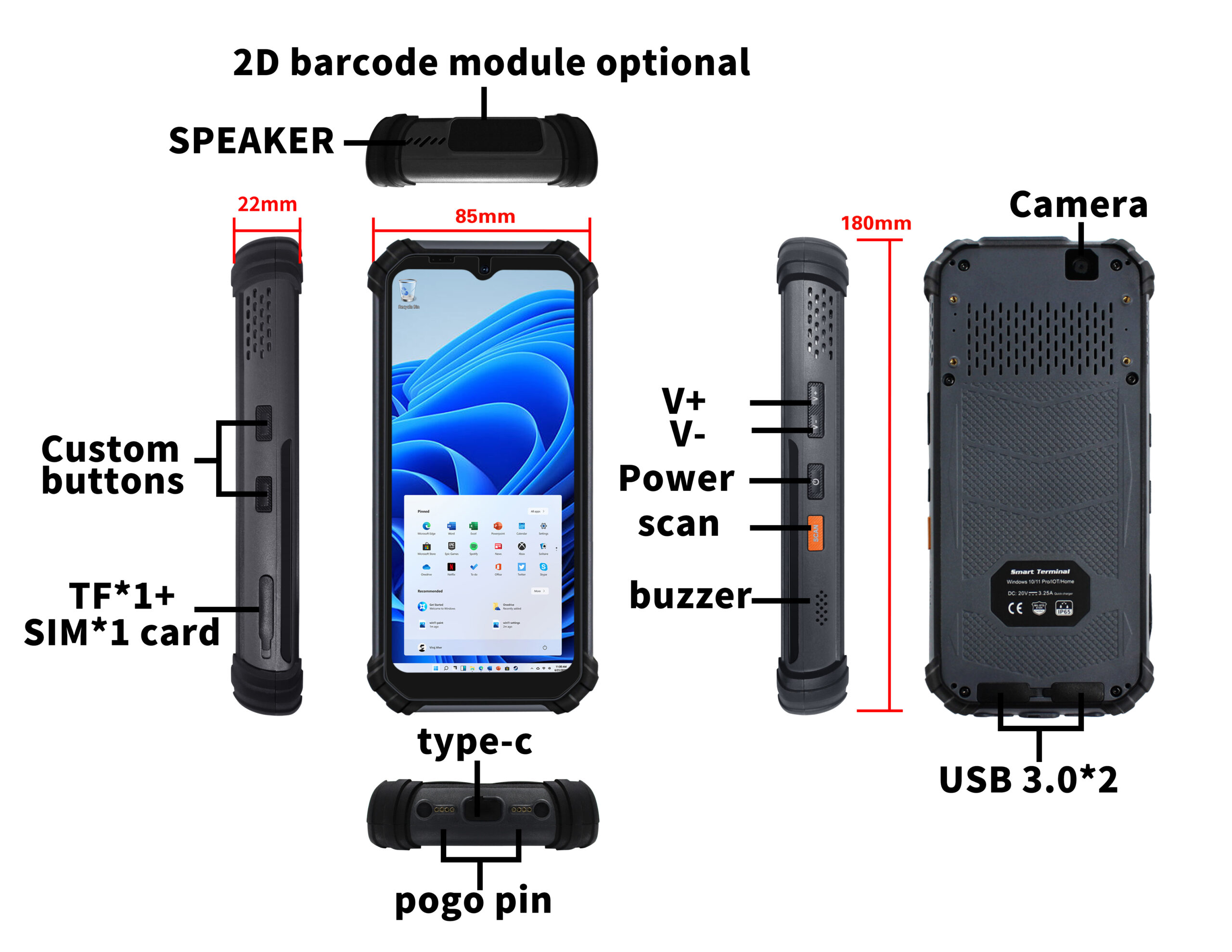

| Size | 180*85*22mm | |
| Weight | 460±20g | |
| Language | Multi language | |
| Interface In/Out Port |
1. Type-C*1; Full-featured; Quick charge (20W) 2. SIM Card Slot*1 3. TF Card Slot*1 4. USB 3.0*2 |
Bottom pogopin (8PIN) |
| Button | V+ -, Power, Scan | Customized Button *2 |
| 1D/2D Barcode | Optional | NLS-N1 optional Zebra SE5500 optional Zebra SE4710 optional SE655 (1D) Optional |
| Accessories | 1. Blue Box 2. Charger (20W) |
Optional: Docking Station |
| Multi-Media (Hardware Decoding) |
1. Photo Viewer: BMP, JPG, GIF, PNG 2. Video Format: MEPG 1/2/4,H.263/H.264, RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) 3. Audio Format: MP3,WMA,WAV,OGG,FLAC,ALAC, APE,AAC,AC-3,DTS (need license) |
|
| Proof Degree | Anti-dust & Waterproof IP65 Dropping Resistance 1.2 meters |
|
| Certification | 1. MIL-STD-810G 2. ISO-9001 3. CE, FCC, 3C |
|
| Temperature | Storate Temperature: -25 °C to 80 °C Operation Temperature: -20 °C to 55 °C |
