Description
Specification
| Update | 13 July 2024 | |
| SP15-U SPEC | ||
| ITEM | DESCRIPTION | DETAIL |
| OS | Windows 11 pro | Windows 10 Pro / Iot Optional |
| CPU | Intel I5-1235U 10 cores, 12 threads/basic frequency 1.3GHz, turbo 4.4GHz / power consumption 15W |
I7-1255U optional 10 cores, 12 threads/basic frequency 1.7GHz, turbo 4.7GHz/power consumption 15W |
| GPU | Intel® Iris® Xe Graphics 80EU | I7：Intel® Iris® Xe Graphics 96EU |
| RAM/ROM | I5： RAM：8GB/16GB(max 64) ROM: 128GB/256GB/512GB I7： RAM：16GB/32GB(max 64) ROM: 128GB/256GB/512GB |
RAM： LPDDR5 496 Ball ROM： M.2 2242 SATA |
| LCD | 15.6 inch; 1080*1920 | |
| Touch Screen | 10 Point Touch | Support stylus |
| WIFI | 802.11b/g/n/ac/ax wireless internet Wireless AP ( Mobile AP )2.4G, 5G support WIFI 6 |
Model：Intel ® Wi-Fi 6 AX201 (Bluetooth/WIFI 2-in-1) Antenna built-in or external Optional |
| BLUETOOTH | Version 5.2, backward compatibility | |
| SPEAKER | 4Ω 2.0Watt*2 | |

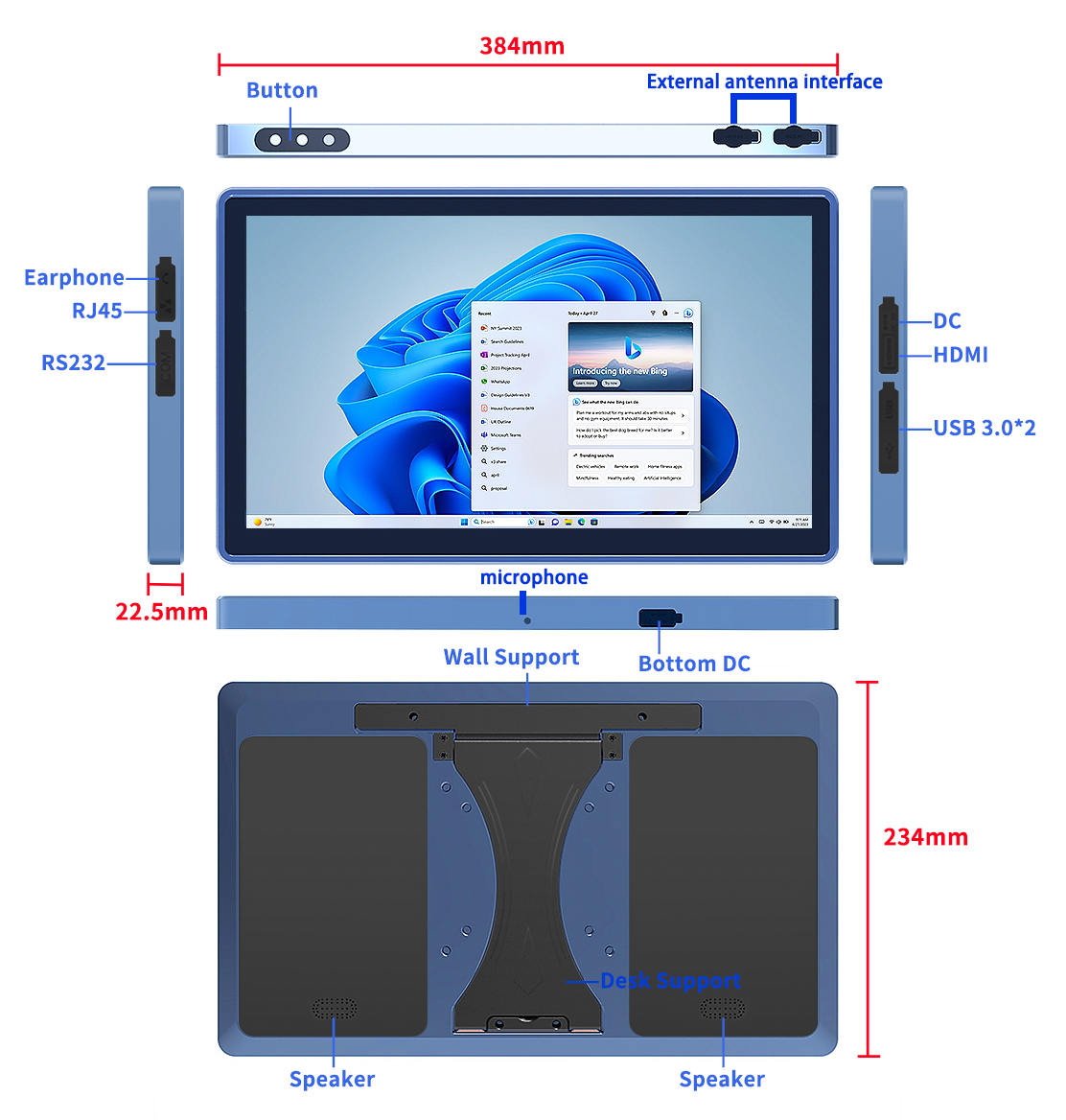

| Size | 384*234*22.5mm | |
| Weight | 2600±50g (without antenna) | |
| Language | Multi language | |
| Interface In/Out Port |
1. DC 12V 3A ∮4.0mm x2 2. HDMI Type A x1,Audio and video output 3. USB Type_A：USB3.2 Gen1 x2 4. USB Type_C：USB3.2 Gen1 x1(type-c include PD, DP, Data transmission, Charging) 5. Earphone：∮3.5mm headphone jack x1 6. RJ45：Support Gigabit Ethernet 7. RS232：Standard DB9 |
|
| Button | V+ -, Power | |
| Accessories | 1. Box 2. DC Charger (12V 4A) |
|
| Multi-Media (Hardware Decoding) |
1. Photo Viewer: BMP, JPG, GIF, PNG 2. Video Format: MEPG 1/2/4,H.263/H.264, RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) 3. Audio Format: MP3,WMA,WAV,OGG,FLAC,ALAC, APE,AAC,AC-3,DTS (need license) |
|
| Proof Degree | Anti-dust & Waterproof IP65 Dropping Resistance 1.2 meters |
|
| Temperature | Storage Temperature: -25 °C to 80 °C Operation Temperature: -20 °C to 55 °C |
