ST11-M

Name: ST11-M
Brand: SINCOOLE
SKU: ST11-M
Availability: InStock

Ask a Question

Guarantee safe & secure checkout

Estimated Delivery : 13 - 15 Nov, 2025

Free Shipping & Returns : On all order

SKU : ST11-M Category : ST11 Ser. Brand: SINCOOLE

Description

Specification

Update	1 July 2023
ST11-M SPEC
ITEM	DESCRIPTION	DETAIL
OS	Windows 10 Pro	Windows 10 Home / Iot Optional Windows 11 Pro Optional Ubuntukylin-20.04 Optional
CPU	Intel I5-8200Y (Dual Core, Quad Threads; 1.30GHz)	Turbo can reach 3.90GHz
GPU	Intel® UHD Graphics 615
RAM	8GB	8GB+128GB(EMMC)/ 16GB / 16GB+128GB(EMMC) Optional
ROM	256GB	512GB / 1TB
LCD	10.1 inch; 1200*1920; IPS	430nits (TYP) 450nits (MAX) 1000nits(1200*1920) Optional
Touch Screen	10 Point Touch	Support stylus
Camera	Front: 5MP; Rear: 13MP
Power and Battery	6000mAh / voltage 7.6Vdc(45.6Wh)	Charging time: about 4 hours Usage time: 7H30min (50% volume, 60% brightness, playing local 1080P video) Standby time: about 4 days (screen off standby)
WWAN	4G Fre: FDD_LTE: B1/B2/B3/B4/B5/B7/B8/B28 TDD_LTE: B40 WCDMA: B1/B2/B4/B5/B8 GSM/EDGE: B2/B3/B5/B8	Module: SLM770A (EC25-AUX in North America)
GPS	BDS, GPS, GLONASS
WIFI	802.11a/b/g/n/ac Wireless Internet Wireless AP ( Mobile AP )2.4G, 5G	Intel Stone Peak 7265 (WiFi/Bluetooth 2-in-1)
BLUETOOTH	4.2 Version	Intel Stone Peak 7265 (WiFi/Bluetooth 2-in-1)
NFC	13.56 MHz, Distance: 1-3cm	ISO14443 TYPE A
MIC	Sensitivity: -32±2d Output Impedance: 2.2kΩx1
SPEAKER	8Ω 1.5 Watt
Sensor	1. Light sensor 2. Acceleration sensor 3. Gravity sensor
Size	27317220mm
Weight	1150±50g
Language	Multi language

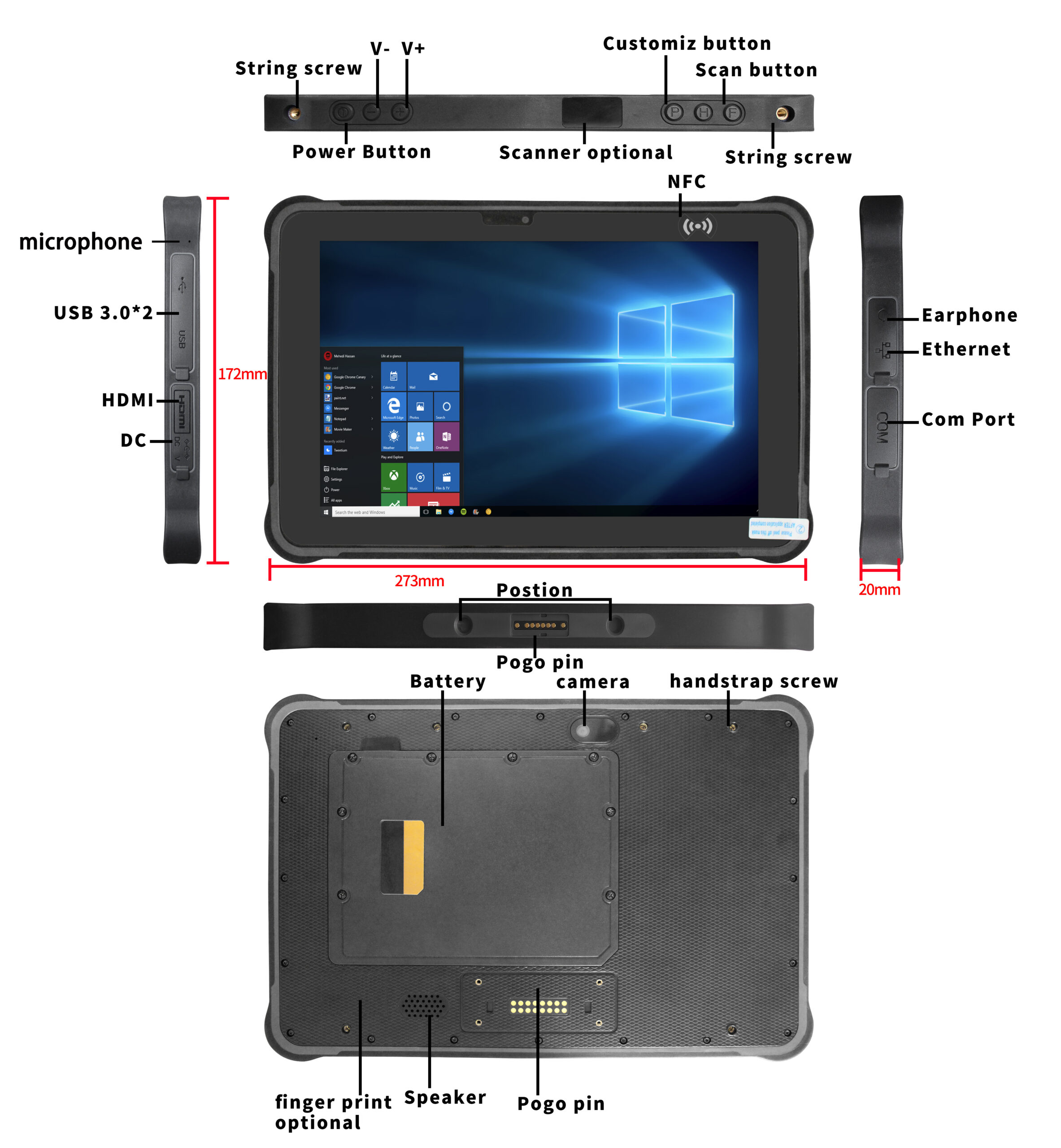

Interface In/Out Port	1. HDMI1 2. SIM Card Slot1 3. TF Card Slot1 (Customized items) 4. Earphone1 5. DC1; 4.015mm 6. USB 3.0 2 7. RJ451 8. RS232*1	Bottom pogopin: USB 2.0; Charging; RS232 Back pogopin: USB 2.0; RS232
Button	V+ -, Power, "F" for Barcode Scan	Customized Button: P, H (Default No Functionality)
1D/2D Barcode	Optional	Honeywell N4680 Optional
UHF RFID	M-500 Optional	American standard M-500 (902Mhz – 928Mhz) External: card reading distance of 3-5M
	M-500 Optional	European standard M-500 (865MHz – 868MHz) External: Card reading distance of 3-5M
	M-301 Optional	American standard M-301 (902Mhz – 928Mhz) External: card reading distance of 5-8M
	M-301 Optional	European standard M-301 (865MHz – 868MHz) External: Card reading distance of 5-8M
Fingerprint	Optional	AFM60 Optional
High Precision GPS	Optional	UM960
Accessories	1. Blue Box 2. DC Charger (12V 4A) 3. Carry strap 4. Bag & Screw 5. Wrist strap	Optional: 1. Docking Station 2. Car Holder 3. Car Docking
Multi-Media (Hardware Decoding)	1. Photo Viewer: BMP, JPG, GIF, PNG 2. Video Format: MEPG 1/2/4,H.263/H.264, RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) 3. Audio Format: MP3,WMA,WAV,OGG,FLAC,ALAC, APE,AAC,AC-3,DTS (need license)
Proof Degree	Anti-dust & Waterproof IP65 Dropping Resistance 1.2 meters
Certification	1. MIL-STD-810G 2. ISO-9001 3. CE, FCC, 3C
Temperature	Storage Temperature: -25 °C to 80 °C Operation Temperature: -20 °C to 55 °C
