ST11-T2

Ask a Question

Guarantee safe & secure checkout

Estimated Delivery : 12 - 14 Nov, 2025

Free Shipping & Returns : On all order

SKU : ST11-T2 Category : ST11 Ser. Brand: SINCOOLE

Specification
Reviews (0)

Specification

Update	1 July 2023
ST11-T2 SPEC
ITEM	DESCRIPTION	DETAIL
OS	Android 13.0
CPU	Unisoc T760 (Octa Core; 2.2GHz)	Arm Cortex-A76×4 @2.2GHz Arm Cortex-A55×4 @2.0GHz
GPU	ARM Mail G57
RAM/ROM	8GB/256GB	16GB/512 optional
LCD	10.1 inch; 1200*1920; 450nits	IPS Screen
Touch Screen	10 Point Touch	Support stylus
Camera	Front: 5MP; Rear: 13MP	Flash light
Power and Battery	12000mAh / voltage 3.8Vdc (45.6Wh)
WWAN	5G LTE,3G WCDMA,GSM	2G GSM:850/900/1800/1900 3G WCDMA:B1/2/5/8 4G LTE:B1/B3/B5/B7/B8/B34/B38/B39/B40/B41 5G:N1/N3/N28AB/N41/N78
GPS	BDS, GPS, GLONASS
WIFI	802.11a/b/g/n/ac Wireless Internet Wireless AP ( Mobile AP )2.4G, 5G
BLUETOOTH	5.0 Version
NFC	13.56 MHz, Distance: 1-3cm	ISO14443 TYPE A
MIC	Sensitivity: -32±2d Output Impedance: 2.2kΩx1
SPEAKER	8Ω 1.5 Watt
Sensor	1. Light sensor 2. Magnetic sensor 3. Pressure sensor 4. G-sensor 5. Distance sensor 6. Acceleration sensor 7. Gyroscope 8. Motor
Size	27317220mm
Weight	1090±50g
Language	Multi language

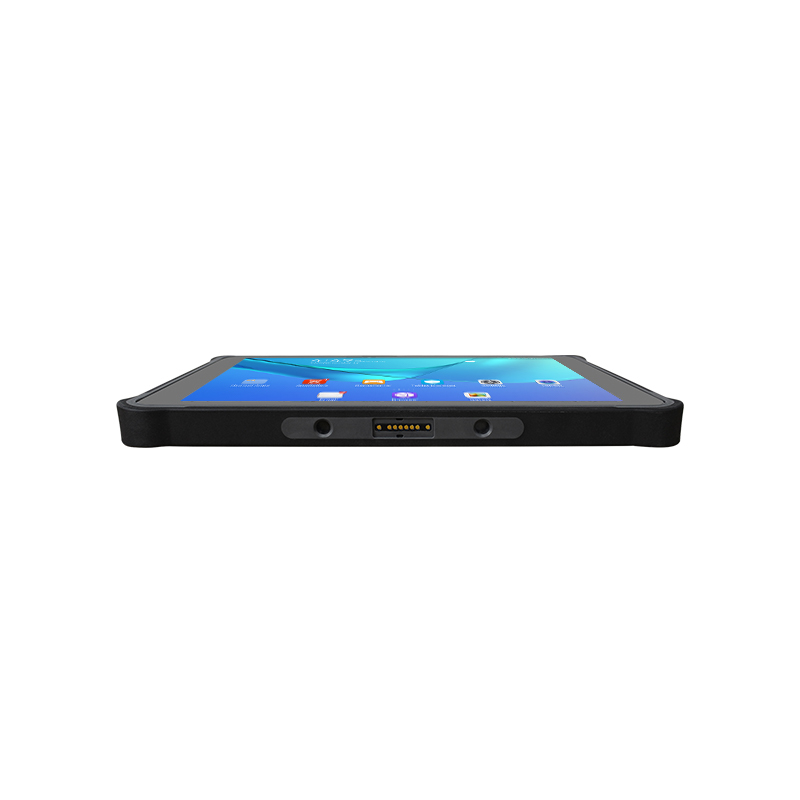

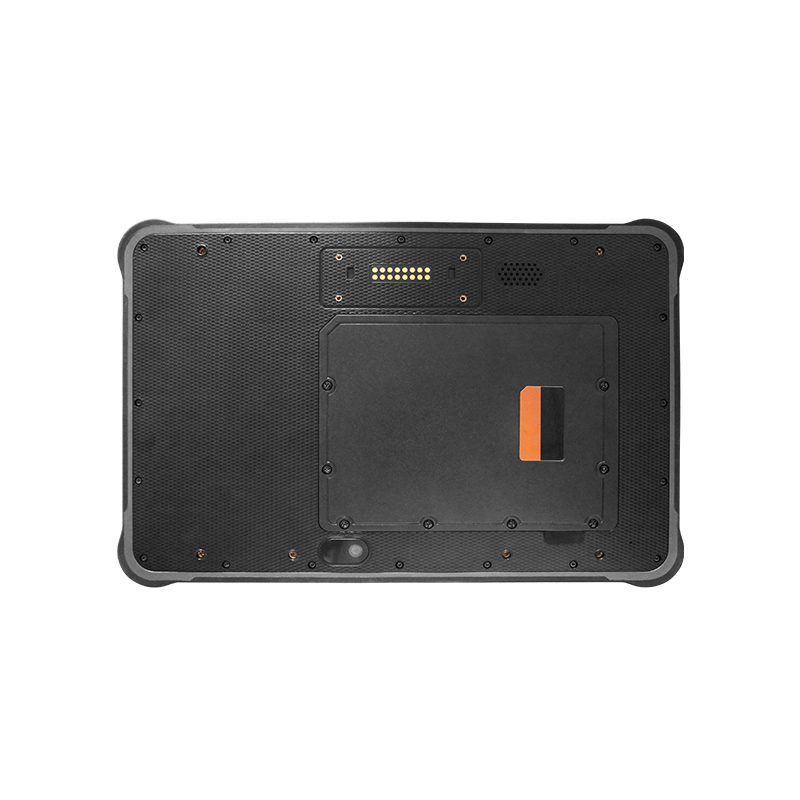

Interface In/Out Port	1. Type-C 1; OTG 2. SIM Card Slot1 3. TF Card Slot1 4. Earphone1 5. DC1; 3.512mm 6. USB 2.0 1 7. RJ451 8. RS232*1	Bottom pogopin: USB 2.0; Charging; RS232 Back pogopin: USB 2.0; RS232
Button	V+ -, Power, "F" for Barcode Scan	Customized Button: P,H (Default No Functionality)
1D/2D Barcode	Optional	Honeywell N4680 Optional
UHF RFID	M-500 Optional	American standard M-500 (902Mhz – 928Mhz) Built in: card reading distance 1-2M External: card reading distance of 3-5M
	M-500 Optional	European standard M-500 (865MHz – 868MHz) Built in: card reading distance 1-2M External: Card reading distance of 3-5M
	M-301 Optional	American standard M-301 (902Mhz – 928Mhz) External: card reading distance of 5-8M
	M-301 Optional	European standard M-301 (865MHz – 868MHz) External: Card reading distance of 5-8M
Accessories	1. Blue Box 2. DC Charger (5V 3A) 3. Carry strap 4. Screw 5. Wrist strap	Optional: 1. Docking Station 2. Car Holder 3. Car Docking
Multi-Media (Hardware Decoding)	1. Photo Viewer: BMP, JPG, GIF, PNG 2. Video Format: MEPG 1/2/4,H.263/H.264, RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) 3. Audio Format: MP3,WMA,WAV,OGG,FLAC,ALAC, APE,AAC,AC-3,DTS (need license)
Proof Degree	Anti-dust & Waterproof IP65 Dropping Resistance 1.2 meters
Certification	1. MIL-STD-810G 2. ISO-9001 3. CE, FCC, 3C
Temperature	Storage Temperature: -25 °C to 80 °C Operation Temperature: -20 °C to 55 °C
