ST9-R2A

Ask a Question

Guarantee safe & secure checkout

Estimated Delivery : 11 - 13 Nov, 2025

Free Shipping & Returns : On all order

SKU : ST9-R2A Category : ST9 Ser. Brand: SINCOOLE

Description

Specification

Update	1 July 2023
ST9-R2 SPEC
ITEM	DESCRIPTION	DETAIL
OS	Android 12.0
CPU	Rockchip RK3588 (Octa Core; 2.4GHz)	Cortex-A76×4 @2.4GHz Cortex-A55×4 @1.8GHz
GPU	ARM Mali G610
RAM/ROM	8GB/256GB，16GB/256GB	8GB/512GB, 16GB/512GB Optional
LCD	8 inch; 1200*1920; IPS	430nits (TYP) (800*1280)1000nits Optional
Touch Screen	10 Point Touch	Support stylus
Camera	Front: 5MP; Rear: 13MP	Flash light
Power and Battery	5000mAh; 7.7V (38.5Wh)
WWAN	LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66 LTE-TDD: B40 WCDMA: B1/B2/B4/B5/B8 GSM: 850/900/1800/1900	Module: SLM770A (EC25-AUX in North America)
GPS	BDS, GPS, GLONASS
WIFI	802.11a/b/g/n/ac/ax Wireless Internet Wireless AP ( Mobile AP )2.4G, 5G; Support WiFi6	WiFi/Bluetooth 2-in-1
BLUETOOTH	5.0 Version	WiFi/Bluetooth 2-in-1
NFC	13.56 MHz, Distance: 1-3cm	ISO14443 TYPE A
MIC	Sensitivity: -32±2d Output Impedance: 2.2kΩx1
SPEAKER	8Ω 1.5 Watt
Sensor	1. Light sensor 2. Magnetic sensor 3. Pressure sensor 4. G-sensor 5. Distance sensor 6. Acceleration sensor 7. Gyroscope 8. Motor
Size	23414416.8mm
Weight	700±50g
Language	Multi language

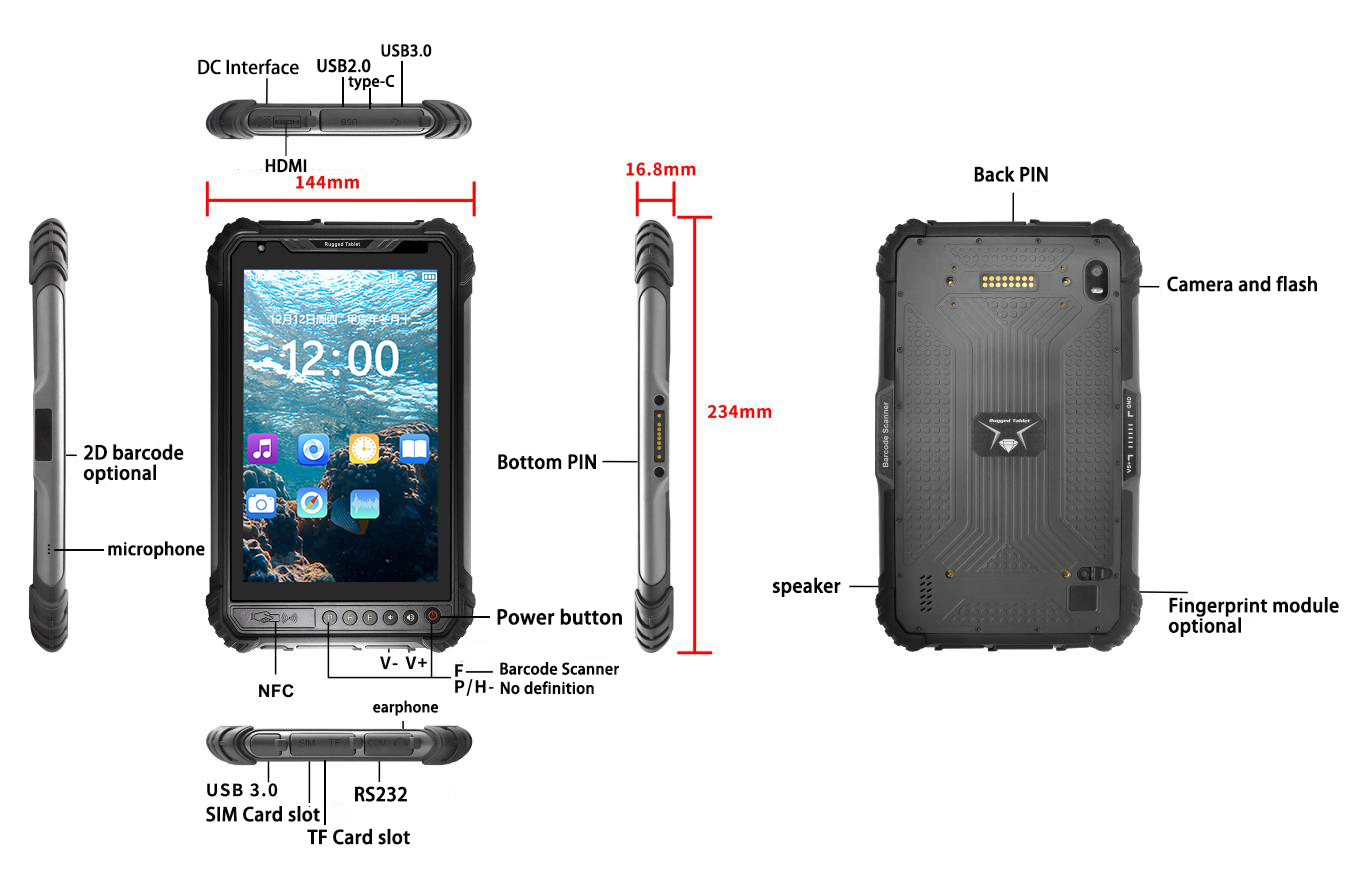

Interface In/Out Port	1. Type-C 1 (Support OTG ; Support fast charging) 2. SIM Card Slot1 3. TF Card Slot1 4. Earphone1 5. DC1; 4.015mm 6. USB 2.0 1 7. USB 3.0 2 8. RS2321 (mini-USB) 9. HDMI1	Bottom pogopin: USB 2.0; Charging; RS232 Back pogopin: USB 2.0; RS232
Button	V+ -, Power, "F" for Barcode Scan	Customized Button: P,H (Default No Functionality)
1D/2D Barcode	Optional	NLS-N1 Optional M1 Optional SE2707 Optional
UHF RFID	M-500 Optional	American standard M-500 (902Mhz – 928Mhz) External: card reading distance of 3-5M
	M-500 Optional	European standard M-500 (865MHz – 868MHz) External: Card reading distance of 3-5M
	M-301 Optional	American standard M-301 (902Mhz – 928Mhz) External: card reading distance of 5-8M
	M-301 Optional	European standard M-301 (865MHz – 868MHz) External: Card reading distance of 5-8M
Fingerprint	Optional	ZAZ-0A0 Optional 1020A Optional
Accessories	1. Blue Box 2. DC Charger (12V 4A) 3. Wrist strap 4. Screw	Optional: 1. Docking Station 2. Car Holder 3. Car Docking
Multi-Media (Hardware Decoding)	1. Photo Viewer: BMP, JPG, GIF, PNG 2. Video Format: MEPG 1/2/4,H.263/H.264, RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) 3. Audio Format: MP3,WMA,WAV,OGG,FLAC,ALAC, APE,AAC,AC-3,DTS (need license)
Proof Degree	Anti-dust & Waterproof IP65 Dropping Resistance 1.2 meters
Certification	1. MIL-STD-810G 2. ISO-9001 3. CE, FCC, 3C
Temperature	Storage Temperature: -25 °C to 80 °C Operation Temperature: -20 °C to 55 °C
