SINSOOLE ST11-A8 Rugged Tablet

Core Specifications & Performance

• Operating System:
  Runs on Android 15.0 with support for GMS, providing access to a vast ecosystem of applications. This allows for easy integration with popular services and software, enhancing productivity and functionality.
• Processor:
  Powered by the MT6877 octa – core processor. With 2 Arm Cortex – A78 cores clocked up to 2.4GHz and 6 Arm Cortex – A55 cores reaching 2.0GHz, it can handle multitasking, data processing, and running resource – intensive applications with ease.
• Memory/Storage:
  • Base configuration: 8GB of RAM and 256GB of ROM.
  • Optional upgrade: 16GB of RAM and 512GB of ROM, catering to users who require more memory for multitasking and larger storage for data – intensive tasks.

Display & Interaction

• Screen:
  The 10.1 – inch IPS screen features a resolution of 1200×1920 and a brightness of 450nits. This ensures sharp and clear visuals, making it easy to view in various lighting conditions, whether indoors or outdoors.
• Touch:
  Supports 10 – point touch and stylus input, enabling precise operation. This is especially useful for tasks that require accuracy, such as data entry or interacting with complex interfaces, even when wearing gloves.

Power & Mobility

• Battery:
  • Main battery: A robust 12000mAh (3.8Vdc, 45.6Wh) battery, complemented by a 2400mAh secondary battery. This provides extended usage time, reducing the need for frequent charging.
  • Charging: Supports PD 18W fast charging via a DC 5V 3A ∮3.5mm port, allowing for quick top – ups and minimizing downtime.
• Design:
  Compact and rugged, measuring 273×172×20mm and weighing 1.1KG (1080±50g). It comes with a carry strap and wrist strap, making it highly portable for use in the field.

Connectivity & Expansion

• Wireless:
  • 5G and LTE: Supports a wide range of 5G and LTE bands (N1/N5/N8/N28AB/N78/N41 for 5G; FDD – LTE, TDD – LTE, WCDMA, CDMA2000, TD – SCDMA, GSM), ensuring reliable mobile connectivity across different regions.
  • WiFi 6: 802.11a/b/g/n/ac/ax wireless technology with 2.4G and 5G support (MT6631N/B module), offering high – speed wireless networking.
  • Bluetooth 5.2: Enables seamless pairing with other devices, and is backward – compatible for broader device compatibility.
  • GPS: Incorporates BDS, GPS, and GLONASS for accurate positioning, which is crucial for applications like asset tracking, navigation, and field service operations.
  • NFC: 13.56 MHz with ISO14443 TYPE A and Mifare support for contactless data transfer and identification.
• Wired Interfaces:
  • 1×Type – C (supporting OTG), 1×SIM card slot, 1×TF card slot, 1×earphone jack, 1×DC 3.5×12mm port, 1×USB 2.0, 1×RJ45, and 1×RS232.

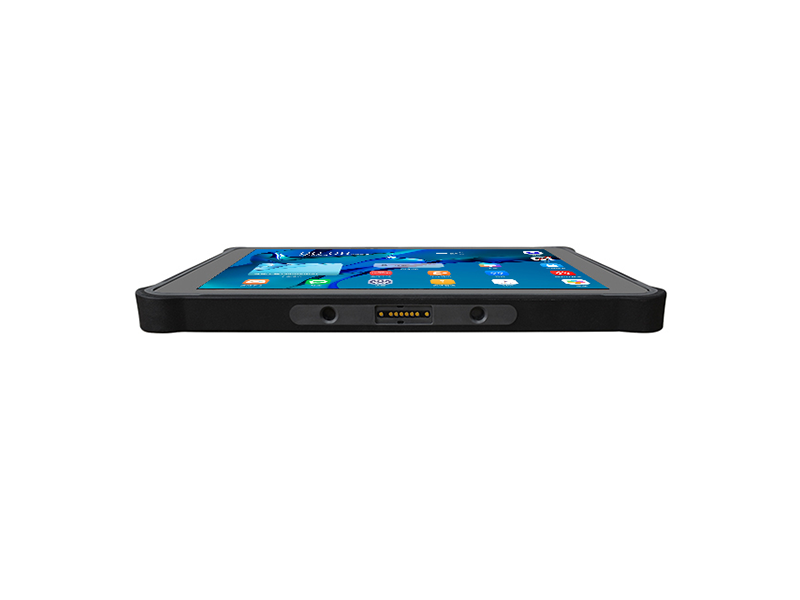

  • Bottom and back pogopin connectors provide additional connectivity options for docking stations, car mounts, and other industrial peripherals. There’s also a reserved EDP interface for potential future expansions.

Durability & Certification

• Rugged Build:
  • Dustproof and waterproof with an IP65 – IP67 rating, and can withstand drops of up to 1.2 meters. This makes it suitable for use in harsh environments, such as construction sites, warehouses, and outdoor fields.
  • Operating Temperature: -20°C to 55°C; Storage Temperature: -25°C to 80°C, ensuring reliable performance in extreme conditions.
• Certifications:
  Complies with MIL – STD – 810G, ISO standards, and has CE, FCC, 3C certifications, guaranteeing quality and safety.

Multimedia & Customization

• Cameras:
  • Front: 8MP camera for video conferencing and self – documentation.
  • Rear: 16MP camera with a flash, suitable for barcode scanning (with optional Honeywell N4680), inspection, and general photography.
• Audio:
  A 1.5 – watt speaker with a reserved dual – speaker interface and support for FM radio. It also has a set of built – in sensors like light, geomagnetic, barometric, G – sensor, acceleration, gyroscope, distance, and a vibrating motor for enhanced user experience.
• Optional Features:
  • UHF RFID (M – 500 or M – 301 with different frequency bands and reading distances), fingerprint sensor (AFM60), and high – precision GPS (UM960) can be added to meet specialized industrial requirements.
  • Customizable buttons (P and H) offer additional functionality tailored to specific user needs.

Accessories & Applications

• Included:
  Comes with a blue box, a 5V 3A DC charger, a carry strap, bag & screws, and a wrist strap.
• Optional:
  Accessories such as docking stations, car holders, and car docking are available for fixed or mobile use cases, expanding the tablet’s usability.
• Ideal For:
  Industrial automation, logistics management, field service operations, inventory tracking, and mobile data collection. Its Android – based system, rugged design, and extensive connectivity make it a reliable choice for these applications.
