SINSOOLE ST11-R2A Rugged Tablet

Core Specifications & Performance

• Operating System:
  Runs on Android 12, offering a user – friendly and customizable platform. It provides access to a vast ecosystem of apps, making it suitable for a wide range of industrial and mobile applications.
• Processor:
  Powered by the Rockchip RK3588 octa – core processor. With 4 Cortex – A76 cores running at 2.4GHz and 4 Cortex – A55 cores at 1.8GHz, it delivers robust performance for multitasking, data processing, and running resource – intensive applications.
• Graphics:
  Features ARM Mali G610 GPU, ensuring smooth visual performance for tasks such as video playback, graphical interfaces, and augmented reality applications.
• Memory/Storage:
  • Base configurations include 8GB/256GB or 16GB/256GB.
  • Optional upgrades to 8GB/512GB or 16GB/512GB are available, catering to users with higher storage and memory requirements.

Display & Interaction

• Screen:
  The 10.1 – inch IPS screen has a resolution of 1200×1920. With a standard brightness of 450nits and an optional 1000nits version, it ensures clear visibility in diverse lighting conditions, including direct sunlight.
• Touch:
  Supports 10 – point touch and stylus input, enabling precise interaction even when wearing gloves or in less – than – ideal conditions.

Power & Mobility

• Battery:
  • Equipped with a 6000mAh (7.6Vdc, 45.6Wh) lithium – ion battery. It offers approximately 8.5 hours of continuous use (at 50% volume, 60% brightness, playing local 1080P video) and a standby time of about 43 days (screen off standby).
  • Charging time is around 4 hours, and it supports a 12V 4A DC charger. An optional 65W Type – C fast – charging charger is also available for quicker charging.
• Design:
  Compact and rugged, measuring 273×172×20mm and weighing 1150±50g. It comes with a carry strap and wrist strap, enhancing portability for use in the field.

Connectivity & Expansion

• Wireless:
  • WWAN: Supports FDD – LTE, TDD – LTE, WCDMA, and GSM networks via the SLM770A module, ensuring reliable mobile connectivity across different regions.
  • WiFi 6 (802.11ax): Dual – band 2.4G/5G with Bluetooth 5.0 (WiFi/Bluetooth 2 – in – 1) for high – speed, low – latency wireless networking.
  • GNSS: Incorporates BDS, GPS, and GLONASS for accurate positioning, which is crucial for applications like asset tracking and navigation.
  • NFC: 13.56 MHz (ISO/IEC 14443A) enables contactless data transfer and identification, useful for access control and payment – related tasks.
• Wired Interfaces:

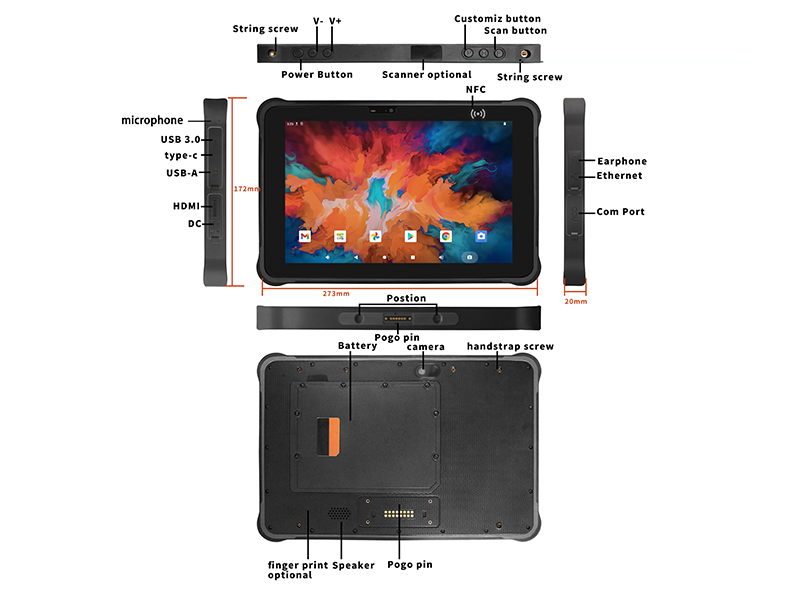

  • 1×RJ45 Ethernet port, 1×RS232, 1×HDMI, 1×Type – C (supporting OTG), 1×USB 2.0, 1×USB 3.0, a SIM card slot, and a TF card slot.

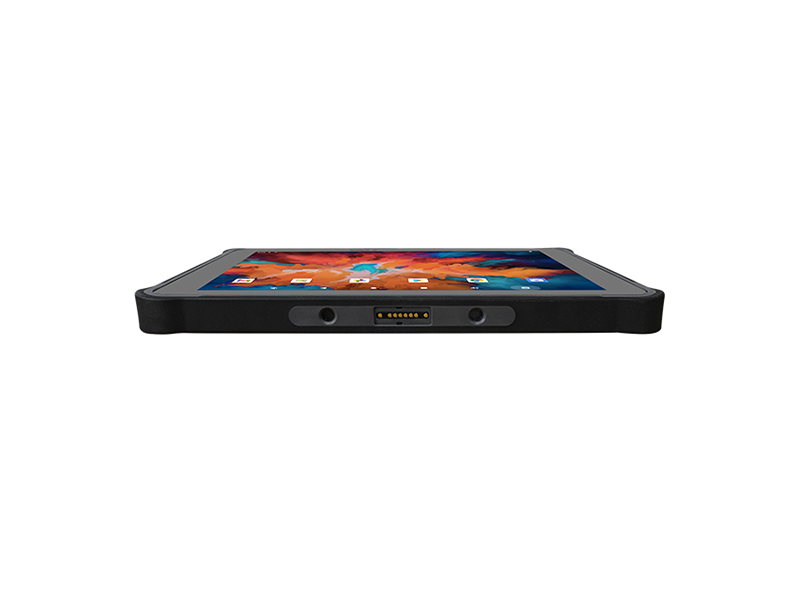

  • Bottom and back pogopin connectors provide additional connectivity options for docking stations, car mounts, and other industrial peripherals.

Durability & Certification

• Rugged Build:
  • IP65 – rated for dustproof and waterproof protection, and can withstand drops of up to 1.2 meters. Complies with MIL – STD – 810G standard, making it suitable for harsh industrial environments, warehouses, and outdoor sites.
  • Operating Temperature: -20°C to 55°C; Storage Temperature: -25°C to 80°C, ensuring reliable performance in extreme conditions.
• Sensors:
  Built – in light, magnetic, pressure, G – sensor, distance, acceleration, gyroscope, and motor sensors enable the tablet to interact with the environment and provide useful data for various applications.

Multimedia & Customization

• Cameras:
  • Front: 5MP camera for video conferencing and self – documentation.
  • Rear: 13MP camera with flash, suitable for barcode scanning (with optional Honeywell N4680), inspection, and general photography.
• Audio:
  An 8Ω 1.5W speaker and a sensitive microphone with – 32±2d sensitivity and 2.2kΩx1 output impedance ensure clear audio for communication and media playback.
• Optional Features:
  • UHF RFID (M – 500 or M – 301 with different frequency bands and reading distances), fingerprint sensor (AFM60), and customizable buttons (P and H) offer additional functionality for specialized industrial workflows.

Accessories & Applications

• Included:
  Comes with a blue box, a 12V 4A DC charger, a carry strap, screws, and a wrist strap.
• Optional:
  Accessories such as docking stations, car holders, and car docking are available for fixed or mobile use cases.
• Ideal For:
  Industrial automation, logistics management, field service operations, inventory tracking, and mobile data collection. Its Android – based system, rugged design, and extensive connectivity make it a reliable choice for these applications.
