SINSOOLE ST9-R2H Rugged Tablet

Core Specifications & Performance

• Operating System:
  Runs on Open Source HarmonyOS 4.1, offering modular design, enhanced security, and native support for IoT ecosystems, ideal for enterprise and industrial workflow optimization.
• Processor:
  Octa-core Rockchip RK3588 (4x Cortex-A76 @ 2.4GHz + 4x Cortex-A55 @ 1.8GHz), delivering powerful multitasking for data collection, real-time processing, and resource-intensive applications.
• Memory/Storage:
  • Base: 8GB RAM + 256GB ROM
  • Optional: 16GB RAM + 256GB/512GB ROM (for heavy-duty computing and large data storage).
• Graphics:
  ARM Mali-G610 GPU ensures smooth 1080P video playback and responsive graphical interfaces for visual tasks.

Display & Interaction

• Screen:
  8-inch IPS LCD with 1200×1920 resolution and optional 1000nits high brightness (ideal for direct sunlight), offering wide viewing angles and crisp visuals.
• Touch:
  10-point capacitive touch with stylus support, enabling precise input even with gloves or in wet conditions.

Power & Portability

• Battery:
  5000mAh (7.7V) rechargeable battery supports all-day operation, with fast charging via Type-C (compatible with 65W fast charger, optional) for minimal downtime.
• Design:

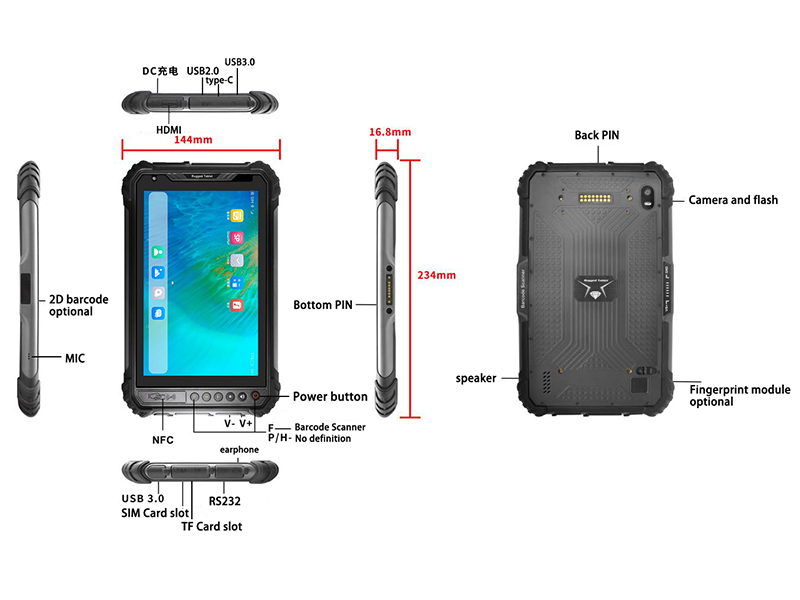

  Ultra-compact at 234×144×16.8mm and lightweight 700±50g, featuring a rugged yet ergonomic build for one-handed use and easy portability in the field.

Connectivity & Expansion

• Wireless:
  • WWAN: Global network support (FDD-LTE/TDD-LTE/WCDMA/GSM) via SLM770A module (EC25-AUX for North America).
  • WiFi 6 (802.11ax): Dual-band 2.4G/5G with Bluetooth 5.0 for high-speed, low-latency wireless connectivity.
  • GPS: Accurate positioning for outdoor and mobile asset tracking.
  • NFC: 13.56MHz (ISO14443 TYPE A) for contactless data transfer and tagging.
• Wired Interfaces:
  • 1×Type-C (OTG/fast charging), 1×USB 2.0, 2×USB 3.0, 1×RS232 (mini-USB), and 1×HDMI for versatile device integration.
  • Pogopin Contacts: Bottom/back connectors for docking stations, car mounts, and industrial peripherals (e.g., barcode scanners).

Durability & Certification

• Rugged Build:
  • IP65-rated dustproof and waterproof, with 1.2m drop resistance (MIL-STD-810G compliant), surviving harsh conditions like factories, warehouses, and outdoor sites.
  • Operating Temperature: -20°C to 55°C; Storage Temperature: -25°C to 80°C.
• Sensors:
  Integrated light, magnetic, G-sensor, gyroscope, and acceleration sensors for environmental monitoring and motion detection.

Multimedia & Input

• Cameras:
  • Front: 5MP (for video conferencing).
  • Rear: 13MP with flash (for documentation, inspections, and optional 1D/2D barcode scanning via NLS-N1/M1/SE2707 modules).
• Audio:
  8Ω 1.5W speaker, sensitive microphone, and 3.5mm earphone jack for clear voice communication in noisy environments.

Customization & Accessories

• Controls:
  Dedicated volume, power, and barcode scan buttons (customizable “P/H” buttons for workflow shortcuts).
• Included Extras:
  DC charger (12V 4A), carry strap, and screws.
• Optional Accessories:
  Docking station, car holder, and car docking for fixed or mobile use cases.
