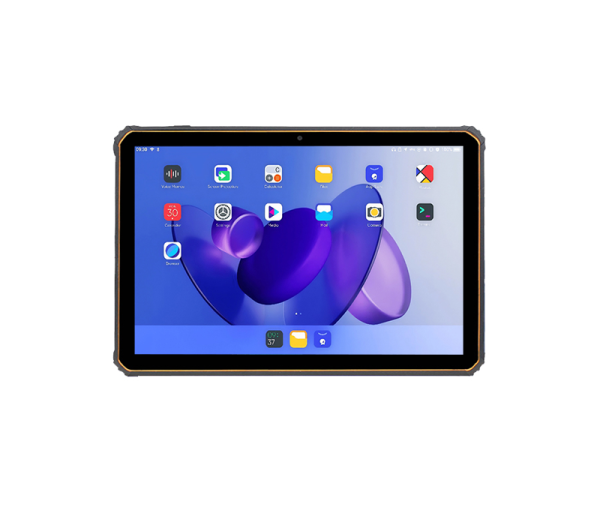

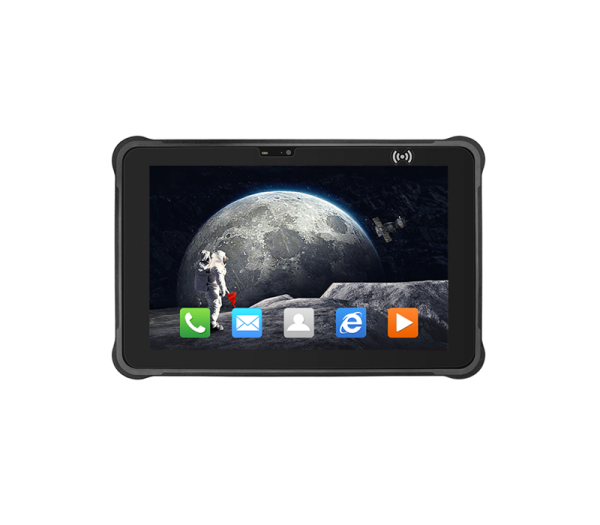

SINSOOLE ST11-A5 Rugged Tablet

Core Specifications & Performance

• Operating System:
  Runs on Android 11, providing a stable and user – friendly platform. It offers access to a vast library of Android applications, facilitating seamless integration with different business and productivity tools.
• Processor:
  • Base model is powered by the MTK MT8788 octa – core, octa – threaded processor running at 2.0GHz. There’s an optional MT6771 processor, giving users the flexibility to choose according to their performance needs.
• Graphics:
  Features the ARM Mali – G72 MP3 GPU, which can handle graphical tasks such as video playback and basic graphical user interfaces smoothly, ensuring a good visual experience.
• Memory/Storage:
  • For the MT8788, options include 4GB/64GB or 8GB/256GB. The MT6771 comes with a 6GB/128GB configuration. These options allow users to select the setup that best suits their multitasking and storage requirements.

Display & Interaction

• Screen:
  The 10.1 – inch IPS screen has a resolution of 1200×1920. With a standard brightness of 450nits and an optional 1000nits version, it ensures clear visibility in different lighting conditions, whether indoors or outdoors.
• Touch:
  Supports 10 – point touch and stylus input, enabling precise operation. This is especially useful for tasks like data entry, navigating complex interfaces, and interacting with touch – based applications, even when wearing gloves.

Power & Mobility

• Battery:
  • Main battery: A large 12000mAh (3.8Vdc, 45.6Wh) battery, supplemented by a 2400mAh secondary battery. This setup provides an impressive usage time of about 24 hours (at 50% volume, 60% brightness, playing local 1080P video) and a standby time that keeps the tablet ready for use.
  • Charging: Takes approximately 5 hours to charge fully with a 5V 3A DC charger, making it convenient for continuous use.
• Design:
  Compact and rugged, measuring 273×172×20mm and weighing 1140±50g. It comes with a carry strap and wrist strap, enhancing its portability for use in the field.

Connectivity & Expansion

• Wireless:
  • WWAN: Supports a wide range of networks including TDD – LTE, FDD – LTE, WCDMA, CDMA2000, TD – SCDMA, and GSM, ensuring reliable mobile connectivity across different regions.
  • WiFi: 802.11a/b/g/n/ac wireless technology with 2.4G and 5G support, enabling high – speed wireless networking.
  • Bluetooth 4.2: Allows for seamless pairing with other devices, such as headphones, speakers, or external keyboards.
  • GPS: Incorporates BDS, GPS, and GLONASS (with a 3 – in – 1 MT6631N module for WiFi/Bluetooth/GPS), providing accurate positioning for applications like asset tracking, navigation, and location – based services.
  • NFC: 13.56 MHz (ISO/IEC 14443A/B; ISO/IEC 15693) enables contactless data transfer and identification, which is useful for tasks like access control and payment processing.
• Wired Interfaces:
  • 1×Type – C (supporting OTG), 1×SIM card slot, 1×TF card slot, 1×earphone jack, 1×DC 3.5×12mm port, 1×USB 2.0, 1×RJ45, 1×RS232, and an HDMI port (only available in the 8 + 256GB model).
  • Bottom and back pogopin connectors offer additional connectivity options for docking stations, car mounts, and other industrial – specific peripherals.

Durability & Certification

• Rugged Build:
  • IP65 – rated for dustproof and waterproof protection, and can withstand drops of up to 1.2 meters. This makes it suitable for use in harsh industrial environments, construction sites, warehouses, and outdoor settings.
  • Operating Temperature: -20°C to 55°C; Storage Temperature: -25°C to 80°C, ensuring reliable performance across a wide range of temperatures.
• Certifications:
  Complies with MIL – STD – 810G, ISO – 9001, and has CE, FCC, 3C certifications, guaranteeing its quality, reliability, and safety.

Multimedia & Customization

• Cameras:
  • Front: 5MP camera for video conferencing and self – documentation.
  • Rear: 13MP camera with a flash, suitable for barcode scanning (with optional Honeywell N4680, NLS – N1, or LV3596), inspection, and general photography.
• Audio:
  An 8Ω 1.5 – watt speaker and a microphone with – 32±2d sensitivity and 2.2kΩx1 output impedance ensure clear audio for communication and media playback.
• Optional Features:
  • 1D/2D barcode scanner (multiple models available), fingerprint sensor (AFM60), and UHF RFID (M – 500 or M – 301 with different frequency bands and reading distances) can be added for specialized industrial applications.
  • Customizable buttons (P and H) offer additional functionality that can be tailored to specific user workflows.

Accessories & Applications

• Included:
  Comes with a blue box, a 5V 3A DC charger, a carry strap, screws, and a wrist strap, providing the essential items for immediate use.
• Optional:
  Accessories such as docking stations, car holders, and car docking are available for fixed or mobile use cases, expanding the tablet’s functionality and usability.
• Ideal For:
  Industrial automation, logistics management, field service operations, inventory tracking, and mobile data collection. Its Android – based system, rugged design, and comprehensive connectivity make it a reliable choice for these applications.
