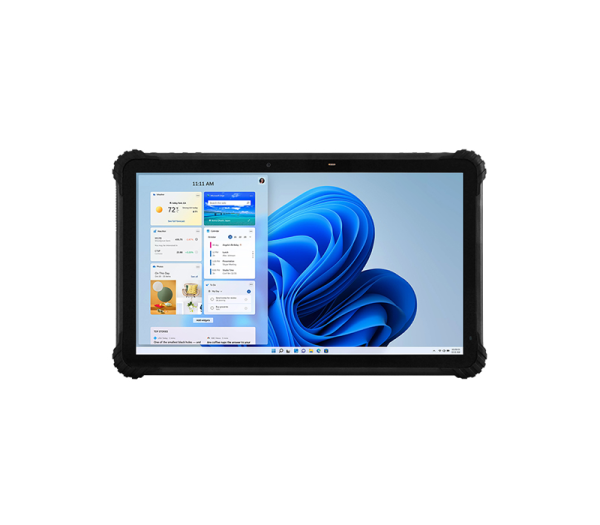

SINSOOLE ST13-J Rugged Tablet

Core Specifications & Performance

• Operating System:
  Runs Windows 10 Pro as standard, with the option to upgrade to Windows 11 Pro. This provides a secure and familiar platform, enabling compatibility with a wide array of industrial software and enterprise applications.
• Processor:
  • Base: Intel Celeron N5100 quad-core, quad-threaded processor. With a base frequency of 1.10GHz and a turbo boost up to 2.80GHz, it offers efficient performance for multitasking, data processing, and running essential industrial applications.
• Graphics and Memory:
  • Graphics: Features UHD Graphics 24 EUs, ensuring smooth visual output for tasks such as video playback and basic graphical interfaces.
  • Memory/Storage:
    • Base Configuration: 8GB of RAM and 256GB of ROM.
    • Optional Configuration: 4GB RAM and 64GB ROM, catering to different performance and storage needs.

Display & Interaction

• Screen:
  The 13.3-inch IPS LCD screen features a resolution of 1080×1920, delivering sharp and clear visuals. With a minimum brightness of 260nits and a typical brightness of 400nits, it ensures good visibility in various lighting conditions, including outdoor settings.
• Touch:
  Supports 10-point touch and stylus input, allowing for precise interaction even when wearing gloves or in wet conditions, enhancing usability in the field.

Power & Mobility

• Battery:
  • Equipped with an 8000mAh (7.6Vdc, 60.80Wh) lithium-ion battery, with a 6000mAh option available. It provides sufficient power for extended operation in the field.
  • Powered by a 12V 4A DC charger, ensuring reliable charging for continuous use.
• Design:
  Compact and rugged at 330×205×19.5mm and weighing 1450±50g, it comes with a wrist strap, facilitating easy portability and one-handed operation in mobile work scenarios.

Connectivity & Expansion

• Wireless:
  • WiFi: 802.11a/b/g/n/ac wireless technology, supporting 2.4G and 5G frequencies, ensuring fast and stable wireless connections.
  • Bluetooth: Bluetooth 4.2 (Intel® Dual Band Wireless – AC 7265 module) for seamless pairing with other devices.
  • WWAN: 4G WWAN capabilities (FDD – LTE, TDD – LTE, WCDMA, GSM/EDGE) via the SLM770A module (EC25 – AUX in North America), enabling connectivity in various locations.
  • Positioning: Incorporates BDS, GPS, and GLONASS for accurate positioning, essential for applications like asset tracking and navigation.
  • NFC: 13.56 MHz NFC (ISO14443 TYPE A) enables contactless data transfer and identification, enhancing functionality in access control and data exchange tasks.
• Wired Interfaces:
  • 2×USB 3.0, 1×HDMI, an anti – theft lock hole, 2×aviation interfaces (customized and RS232, with RS232 having limited functionality), a SIM card slot, a TF card slot, a 3.5mm headphone jack, and an Ethernet RJ45 port for 10/100/1000M connections. The bottom pogopin provides USB 2.0, RS232, and charging functions.

Durability & Certification

• Rugged Build:
  • IP65-rated for dustproof and waterproof protection, and can withstand drops of up to 1.2 meters. Complies with MIL – STD – 810G standard, making it suitable for harsh industrial, construction, and outdoor environments.
  • Operating Temperature: -20°C to 55°C; Storage Temperature: -25°C to 80°C, ensuring reliable performance in extreme conditions.

Multimedia & Customization

• Cameras:
  • Front: 5MP front-facing camera for video conferencing and communication.
  • Rear: 13MP rear-facing camera, suitable for tasks such as barcode scanning (with optional Honeywell N4680 or NLS – N1 scanners), documentation, and inspection.
• Audio:
  Two 8Ω 1.0-watt speakers and a sensitive microphone with a sensitivity of – 32±2d and an output impedance of 2.2kΩx1 ensure clear audio for communication and playback.
• Optional Features:
  Customizable buttons (P and H) that can be programmed according to specific user requirements, along with dedicated volume, power, and barcode scan buttons for enhanced usability.

Accessories & Applications

• Included:
  Comes with a blue box, a DC charger, a carry strap, screws, and a wrist strap, providing essential accessories for immediate use.
• Optional:
  Accessories such as docking stations, car holders, and other custom peripherals are available for fixed or mobile use cases.
• Ideal For:
  Industrial automation, logistics management, field service operations, inventory tracking, and other enterprise mobility scenarios where reliable performance, connectivity, and rugged durability are crucial.
