SINSOOLE ST8-A5 Rugged Tablet

Core Specifications & Performance

• Operating System:
  Runs on Android 11.0, providing a stable and user – friendly platform. Android 11 offers a wide range of applications through the Google Play Store, enabling seamless integration with various software for enhanced productivity. Whether it’s for inventory management, data collection, or communication, Android 11 ensures a smooth user experience.
• Processor:
  • The base model is powered by the MTK MT8788 octa – core, octa – threaded processor running at 2.0GHz. There’s an optional MT6771 processor, giving users the flexibility to choose according to their performance needs.
• Graphics:
  Features the ARM Mali – G72 MP3 GPU, which can handle graphical tasks such as video playback, graphical user interfaces, and light – weight gaming or augmented reality applications. It ensures a smooth visual experience for users, whether they are viewing product images, watching training videos, or using applications with graphical elements.
• Memory/Storage:
  • For the MT8788, options include 4GB/64GB or 8GB/256GB. The MT6771 comes with a 6GB/128GB configuration. These options allow users to select the setup that best suits their multitasking and storage requirements. For example, users with basic requirements may opt for the 4GB/64GB version, while those who need to run multiple applications simultaneously and store more data can choose the 8GB/256GB or 6GB/128GB options.

Display & Interaction

• Screen:
  The 8 – inch IPS screen has a resolution of 1200×1920. With a typical brightness of 330nits and a maximum of 390nits, it offers clear visuals in different lighting conditions. Whether used indoors or outdoors, users can expect to view content without much difficulty.
• Touch:
  Supports 10 – point touch and stylus input, enabling precise operation. This is especially useful for tasks like data entry, navigating through complex interfaces, and interacting with touch – based applications, even when wearing gloves. It allows for a more natural and efficient way of interacting with the tablet.

Power & Mobility

• Battery:
  • Equipped with a 7800mAh (3.8V) battery, providing sufficient power for extended use in the field. While the charging time isn’t specified, it comes with a 5V 3A DC charger, which is a common and convenient charging solution.
• Design:

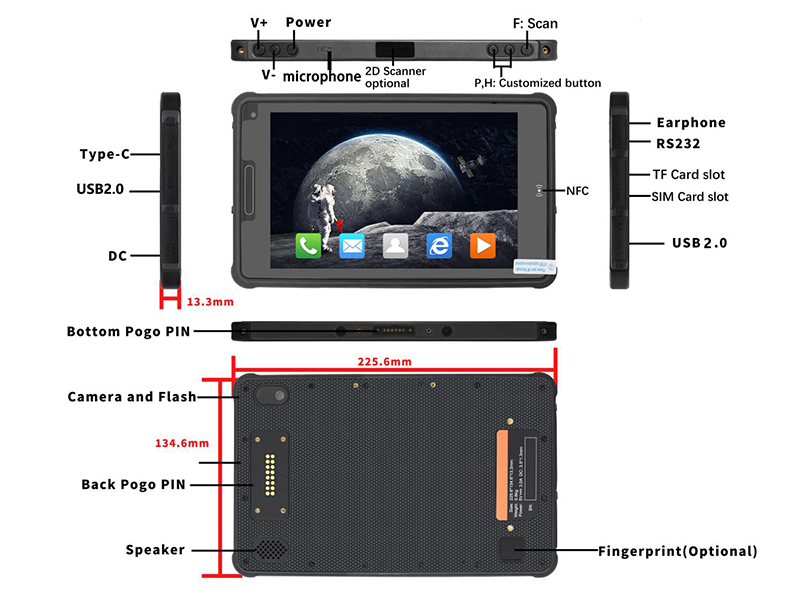

  Compact and lightweight, measuring 225.6×134.6×13.3mm and weighing 570±20g. Its portable design, along with the included wrist strap, makes it easy to carry around during field operations. The tablet’s size and weight ensure that it can be easily transported and used in various work scenarios.

Connectivity & Expansion

• Wireless:
  • WWAN: Supports a wide range of networks including TDD – LTE, FDD – LTE, WCDMA, CDMA2000, TD – SCDMA, and GSM, covering a broad spectrum of frequency bands. This ensures reliable mobile connectivity across different regions, allowing for seamless communication and data transfer on the go.
  • WiFi: 802.11a/b/g/n/ac wireless technology with 2.4G and 5G support, enabling high – speed wireless networking. This allows users to connect to local networks or create a mobile access point for other devices.
  • Bluetooth 4.2: Allows for seamless pairing with other devices, such as headphones, speakers, or external keyboards.
  • GPS: Incorporates BDS, GPS, and GLONASS (with a 3 – in – 1 MT6631N module for WiFi/Bluetooth/GPS), providing accurate positioning for applications like asset tracking, navigation, and location – based services.
  • NFC: 13.56 MHz (ISO/IEC 14443A/B; ISO/IEC 15693) enables contactless data transfer and identification, useful for access control and payment – related tasks.
• Wired Interfaces:
  • 1×Type – C (supporting OTG), 1×SIM card slot, 1×TF card slot, 1×earphone jack, 1×DC 3.5×15mm port, 2×USB 2.0, and 1×RS232 (mini – USB).
  • Bottom and back pogopin connectors offer additional connectivity options for docking stations, car mounts, and other industrial – specific peripherals. This allows for easy connection to external devices and expansion of the tablet’s functionality.

Durability & Certification

• Rugged Build:
  • IP65 – rated for dustproof and waterproof protection, and can withstand drops of up to 1.2 meters. This makes it suitable for use in harsh industrial environments, construction sites, warehouses, and outdoor settings. It can endure the rigors of daily use in challenging conditions without compromising performance.
  • Operating Temperature: -20°C to 55°C; Storage Temperature: -25°C to 80°C, ensuring reliable performance across a wide range of temperatures.
• Certifications:
  Complies with MIL – STD – 810G, ISO – 9001, and has CE, FCC, 3C certifications, guaranteeing its quality, reliability, and safety. These certifications ensure that the tablet meets international standards for durability and performance.

Multimedia & Customization

• Cameras:
  • Front: 5MP camera for video conferencing and self – documentation.
  • Rear: 13MP camera with a flash, suitable for barcode scanning (with optional NLS – N1, M1, or SE2707 scanners), inspection, and general photography.
• Audio:
  An 8Ω 1.5 – watt speaker and a microphone with – 32±2d sensitivity and 2.2kΩx1 output impedance ensure clear audio for communication and media playback. Whether it’s for voice calls or listening to audio instructions, the audio quality is reliable.
• Optional Features:
  • 1D/2D barcode scanner (multiple models available), UHF RFID (M – 500 or M – 301 with different frequency bands and reading distances), fingerprint sensor (ZAZ – 0A0 or 1020A), and customizable buttons (P and H) offer additional functionality that can be tailored to specific user workflows. These features enhance the tablet’s versatility for different industrial applications.

Accessories & Applications

• Included:
  Comes with a blue box, a 5V 3A DC charger, a wrist strap, and screws, providing the essential items for immediate use.
• Optional:
  Accessories such as docking stations, car holders, and car docking are available for fixed or mobile use cases, expanding the tablet’s functionality and usability. For example, a docking station can be used to connect the tablet to multiple devices in a stationary work environment, while a car holder is useful for mobile workers who need to use the tablet while on the move.
• Ideal For:
  Ideal for industries such as logistics, field service, and inventory management where cost – effectiveness, long – battery life, and Android compatibility are key requirements. Its Android – based system, rugged design, and connectivity options make it a reliable choice for these applications.
