SINSOOLE ST9-T Rugged Tablet

Core Specifications & Performance

• Operating System:
  Runs on Android 10.0, providing a stable and user – friendly platform. It offers access to a vast ecosystem of Android applications, enabling seamless integration with various software for enhanced productivity.
• Processor:
  Powered by the Unisoc T7510 octa – core, octa – threaded processor. With 4 Arm Cortex – A55 cores running at 1.8GHz and 4 Arm Cortex – A75 cores reaching 2.0GHz, it can efficiently handle multitasking, data processing, and running resource – intensive applications.
• Graphics:
  Features the powerVR GM9446 GPU, ensuring smooth visual performance for tasks such as video playback, graphical user interfaces, and light – weight gaming or augmented reality applications.
• Memory/Storage:
  Comes with an 8GB/256GB configuration, providing sufficient memory for running multiple applications simultaneously and ample storage for storing data, documents, and applications.

Display & Interaction

• Screen:
  The 8 – inch IPS screen has a resolution of 1200×1920. With a typical brightness of 370nits and a maximum of 390nits, it offers clear visuals in different lighting conditions, whether used indoors or outdoors.
• Touch:
  Supports 10 – point touch and stylus input, enabling precise operation. This is especially useful for tasks like data entry, navigating complex interfaces, and interacting with touch – based applications, even when wearing gloves.

Power & Mobility

• Battery:
  • Equipped with a 7800mAh (3.8V) battery. It offers an impressive usage time of 16.5 hours (at 50% volume, 60% brightness, playing local 1080P video) and takes about 6 hours to charge fully with a 5V 3A DC charger.
• Design:

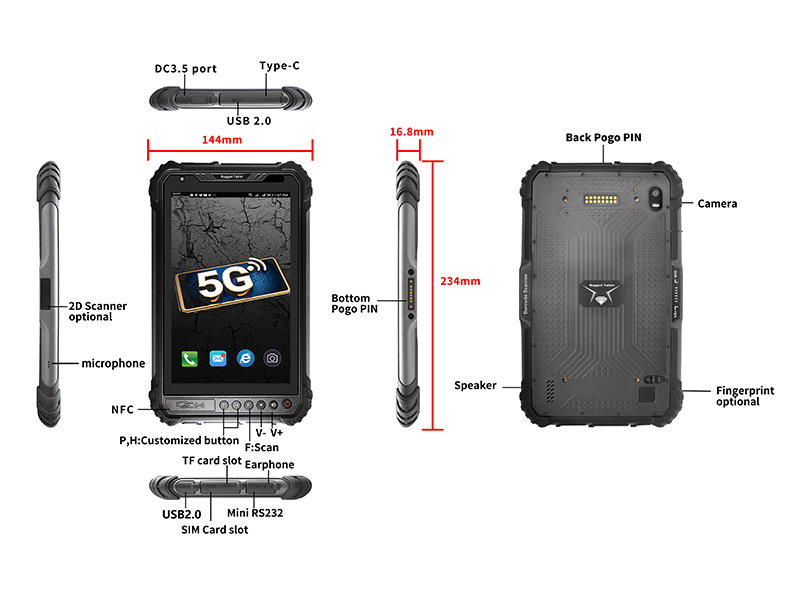

  Compact and lightweight, measuring 234×144×16.8mm and weighing 630±20g. Its portable design, along with the included wrist strap, makes it easy to carry around during field operations.

Connectivity & Expansion

• Wireless:
  • WWAN: Supports 2G GSM, 3G WCDMA, 4G LTE, and 5G networks, covering a wide range of frequency bands. This ensures reliable mobile connectivity across different regions, allowing for seamless communication and data transfer on the go.
  • WiFi: 802.11a/b/g/n/ac wireless technology with 2.4G and 5G support, enabling high – speed wireless networking.
  • Bluetooth 5.0: Allows for seamless pairing with other devices, such as headphones, speakers, or external keyboards.
  • GPS: Incorporates BDS, GPS, and GLONASS, providing accurate positioning for applications like asset tracking, navigation, and location – based services.
  • NFC: 13.56 MHz (ISO14443 TYPE A) enables contactless data transfer and identification, useful for access control and payment – related tasks.
• Wired Interfaces:
  • 1×Type – C (supporting OTG), 1×SIM card slot, 1×TF card slot, 1×earphone jack, 1×DC 3.5×15mm port, 2×USB 2.0, and 1×RS232 (mini – USB).
  • Bottom and back pogopin connectors offer additional connectivity options for docking stations, car mounts, and other industrial – specific peripherals.

Durability & Certification

• Rugged Build:
  • IP65 – rated for dustproof and waterproof protection, and can withstand drops of up to 1.2 meters. This makes it suitable for use in harsh industrial environments, construction sites, warehouses, and outdoor settings.
  • Operating Temperature: -20°C to 55°C; Storage Temperature: -25°C to 80°C, ensuring reliable performance across a wide range of temperatures.
• Certifications:
  Complies with MIL – STD – 810G, ISO – 9001, and has CE, FCC, 3C certifications, guaranteeing its quality, reliability, and safety.

Multimedia & Customization

• Cameras:
  • Front: 5MP camera for video conferencing and self – documentation.
  • Rear: 13MP camera with a flash, suitable for barcode scanning (with optional NLS – N1, M1, or SE2707 scanners), inspection, and general photography.
• Audio:
  An 8Ω 1.5 – watt speaker and a microphone with – 32±2d sensitivity and 2.2kΩx1 output impedance ensure clear audio for communication and media playback.
• Optional Features:
  • 1D/2D barcode scanner (multiple models available), UHF RFID (M – 500 or M – 301 with different frequency bands and reading distances), fingerprint sensor (ZAZ – 0A0 or 1020A), and customizable buttons (P and H) offer additional functionality that can be tailored to specific user workflows.

Accessories & Applications

• Included:
  Comes with a blue box, a 5V 3A DC charger, a wrist strap, and screws, providing the essential items for immediate use.
• Optional:
  Accessories such as docking stations, car holders, and car docking are available for fixed or mobile use cases, expanding the tablet’s functionality and usability.
• Ideal For:
  Ideal for industries such as logistics, field service, and inventory management where durability, long – battery life, and Android compatibility are key requirements. Its Android – based system, rugged design, and connectivity options make it a reliable choice for these applications.
