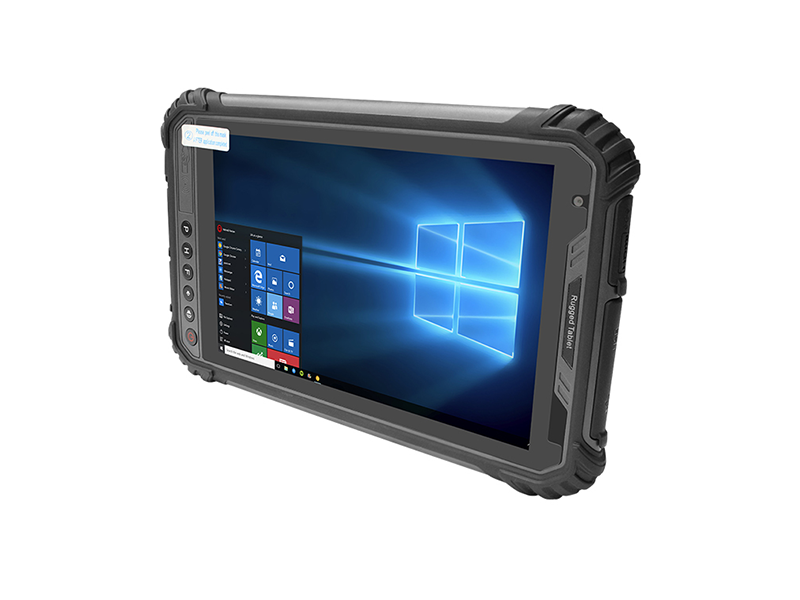

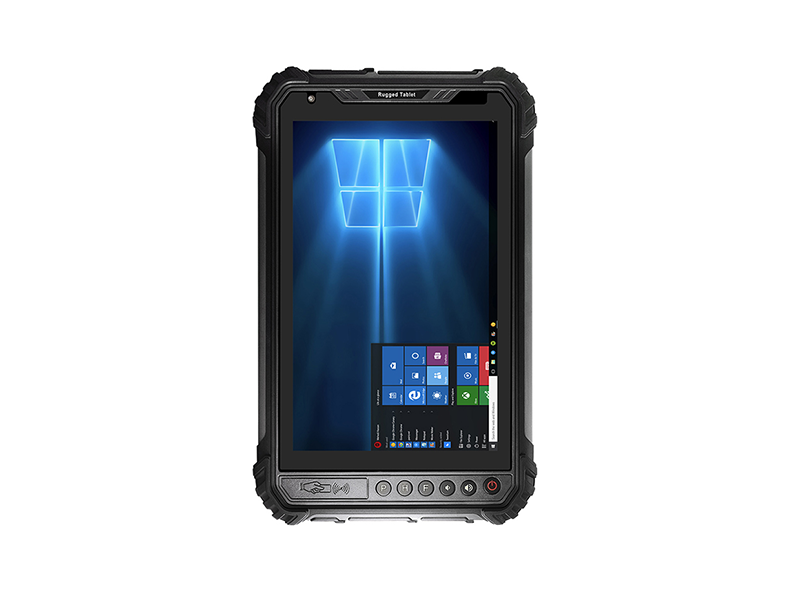

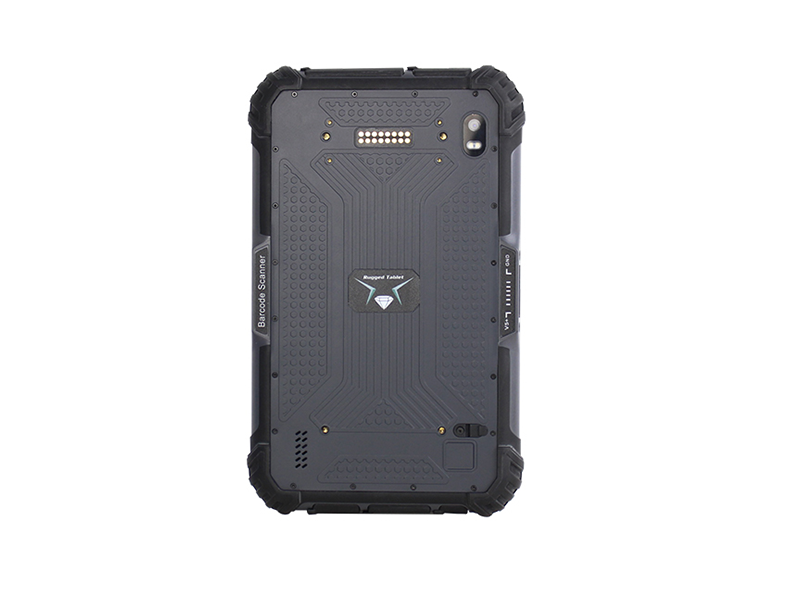

SINSOOLE ST9-W Rugged Tablet

Core Specifications & Performance

• Operating System:
  Runs Windows 10 Pro as the primary option, with the flexibility to choose Windows 10 Home or Windows 10 Iot. This provides a familiar and secure platform for running a wide range of software, from enterprise – level applications to IoT – specific programs.
• Processor:
  Powered by the Intel Cherry Trail Z8350 quad – core, quad – threaded processor. With a base frequency of 1.44GHz that can turbo up to 1.92GHz, it can handle multitasking and basic data processing tasks efficiently, making it suitable for various industrial and mobile operations.
• Graphics:
  Features Intel HD Graphics 400, which can support smooth visual output for tasks such as video playback, graphical user interfaces, and light – weight graphical applications.
• Memory/Storage:
  Comes with a 4GB/64GB configuration, providing sufficient memory for running multiple applications simultaneously and enough storage for storing essential data, documents, and applications.

Display & Interaction

• Screen:
  The 8 – inch IPS screen has a resolution of 1200×1920 and a maximum brightness of 400nits. This ensures clear visuals in different lighting conditions, whether used indoors or outdoors.
• Touch:
  Supports 10 – point touch and stylus input, enabling precise operation. This is beneficial for tasks like data entry, navigating through complex interfaces, and interacting with touch – based applications, even when wearing gloves.

Power & Mobility

• Battery:
  • Equipped with a 7800mAh (3.8V) battery. It offers a usage time of 7.5 hours (at 50% volume, 60% brightness, playing local 1080P video) and takes 3.5 hours to charge fully with a 5V 3A DC charger.
• Design:
  Compact and lightweight, measuring 234×144×16.8mm and weighing 670±20g. Its portable design, along with the included wrist strap, makes it easy to carry around during field operations.

Connectivity & Expansion

• Wireless:
  • WWAN: Supports TDD – LTE, FDD – LTE, WCDMA, and GSM networks via the SLM770A module (EC25 – AUX in North America), ensuring reliable mobile connectivity across different regions.
  • WiFi: 802.11a/b/g/n/ac wireless technology with 2.4G and 5G support (Intel Stone Peak 3165 module), enabling high – speed wireless networking.
  • Bluetooth 4.2: Allows for seamless pairing with other devices, such as headphones, speakers, or external keyboards.
  • GPS: Incorporates BDS, GPS, and GLONASS, providing accurate positioning for applications like asset tracking, navigation, and location – based services.
  • NFC: 13.56 MHz (ISO14443 TYPE A) enables contactless data transfer and identification, useful for access control and payment – related tasks.
• Wired Interfaces:
  • 1×HDMI, 1×SIM card slot, 1×RS232 (mini – USB), 1×earphone jack, 1×DC 3.5×15mm port, and 2×USB 3.0 + 1×USB 2.0 ports.
  • Bottom and back pogopin connectors offer additional connectivity options for docking stations, car mounts, and other industrial – specific peripherals.

Durability & Certification

• Rugged Build:
  • IP65 – rated for dustproof and waterproof protection, and can withstand drops of up to 1.2 meters. This makes it suitable for use in harsh industrial environments, construction sites, warehouses, and outdoor settings.
  • Operating Temperature: -20°C to 55°C; Storage Temperature: -25°C to 80°C, ensuring reliable performance across a wide range of temperatures.
• Certifications:
  Complies with MIL – STD – 810G, ISO – 9001, and has CE, FCC, 3C certifications, guaranteeing its quality, reliability, and safety.

Multimedia & Customization

• Cameras:
  • Front: 2MP camera for video conferencing and self – documentation.
  • Rear: 5MP camera, suitable for barcode scanning (with optional NLS – N1, M1, or SE2707 scanners), inspection, and general photography.
• Audio:
  An 8Ω 1.5 – watt speaker and a microphone with – 32±2d sensitivity and 2.2kΩx1 output impedance ensure clear audio for communication and media playback.
• Optional Features:
  • 1D/2D barcode scanner (multiple models available), UHF RFID (M – 500 or M – 301 with different frequency bands and reading distances), fingerprint sensor (ZAZ – 0A0 or 1020A), and high – precision GPS (UM960) can be added for specialized industrial applications.

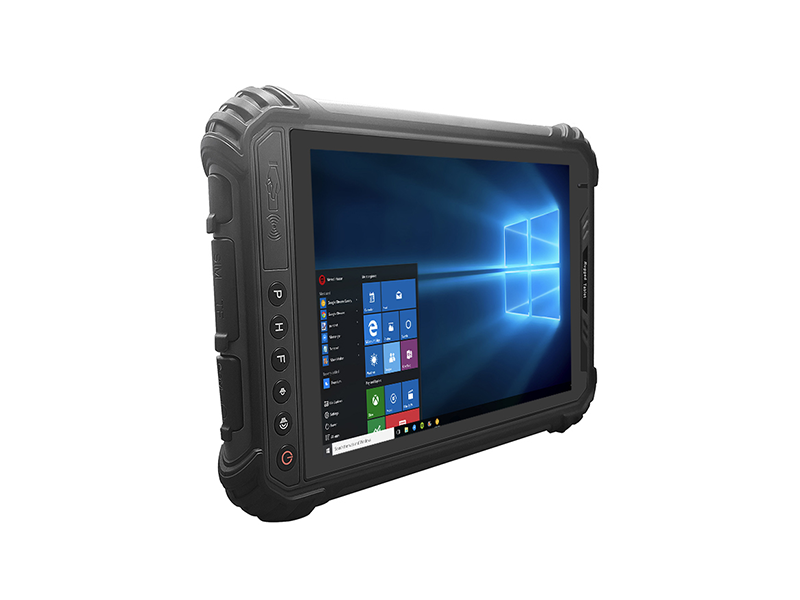

  • Customizable buttons (P and H) offer additional functionality that can be tailored to specific user workflows.

Accessories & Applications

• Included:
  Comes with a blue box, a 5V 3A DC charger, a wrist strap, and screws, providing the essential items for immediate use.
• Optional:
  Accessories such as docking stations, car holders, and car docking are available for fixed or mobile use cases, expanding the tablet’s functionality and usability.
• Ideal For:
  Ideal for industries such as logistics, field service, and inventory management where cost – effectiveness, durability, and Windows compatibility are key requirements. Its Windows – based system, rugged design, and connectivity options make it a reliable choice for these applications.
