SINSOOLE SH5-W: A Versatile and Durable Mobile Computer

Core Specifications & Performance

• Operating System:
  Runs on Windows 10 Pro as the primary option, with the flexibility to choose Windows 10 Home or Windows 10 Iot. Windows 10 Pro offers a secure and feature – rich platform for running a wide range of software applications. The different editions allow users to tailor the device to their specific requirements, whether it’s for basic home use, enterprise – level operations, or IoT – related tasks.
• Processor:
  Powered by the Intel Cherry Trail Z8350 quad – core, quad – threaded processor. With a base frequency of 1.44GHz that can turbo boost up to 1.92GHz, it can handle multitasking and basic data processing tasks efficiently. This makes it suitable for running multiple applications simultaneously, such as inventory management software and communication tools.
• Graphics:
  Features Intel HD Graphics 400, which can support smooth visual output for tasks like video playback, graphical user interfaces, and light – weight graphical applications. It ensures a decent visual experience for users, whether they are viewing product images or watching training videos.
• Memory/Storage:
  Comes with a 4GB/64GB configuration, providing sufficient memory for running multiple applications simultaneously and enough storage for storing essential data, documents, and applications. While it may not be as high – end as some other models, it offers a practical balance for users with moderate storage and multitasking needs.

Display & Interaction

• Screen:
  The 5.5 – inch IPS screen has a resolution of 1080×1920 and a brightness of 400nits. This provides sharp and clear visuals, making it easy to view content, whether it’s text – based documents, images, or videos. The IPS technology ensures wide viewing angles, allowing users to view the screen from different positions without loss of clarity.
• Touch:
  Supports 5 – point touch, enabling users to perform basic touch – based operations such as tapping, swiping, and pinching. While it may not have as many touch – points as some high – end devices, it still offers a responsive and practical touch experience for most common tasks.

Power & Mobility

• Battery:
  • Equipped with a 5000mAh (3.8V, 19.0Wh) battery. It takes about 4 hours to charge fully with a 5V 3A DC charger and offers a usage time of 5.5 hours (at 50% volume, 60% brightness, playing local 1080P video). The battery life is sufficient for extended use in the field, and the charging time is reasonable, allowing users to quickly recharge the device during breaks.
• Design:

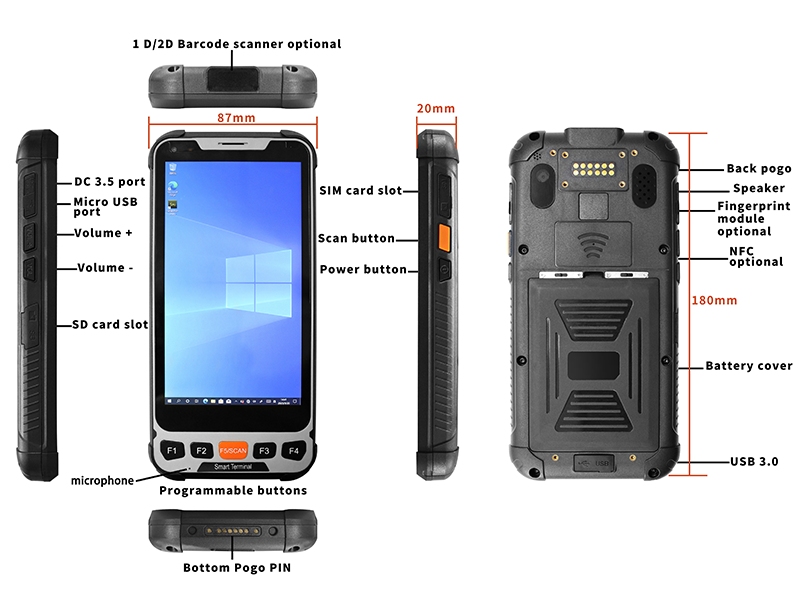

  Compact and lightweight, measuring 180×87×20mm and weighing 350±20g. Its portable design, along with the included carry strap, makes it easy to carry around during field operations. The device’s size and weight ensure that it can be easily transported and used in various work scenarios.

Connectivity & Expansion

• Wireless:
  • WWAN: Supports 4G LTE, 3G WCDMA, and GSM networks. Depending on the region, it can use the EG91 – EX (European Standards) or EG91 – NAX (American Standard) modules, covering different frequency bands (FDD – LTE, WCDMA, GSM). This ensures reliable mobile connectivity across different regions, allowing for seamless communication and data transfer on the go.
  • WiFi: 802.11a/b/g/n/ac wireless technology with 2.4G and 5G support (Intel Stone Peak 3165 module), enabling high – speed wireless networking. Users can connect to local networks or create a mobile access point for other devices.
  • Bluetooth 4.2: Allows for seamless pairing with other devices, such as headphones, speakers, or external keyboards.
  • GPS: Incorporates BDS, GPS, and GLONASS, providing accurate positioning for applications like asset tracking, navigation, and location – based services.
  • NFC: 13.56 MHz (ISO14443; TYPE A; Mifare) enables contactless data transfer and identification, useful for access control and payment – related tasks.
• Wired Interfaces:
  • 1×Micro USB (supporting OTG), 1×SIM card slot, 1×TF card slot, 1×USB 3.0, and 1×DC 3.5×12mm port.
  • Bottom and back pogopin connectors offer additional connectivity options for docking stations, which can be used to connect the device to larger displays, keyboards, or other accessories for a more desktop – like experience when needed.

Durability & Certification

• Rugged Build:
  • IP65 – rated for dustproof and waterproof protection, and can withstand drops of up to 1.2 meters. This makes it suitable for use in harsh industrial environments, construction sites, warehouses, and outdoor settings. It can endure the rigors of daily use in challenging conditions without compromising performance.
  • Operating Temperature: -20°C to 55°C; Storage Temperature: -25°C to 80°C, ensuring reliable performance across a wide range of temperatures.
• Certifications:
  Complies with MIL – STD – 810G, ISO – 9001, and has CE, FCC, 3C certifications, guaranteeing its quality, reliability, and safety. These certifications ensure that the device meets international standards for durability and performance.

Multimedia & Customization

• Cameras:
  • Front: 2MP camera for video conferencing and self – documentation.
  • Rear: 5MP camera (using 2M (GC2355) or 5M (OV5648) sensors), suitable for barcode scanning (with optional 2D Honeywell N4680, 2D RAKINDA LV3296, 1D N4315 scanners), inspection, and general photography.
• Audio:
  An 8Ω 1.0 – watt speaker and a microphone with – 32±2d sensitivity and 2.2kΩx1 output impedance ensure clear audio for communication and media playback. Whether it’s for voice calls or listening to audio instructions, the audio quality is reliable.
• Optional Features:
  • 1D/2D barcode scanners (multiple models available), UHF RFID (American and European standard M500 with different reading distances), fingerprint sensor (1020A optional), and customizable buttons (F1, F2, F3, F4) offer additional functionality that can be tailored to specific user workflows. These features enhance the device’s versatility for different industrial applications.

Accessories & Applications

• Included:
  Comes with a blue box, a 5V 3A DC charger, a carry strap, and screws, providing the essential items for immediate use.
• Optional:
  A docking station is available as an optional accessory. The docking station can enhance the device’s functionality by allowing it to be connected to multiple external devices, such as monitors, keyboards, and printers, transforming it into a more versatile workstation when needed.
• Ideal For:
  Ideal for industries such as logistics, field service, and inventory management where cost – effectiveness, Windows compatibility, and ruggedness are key requirements. Its Windows – based system, rugged design, and connectivity options make it a reliable choice for these applications.
