SINSOOLE SM5-T Rugged Phone

Core Specifications & Performance

• Operating System:
  Runs on Android 13.0, providing a stable and feature – rich platform. Android 13 offers enhanced security, improved performance, and access to the latest applications, ensuring a seamless user experience for various tasks.
• Processor:
  • The base model is powered by the Unisoc T616 (T7250) octa – core processor, running at 1.8GHz. There’s also an optional Unisoc T606 processor, allowing users to choose based on their performance requirements.
• Graphics:
  Features the Mali – G57 MP1 GPU clocked at 850MHz, which can handle graphical tasks such as video playback, gaming, and running graphical user interfaces smoothly.
• Memory/Storage:
  • Available in two configurations: 4GB/64GB and 8GB/128GB. The different options enable users to select the setup that best suits their multitasking and storage needs, whether it’s running multiple applications simultaneously or storing large amounts of data.

Display & Interaction

• Screen:

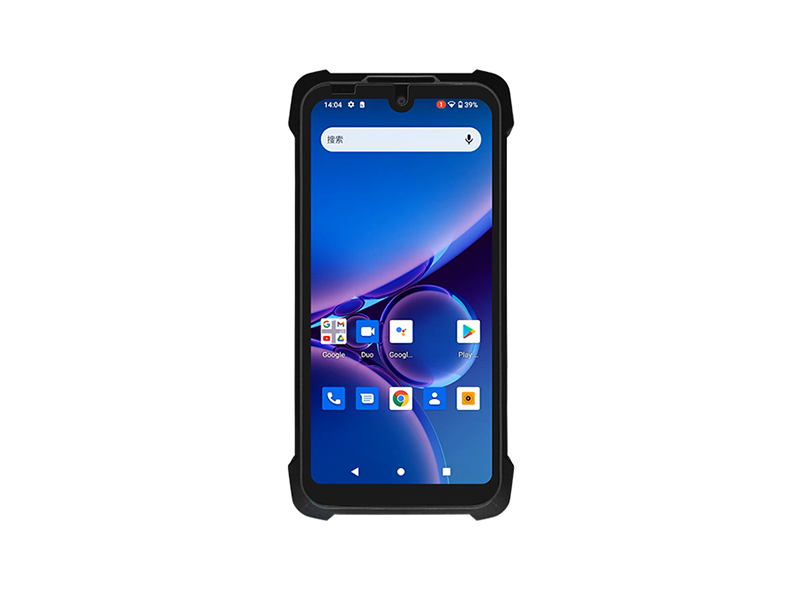

  The 5.7 – inch display has a resolution of 720×1520 and a brightness of 400nits. This provides clear visuals in different lighting conditions, making it suitable for both indoor and outdoor use.
• Touch:
  Supports 5 – point touch and stylus input, enabling precise operation. Whether it’s for data entry, navigating through applications, or interacting with touch – based content, the touchscreen offers a responsive and accurate experience.

Power & Mobility

• Battery:
  • Equipped with a 4000mAh (3.8V, 15.2Wh) battery. While the charging time and exact usage time aren’t specified in detail, it provides sufficient power for extended use in the field.
• Design:

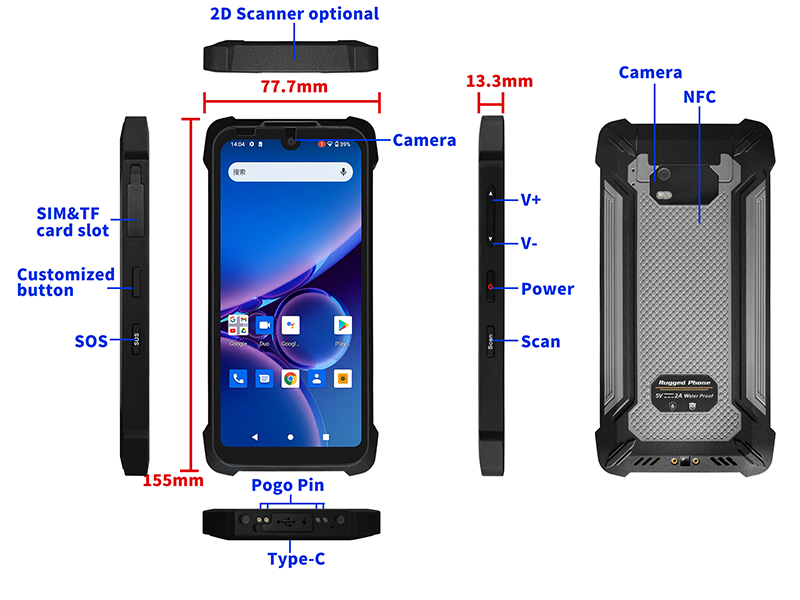

  Compact and lightweight, measuring 155×77.7×13.3mm and weighing 230±20g. Its portable design makes it easy to carry around, fitting comfortably in a pocket or on a work belt for mobile workers.

Connectivity & Expansion

• Wireless:
  • WWAN: Supports 4G LTE, 3G WCDMA, and GSM networks, covering a wide range of frequency bands (FDD – LTE, TDD – LTE, WCDMA, GSM). This ensures reliable mobile connectivity across different regions, allowing for seamless communication and data transfer.
  • WiFi: 802.11a/b/g/n/ac wireless technology with 2.4G and 5G support enables high – speed wireless networking. It allows users to connect to local networks or create a mobile access point for other devices.
  • Bluetooth 5.0: Allows for seamless pairing with other devices, such as headphones, speakers, or external keyboards.
  • GPS: Incorporates BDS, GPS, and GLONASS, providing accurate positioning for applications like asset tracking, navigation, and location – based services.
  • NFC: 13.56 MHz enables contactless data transfer and identification, useful for access control and payment – related tasks.
• Wired Interfaces:
  • 1×Type – C (supporting OTG) and either 2×SIM card slots or a SIM + TF card slot.
  • Bottom pogopin connectors offer additional connectivity options for accessories or docking stations.

Durability & Certification

• Rugged Build:
  • IP65 – rated for dustproof and waterproof protection, and can withstand drops of up to 1.5 meters. This makes it suitable for use in harsh industrial environments, construction sites, and outdoor settings.
  • Operating Temperature: -25°C to 50°C; Storage Temperature: -40°C to 60°C, ensuring reliable performance across a wide range of temperatures.
• Certifications:
  Complies with MIL – STD – 810G, ISO – 9001, and has CE, FCC, 3C certifications, guaranteeing its quality, reliability, and safety.

Multimedia & Customization

• Cameras:
  • Front: 5MP camera for video conferencing and self – documentation.

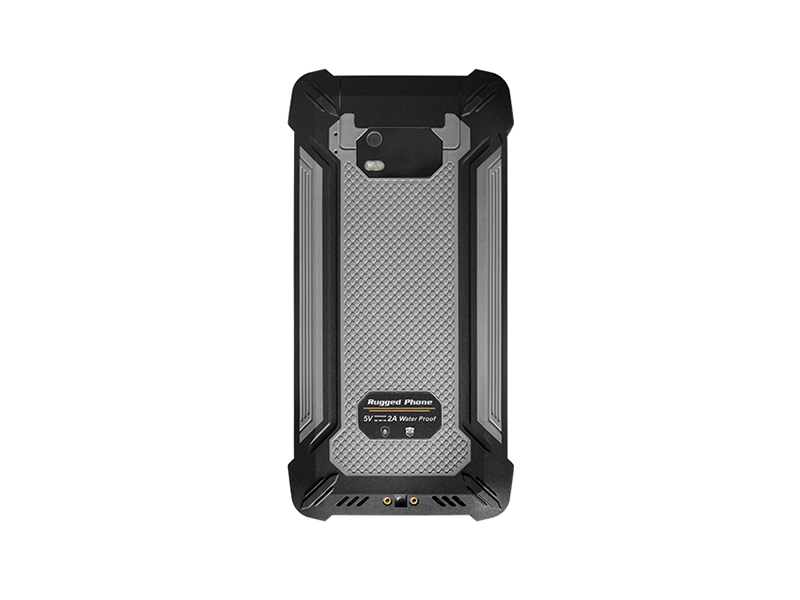

  • Rear: 13MP camera with a flash, suitable for barcode scanning (with optional NLS – N1 scanner), inspection, and general photography.
• Audio:
  An 8Ω 1.0 – watt speaker ensures clear audio for communication and media playback.
• Optional Features:
  • 1D/2D barcode scanner (NLS – N1 optional) can be added for specialized industrial applications, such as inventory management.
  • Buttons like V + -, Power, SOS, Scan, and customized buttons offer additional functionality that can be tailored to specific user workflows.

Accessories & Applications

• Included:
  Comes with a box, a 5V 2A charger, and an ejection pin, providing the essential items for immediate use.
• Optional:
  Although not many optional accessories are explicitly listed, there may be additional accessories available in the market, such as protective cases or car mounts, to enhance the phone’s functionality and usability.
• Ideal For:
  Ideal for industries such as logistics, field service, and inventory management where durability, long – battery life, and Android compatibility are key requirements. Its rugged design, extensive connectivity, and multiple features make it a reliable choice for these applications.
