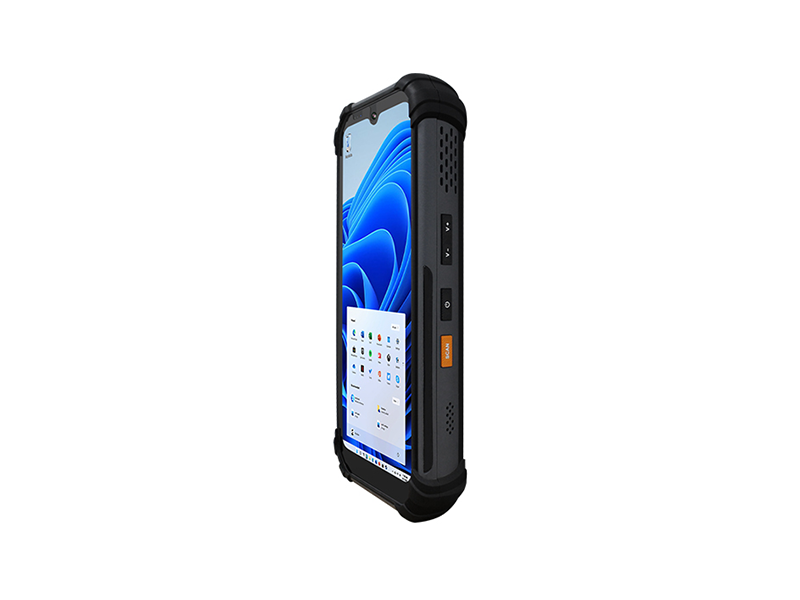

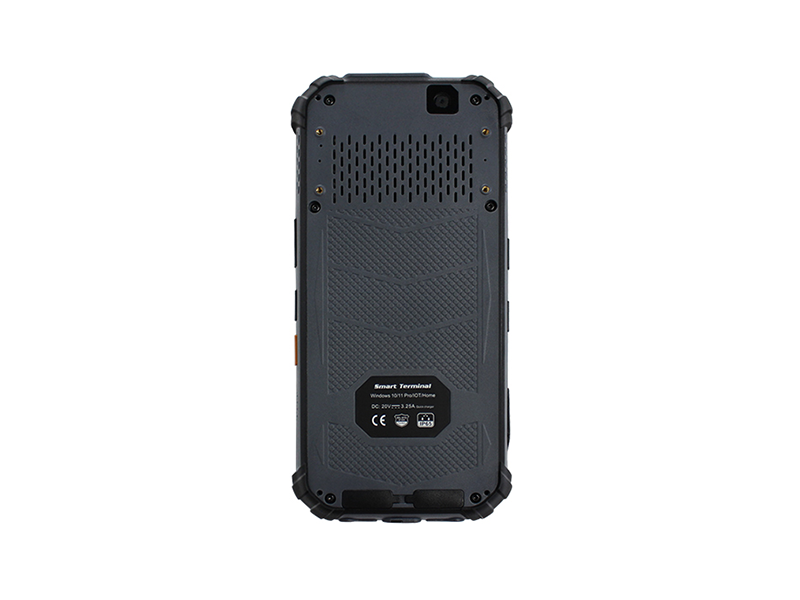

SINSOOLE SH6: A High – Performance and Durable Mobile Computer

Core Specifications & Performance

• Operating System:
  The SH6 offers great flexibility with its operating system options. It comes with Windows 11 Pro as the default, but users can also choose Windows 11 Home or Windows 11 Iot. Windows 11 Pro provides a secure and feature – rich platform for running a wide range of software, from enterprise – level applications to IoT – specific programs. The different editions allow users to select the one that best suits their usage scenarios, whether it’s for personal use, business operations, or IoT – related tasks.
• Processor:
  Powered by the Intel N100 quad – core, quad – threaded processor. With a base frequency of 1.8GHz that can turbo boost up to 3.4GHz, it provides efficient multitasking capabilities. This makes it suitable for running multiple applications simultaneously, handling data processing tasks, and ensuring smooth operation even in resource – intensive scenarios. For example, it can easily manage inventory management software while also running communication tools in the background.
• Graphics:
  Features the UHD Graphics (24 EUs), which can handle graphical tasks such as video playback, basic graphical user interfaces, and light – weight graphical applications with ease. It ensures a smooth visual experience for users, whether they are viewing product images, watching training videos, or using applications with graphical elements.
• Memory/Storage:
  • Base configuration: 8GB of RAM and 256GB of ROM.
  • Optional upgrade: 16GB of RAM and 512GB of ROM. This gives users the option to choose a setup that best suits their multitasking and storage needs. Those who need to run multiple applications simultaneously and store large amounts of data, such as high – resolution images or long – term project files, can opt for the 16GB/512GB configuration. Meanwhile, users with more basic requirements can choose the 8GB/256GB version.

Display & Interaction

• Screen:
  The 6.5 – inch display has a resolution of 720×1600 and a brightness of 380nits. This provides clear visuals in different lighting conditions, making it suitable for both indoor and outdoor use. The 10 – point touch screen allows for easy and precise interaction with the device, whether it’s for data entry, navigating through applications, or zooming in on maps and images.
• Touch:
  With 10 – point touch support, the SH6 enables users to perform various gestures and operations smoothly. It offers a responsive touch experience, allowing for quick and accurate input, which is essential for users who need to work efficiently in the field.

Power & Mobility

• Battery:
  • Equipped with a 5000mAh (7.6V) battery. It takes about 3 hours to charge fully with a 20W charger, and offers a usage time of 4.5 hours (at 50% volume, 60% brightness, playing local 1080P video). The quick – charge feature is convenient for users who need to top up the battery quickly during breaks or between tasks.
• Design:
  Compact and lightweight, measuring 180×85×22mm and weighing 460±20g. Its portable design makes it easy to carry around, whether in a pocket, a bag, or attached to a work belt. The device’s size and weight ensure that it doesn’t cause discomfort or inconvenience during long – term use in the field.

Connectivity & Expansion

• Wireless:
  • WWAN: Supports FDD – LTE, TDD – LTE, WCDMA, and GSM networks via the SLM770A module (EC25 – AUX in North America), ensuring reliable mobile connectivity across different regions. This allows users to stay connected and access data even in areas with varying network coverage.
  • WiFi 6: 802.11a/b/g/n/ac/ax wireless technology with 2.4G and 5G support (Intel® Wi – Fi 6 AX201 module), enabling high – speed wireless networking. Whether connecting to a local office network or creating a mobile access point for other devices, the SH6 provides fast and stable wireless connectivity.
  • Bluetooth 5.2: Allows for seamless pairing with other devices, such as headphones, speakers, or external keyboards. It also enables connection to Bluetooth – enabled sensors and peripherals, expanding the device’s functionality.
  • GPS: Incorporates BDS, GPS, and GLONASS, providing accurate positioning for applications like asset tracking, navigation, and location – based services. This is crucial for users who need to know their exact location in the field.
  • NFC: 13.56 MHz (ISO14443 TYPE A) enables contactless data transfer and identification, useful for access control and payment – related tasks. For example, it can be used to quickly access restricted areas or make payments in supported locations.
• Wired Interfaces:
  • 1×Type – C (full – featured and supporting 20W quick charge), 1×SIM card slot, 1×TF card slot, and 2×USB 3.0 ports.
  • Bottom pogopin (8PIN) connectors offer additional connectivity options for docking stations, which can be used to connect the device to larger displays, keyboards, or other accessories for a more desktop – like experience when needed.

Durability & Certification

• Rugged Build:
  • IP65 – rated for dustproof and waterproof protection, and can withstand drops of up to 1.2 meters. This makes it suitable for use in harsh industrial environments, construction sites, warehouses, and outdoor settings. It can endure the rigors of daily use in challenging conditions without compromising performance.
  • Operating Temperature: -20°C to 55°C; Storage Temperature: -25°C to 80°C, ensuring reliable performance across a wide range of temperatures. Whether working in a cold storage facility or in a hot outdoor environment, the SH6 can maintain its functionality.
• Certifications:
  Complies with MIL – STD – 810G, ISO – 9001, and has CE, FCC, 3C certifications, guaranteeing its quality, reliability, and safety. These certifications ensure that the device meets international standards for durability and performance.

Multimedia & Customization

• Cameras:
  • Front: 5MP camera for video conferencing and self – documentation. It can be used for video calls with colleagues or for taking quick self – portraits for identification purposes.
  • Rear: 8MP camera, suitable for barcode scanning (with optional NLS – N1, Zebra SE5500, Zebra SE4710, or SE655 (1D) scanners), inspection, and general photography. The rear camera can capture clear images for inventory management, quality control, or documenting work progress.
• Audio:
  An 8Ω 1.0 – watt speaker and a microphone with – 32±2d sensitivity and 2.2kΩx1 output impedance ensure clear audio for communication and media playback. Whether it’s for voice calls, listening to audio instructions, or playing multimedia content, the audio quality is reliable.
• Optional Features:
  • 1D/2D barcode scanner (multiple models available) can be added for specialized industrial applications, such as inventory management and logistics tracking.
  • Two customized buttons offer additional functionality that can be tailored to specific user workflows. For example, they can be programmed to quickly launch frequently used applications or perform specific tasks within an application.

Accessories & Applications

• Included:
  Comes with a blue box and a 20W charger, providing the essential items for immediate use.
• Optional:
  A docking station is available as an optional accessory. The docking station can enhance the device’s functionality by allowing it to be connected to multiple external devices, such as monitors, keyboards, and printers, transforming it into a more versatile workstation when needed.
• Ideal For:
  Ideal for industries such as logistics, field service, and inventory management where durability, Windows compatibility, and high – performance computing are key requirements. Its Windows – based system, rugged design, and extensive connectivity features make it a reliable choice for these applications.
